655114ESDRepresentative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 198 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- OBrake swing radius
- 156 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

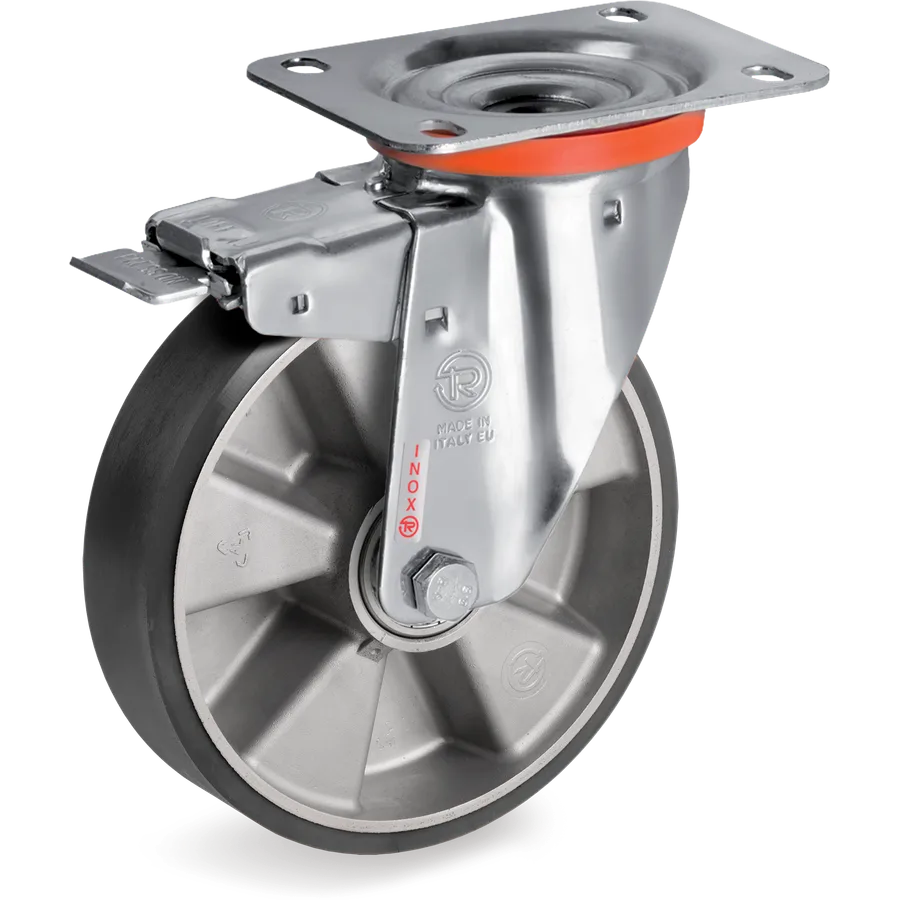

TR ESD polyurethane swivel castor Ø160×50 mm with brake
Antistatic TR ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
Tellure description: 65ESD 160X50 CCX SRP/NLX+FA R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 655114ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 198 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Antistatic TR ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 655101ESD | Ø80×25 mm | 170 daN | C/CX 2RS | Yes | 65ESD 80X25 CCX SRP/NLX+FA R1.0 |
| 655102ESD | Ø100×30 mm | 200 daN | C/CX 2RS | Yes | 65ESD 100X30 CCX SRP/NLX+FA R1.0 |
| 655103ESD | Ø125×35 mm | 220 daN | C/CX 2RS | Yes | 65ESD 125X35 CCX SRP/NLX+FA R1.0 |
| 655104ESD | Ø150×40 mm | 300 daN | C/CX 2RS | Yes | 65ESD 150X40 CCX SRP/NLX+FA R2.0 |
| 655114ESD | Ø160×50 mm | 300 daN | C/CX 2RS | Yes | This article |
| 655106ESD | Ø200×50 mm | 300 daN | C/CX 2RS | Yes | 65ESD 200X50 CCX SRP/NLX+FA R2.0 |
