624402ESDSeries 62ESDTR-Roll ESD polyurethane swivel castor Ø100×40 mm
Ruedas de poliuretano ESD "TR Roll", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina NL
Load capacity: 200 daN

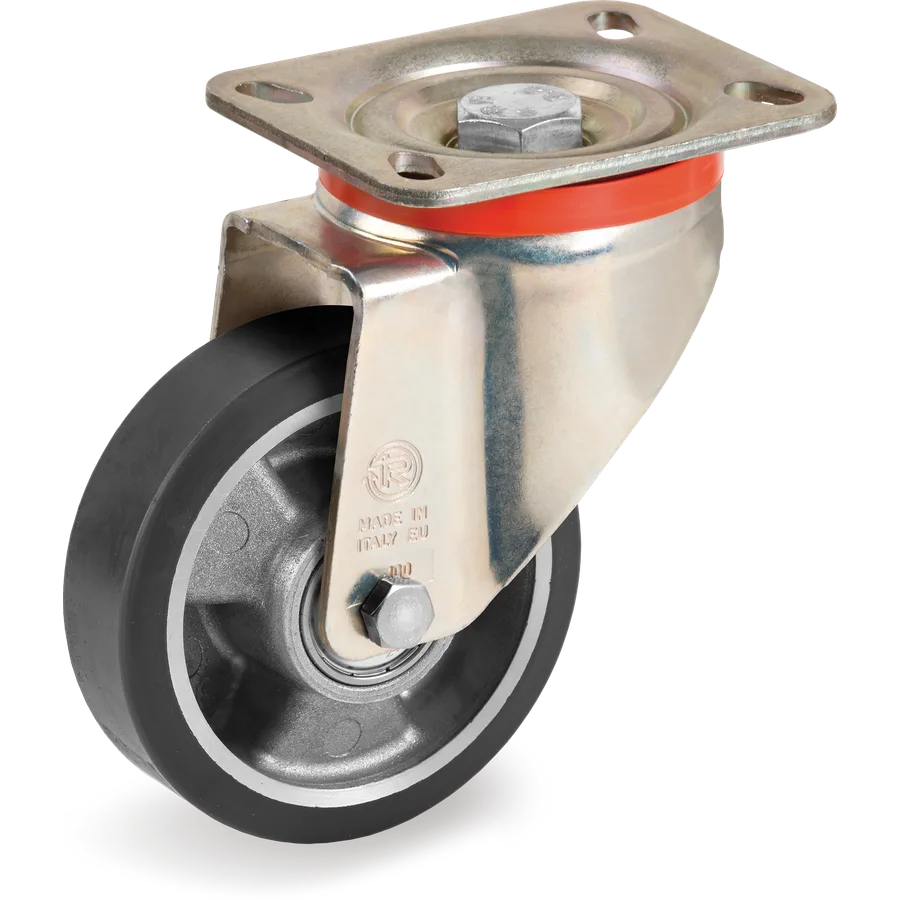

657602ESDRepresentative image of the familyTR ESD polyurethane swivel castor Ø100×30 mm
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina P
Tellure description: 65ESD 100X30 CC SRP/P R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 200daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 657602ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 200 daN
- Load at 6 km/h
- 160 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina P
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 657602ESD | Ø100×30 mm | 200 daN | C/C 2Z | No | This article |
| 657603ESD | Ø125×35 mm | 320 daN | C/C 2Z | No | 65ESD 125X35 CC SRP/P R1.0 |
| 657604ESD | Ø150×40 mm | 480 daN | C/C 2Z | No | 65ESD 150X40 CC SRP/P R2.0 |
| 657514ESD | Ø160×50 mm | 640 daN | C/C 2Z | No | 65ESD 160X50 CC SRP/P R2.0 |
| 657606ESD | Ø200×50 mm | 680 daN | C/C 2Z | No | 65ESD 200X50 CC SRP/P R2.0 |
Similar alternatives
- 624402ESDSeries 62ESD
656402ESDSeries 65ESDTR ESD polyurethane swivel castor Ø100×30 mm
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, , núcleo en aluminio, soporte giratorio taladro pasador NL
Load capacity: 200 daN
659302ESDSeries 65ESDTR ESD polyurethane swivel castor Ø100×30 mm
Ruedas de poliuretano ESD "TR", resistencia eléctrica < 10^9 Ohm, soporte giratorio pletina NL
Load capacity: 200 daN

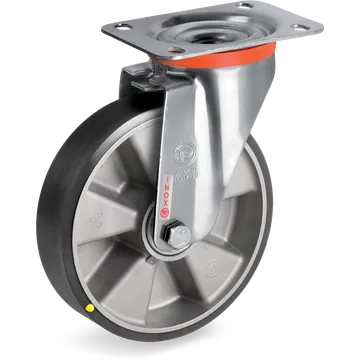

659632ESDSeries 65ESDTR ESD polyurethane swivel castor Ø100×30 mm
