658603ESDRepresentative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 35 mm
- HOverall height
- 161 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

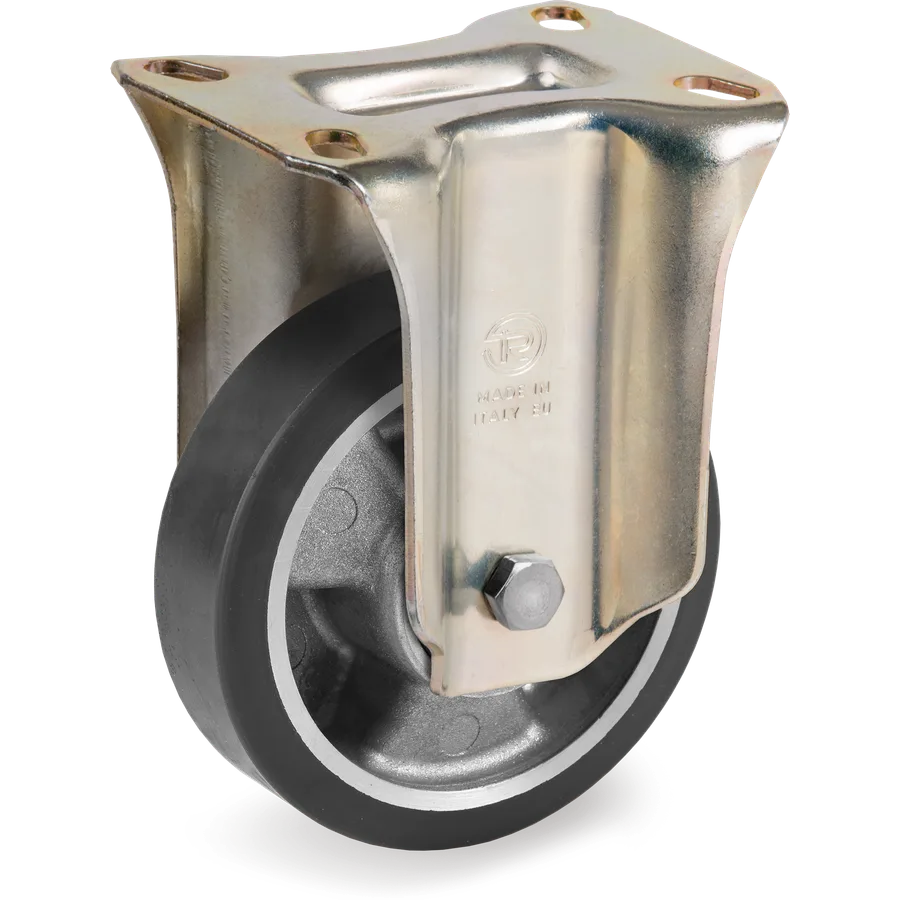

TR ESD polyurethane fixed castor Ø125×35 mm
Antistatic TR ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
Tellure description: 65ESD 125X35 CC SF/P R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 320daN
- Tread
- TR ESD polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 658603ESD
- Series
- Tellure Rôta 65ESD
- Tread
- TR ESD polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 320 daN
- Load at 6 km/h
- 250 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 161 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Antistatic TR ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 658602ESD | Ø100×30 mm | 200 daN | C/C 2Z | No | 65ESD 100X30 CC SF/P R1.0 |
| 658603ESD | Ø125×35 mm | 320 daN | C/C 2Z | No | This article |
| 658604ESD | Ø150×40 mm | 480 daN | C/C 2Z | No | 65ESD 150X40 CC SF/P-PT R2.0 |
| 658614ESD | Ø160×50 mm | 640 daN | C/C 2Z | No | 65ESD 160X50 CC SF/P-PT R2.0 |
| 658606ESD | Ø200×50 mm | 680 daN | C/C 2Z | No | 65ESD 200X50 CC SF/P-PT R2.0 |
Similar alternatives
- 628513ESDSeries 62ESD
626213ESDSeries 62ESDTR-Roll ESD polyurethane fixed castor Ø125×40 mm
Antistatic TR-Roll ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
Load capacity: 220 daN

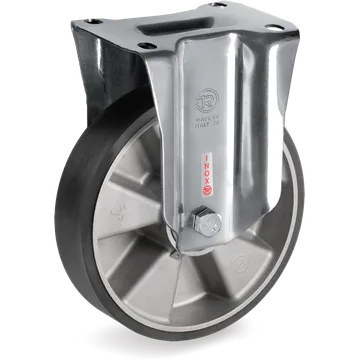

658203ESDSeries 65ESDTR ESD polyurethane fixed castor Ø125×35 mm
Antistatic TR ESD polyurethane wheels (< 10⁹ Ω), aluminium centre
Load capacity: 220 daN

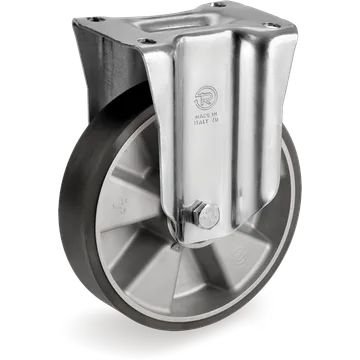

658333ESDSeries 65ESDTR ESD polyurethane fixed castor Ø125×35 mm
