235206Series 23Rubber swivel castor Ø200×50 mm with brake
Grey non-marking standard rubber wheels, pressed-steel rims
Load capacity: 230 daN
053354Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 240 mm
- A×BTop plate (outside)
- 134 × 109 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- OBrake swing radius
- 156 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

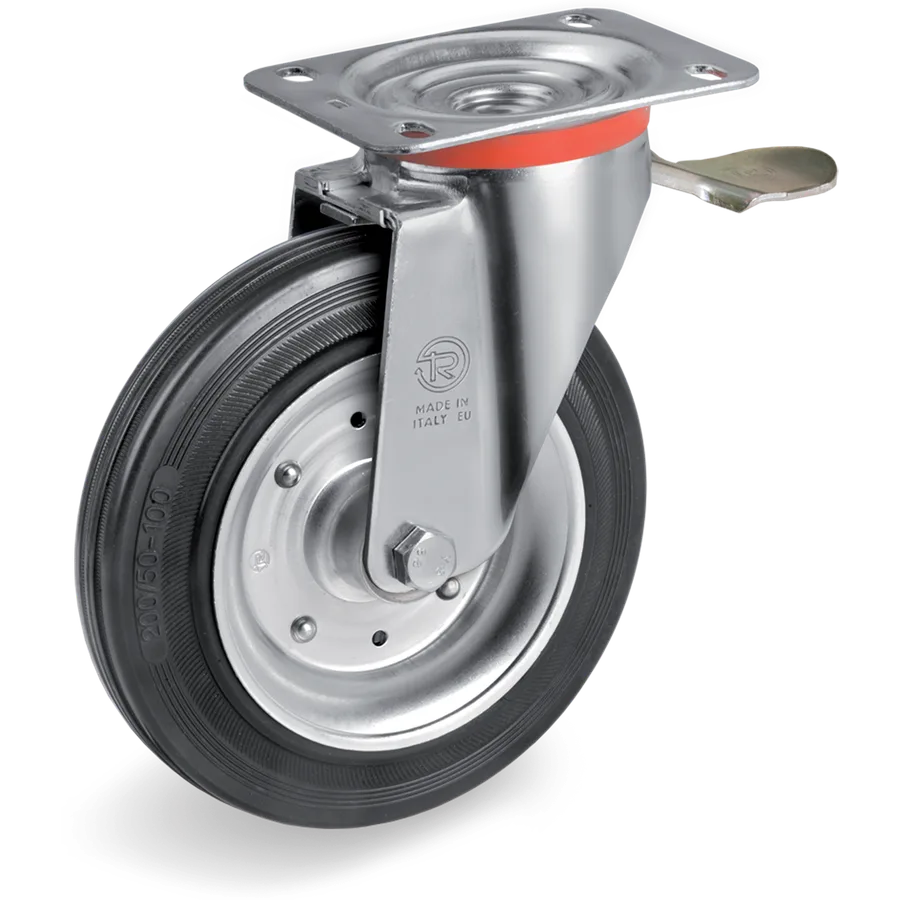

Rubber swivel castor Ø200×50 mm with brake
Standard rubber wheels, twin pressed-steel rim centre
Tellure description: 53 200X50 C/B SRP/NL 2011 FR.POST
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 230daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 053354
- Series
- Tellure Rôta 53
- Tread
- Rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 230 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 240 mm
- Top plate (A × B)
- 134 × 109 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
