224401Representative image of the familyRubber swivel castor Ø80×25 mm
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio pletina NL
Tellure description: 22 80X25 CB SRP/NL R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 25mm
- Load at 4 km/h
- 65daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 224401
- Series
- Tellure Rôta 22
- Tread
- Rubber
- Diameter (D)
- 80 mm
- Width (F)
- 25 mm
- Load at 4 km/h
- 65 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en goma antihuella, núcleo en polipropileno, soporte giratorio pletina NL
15 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 224401 | Ø80×25 mm | 65 daN | C/B | No | This article |
| 224601 | Ø80×25 mm | 65 daN | C/R | No | 22 80X25 CR SRP/NL R1.0 |
| 224402 | Ø100×30 mm | 80 daN | C/B | No | 22 100X30 CB SRP/NL R1.0 |
| 224602 | Ø100×30 mm | 80 daN | C/R | No | 22 100X30 CR SRP/NL R1.0 |
| 224403 | Ø125×37.5 mm | 110 daN | C/B | No | 22 125X37,5 CB SRP/NL R1.0 |
| 224603 | Ø125×37.5 mm | 110 daN | C/R | No | 22 125X37,5 CR SRP/NL R1.0 |
| 224404 | Ø140×37.5 mm | 120 daN | C/B | No | 22 140X37,5 CB SRP/NL R1.0 |
| 224604 | Ø140×37.5 mm | 120 daN | C/R | No | 22 140X37,5 CR SRP/NL R1.0 |
| 224411 | Ø150×40 mm | 130 daN | C/B | No | 22 150X40 CB SRP/NL R1.0 |
| 224611 | Ø150×40 mm | 130 daN | C/R | No | 22 150X40 CR SRP/NL R1.0 |
| 224410 | Ø160×40 mm | 150 daN | C/B | No | 22 160X40 CB SRP/NL R2.0 |
| 224610 | Ø160×40 mm | 150 daN | C/R | No | 22 160X40 CR SRP/NL R2.0 |
| 224405 | Ø180×45 mm | 180 daN | C/B | No | 22 180X45 CB SRP/NL R2.0 |
| 224406 | Ø200×50 mm | 225 daN | C/B | No | 22 200X50 CB SRP/NL R2.0 |
| 224606 | Ø200×50 mm | 225 daN | C/R | No | 22 200X50 CR SRP/NL R2.0 |
Similar alternatives
- 227701Series 22

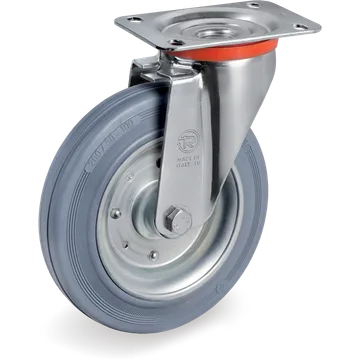

234401Series 23Rubber swivel castor Ø80×25 mm
