235701Series 23Rubber fixed castor Ø80×25 mm
Grey non-marking standard rubber wheels, pressed-steel rims
Load capacity: 65 daN
225901Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 25 mm
- HOverall height
- 107 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

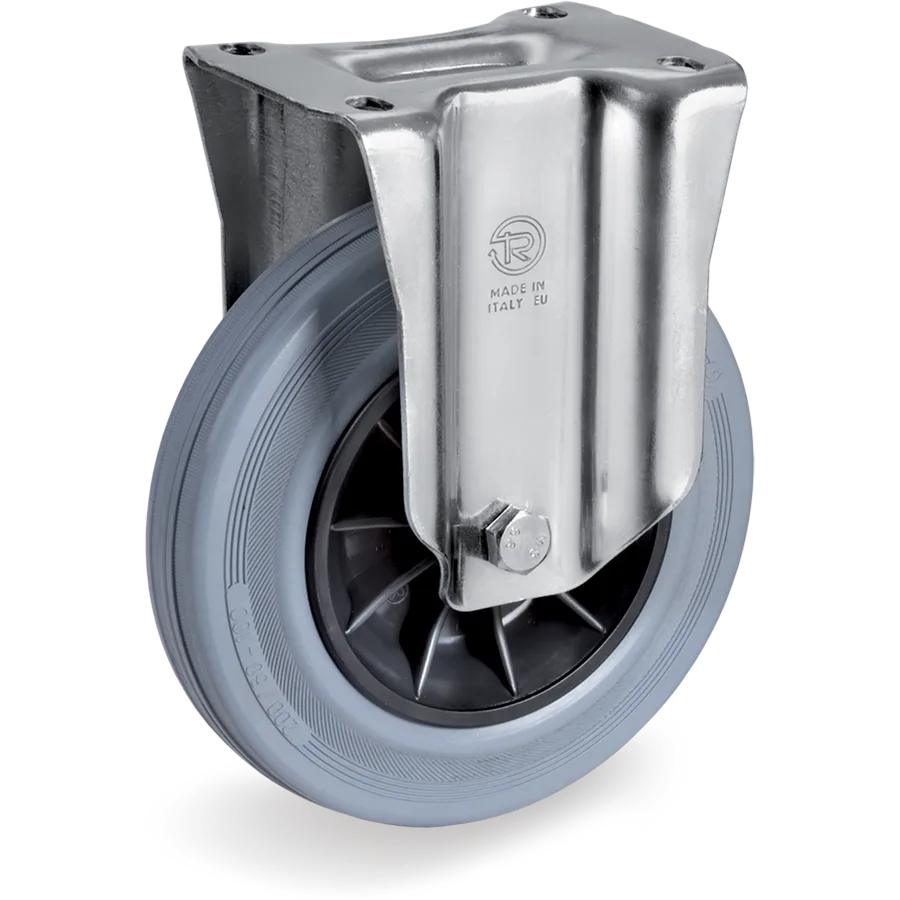

Rubber fixed castor Ø80×25 mm
Grey standard rubber wheels, polypropylene centre
Tellure description: 22 80X25 CR SF/NL R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 25mm
- Load at 4 km/h
- 65daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 225901
- Series
- Tellure Rôta 22
- Tread
- Rubber
- Diameter (D)
- 80 mm
- Width (F)
- 25 mm
- Load at 4 km/h
- 65 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 107 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Grey standard rubber wheels, polypropylene centre
15 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 225701 | Ø80×25 mm | 65 daN | C/B | No | 22 80X25 CB SF/NL R1.0 |
| 225901 | Ø80×25 mm | 65 daN | C/R | No | This article |
| 225702 | Ø100×30 mm | 80 daN | C/B | No | 22 100X30 CB SF/NL R1.0 |
| 225902 | Ø100×30 mm | 80 daN | C/R | No | 22 100X30 CR SF/NL R1.0 |
| 225703 | Ø125×37.5 mm | 110 daN | C/B | No | 22 125X37,5 CB SF/NL R1.0 |
| 225903 | Ø125×37.5 mm | 110 daN | C/R | No | 22 125X37,5 CR SF/NL R1.0 |
| 225704 | Ø140×37.5 mm | 120 daN | C/B | No | 22 140X37,5 CB SF/NL R1.0 |
| 225904 | Ø140×37.5 mm | 120 daN | C/R | No | 22 140X37,5 CR GG SF/NL R1.0 |
| 225711 | Ø150×40 mm | 130 daN | C/B | No | 22 150X40 CB SF/NL R1.0 |
| 225911 | Ø150×40 mm | 130 daN | C/R | No | 22 150X40 CR GG SF/NL R1.0 |
| 225710 | Ø160×40 mm | 150 daN | C/B | No | 22 160X40 CB SF/NL R2.0 |
| 225910 | Ø160×40 mm | 150 daN | C/R | No | 22 160X40 CR GG SF/NL R2.0 |
| 225705 | Ø180×45 mm | 180 daN | C/B | No | 22 180X45 CB SF/NL R2.0 |
| 225706 | Ø200×50 mm | 225 daN | C/B | No | 22 200X50 CB SF/NL R2.0 |
| 225906 | Ø200×50 mm | 225 daN | C/R | No | 22 200X50 CR GG SF/NL R2.0 |
Similar alternatives

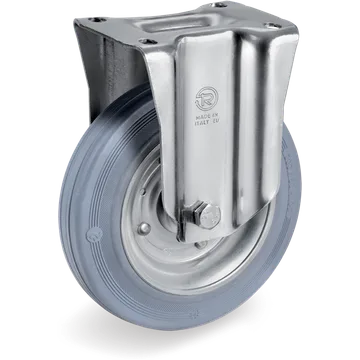

- 235701Series 23

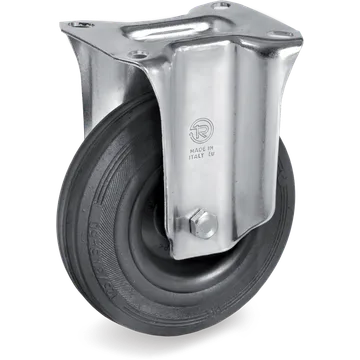

525701Series 52

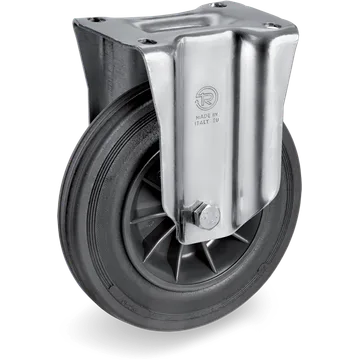

526001Series 52

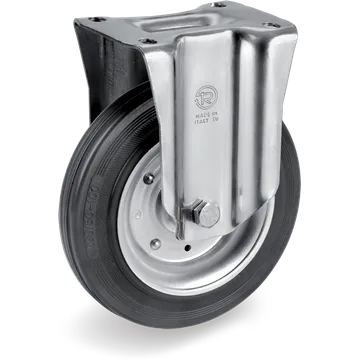

535701Series 53Rubber fixed castor Ø80×25 mm
