225206Series 22Rubber swivel castor Ø200×50 mm with brake
Grey standard rubber wheels, polypropylene centre
Load capacity: 225 daN
524206Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 240 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- SWHex spanner size
- 11 mm
- EXHHexagon across flats
- 17.5 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

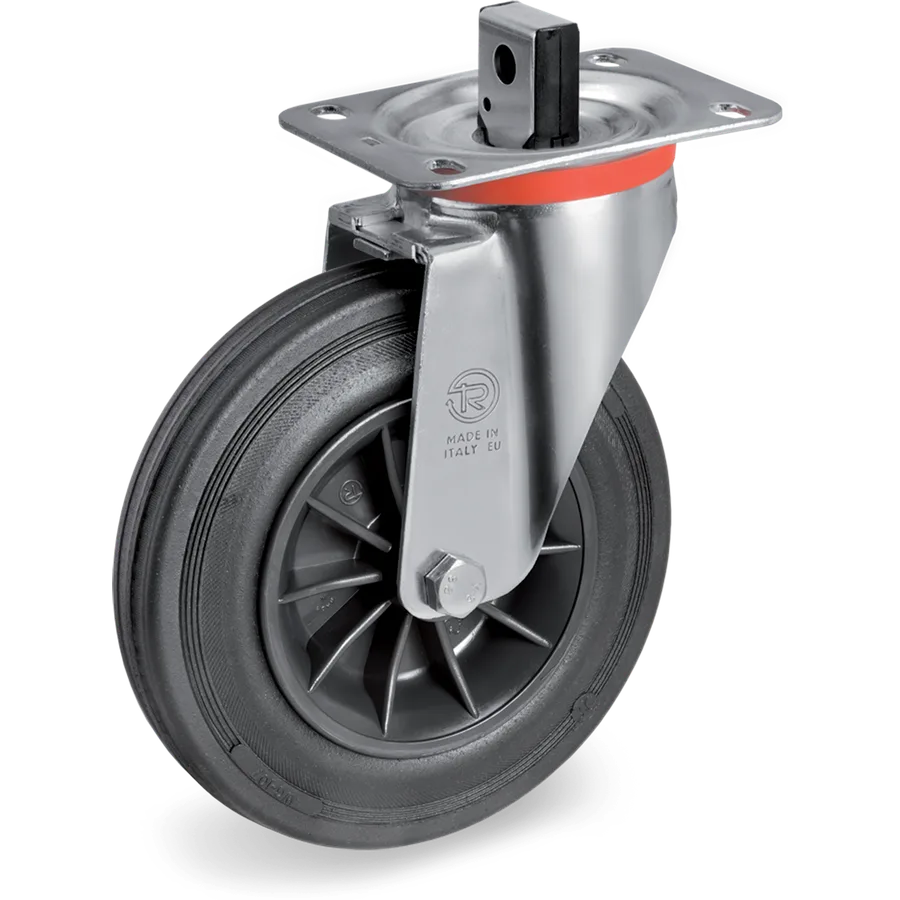

Rubber swivel castor Ø200×50 mm with brake
Standard rubber wheels, polypropylene centre
Tellure description: 52 200X50 CB SRP/NL+FE1 R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 225daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 524206
- Series
- Tellure Rôta 52
- Tread
- Rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 225 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 240 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Hexagonal brake
