225210Series 22Rubber swivel castor Ø160×40 mm with brake
Grey standard rubber wheels, polypropylene centre
Load capacity: 150 daN
525620Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 40 mm
- HOverall height
- 193 mm
- GPlate diameter
- 102 mm
- TPlain stem diameter
- 40 mm
- FSPlain stem length
- 86 mm
- ESwivel offset
- 56 mm
- OBrake swing radius
- 156 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

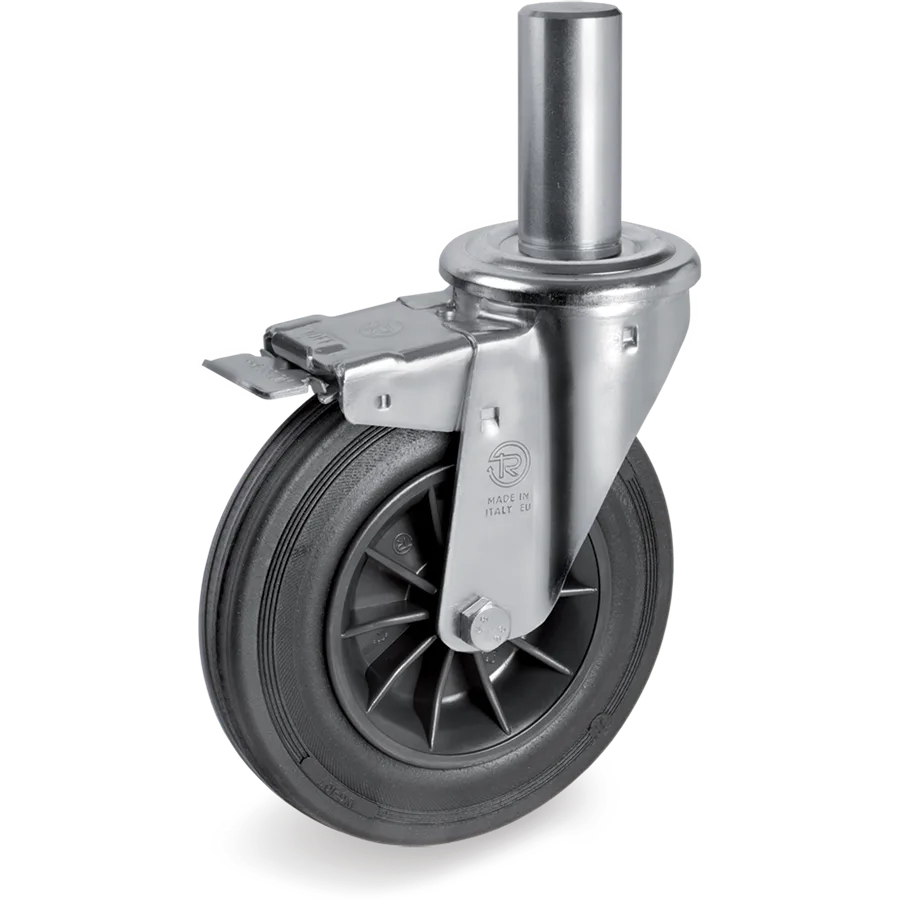

Rubber swivel castor Ø160×40 mm with brake
Standard rubber wheels, polypropylene centre
Tellure description: 52 160X40 CB SRC/INN NL 40X86+FA
- Diameter (D)
- Ø 160mm
- Width (F)
- 40mm
- Load at 4 km/h
- 150daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 525620
- Series
- Tellure Rôta 52
- Tread
- Rubber
- Diameter (D)
- 160 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 150 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 193 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Standard rubber wheels, polypropylene centre
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 529302 | Ø100×30 mm | 80 daN | C/B | Yes | 52 100X30 CB SRC/LIS NL 22X47+FA |
| 529303 | Ø125×37.5 mm | 110 daN | C/B | Yes | 52 125X37,5 CB SRC/LIS NL 22X47+FA |
| 529311 | Ø150×40 mm | 130 daN | C/B | Yes | 52 150X40 CB SRC/LIS NL 22X47+FA |
| 525620 | Ø160×40 mm | 150 daN | C/B | Yes | This article |
| 529310 | Ø160×40 mm | 150 daN | C/B | Yes | 52 160X40 CB SRC/LIS NL 26X56+FA |
| 525616 | Ø200×50 mm | 225 daN | C/B | Yes | 52 200X50 CB SRC/INN NL 40X86+FA |
| 529306 | Ø200×50 mm | 225 daN | C/B | Yes | 52 200X50 CB SRC/LIS NL 26X56+FA |
