224403Series 22Rubber swivel castor Ø125×37.5 mm
Grey standard rubber wheels, polypropylene centre
Load capacity: 110 daN

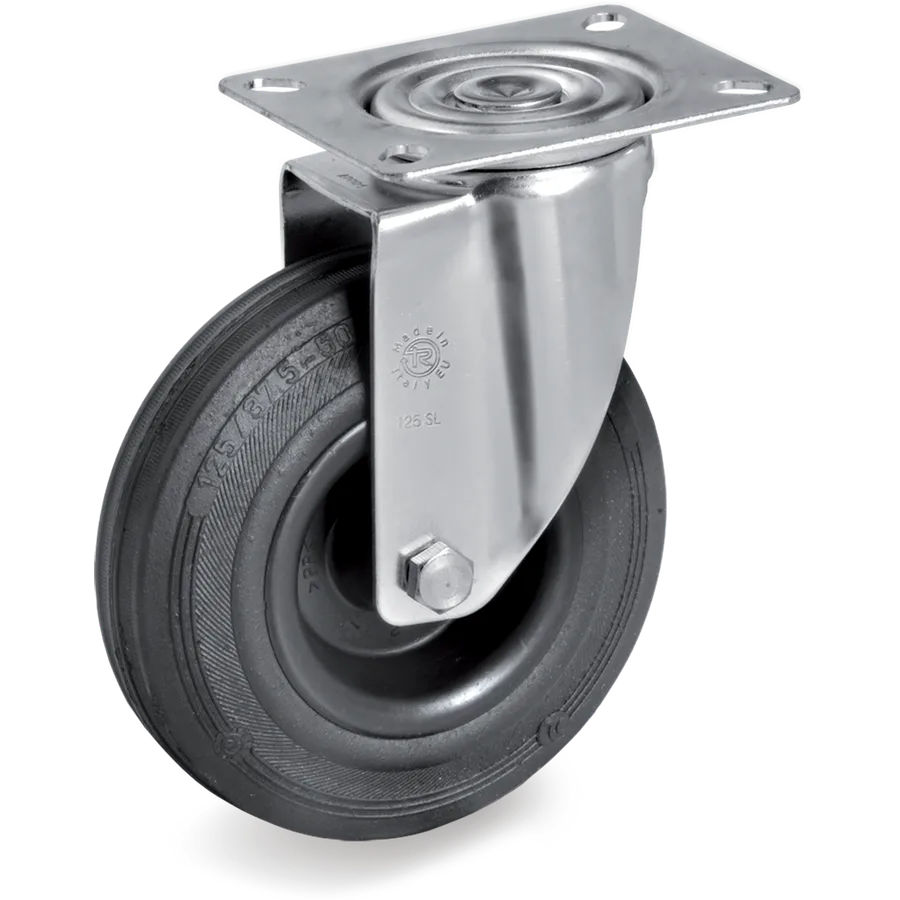

525803Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 37.5 mm
- HOverall height
- 154 mm
- A×BTop plate (outside)
- 95 × 80 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 8.8 mm
- ESwivel offset
- 32 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Rubber swivel castor Ø125×37.5 mm
Standard rubber wheels, polypropylene centre
Tellure description: 52 125X37,5 CB SRP/SL R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 37.5mm
- Load at 4 km/h
- 110daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 525803
- Series
- Tellure Rôta 52
- Tread
- Rubber
- Diameter (D)
- 125 mm
- Width (F)
- 37.5 mm
- Load at 4 km/h
- 110 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 154 mm
- Top plate (A × B)
- 95 × 80 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
