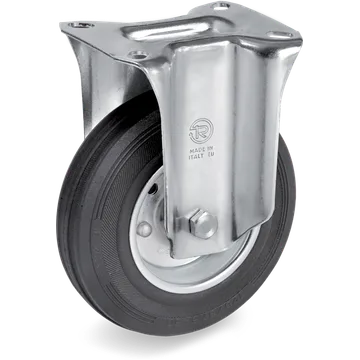

535903Representative image of the familyRubber fixed castor Ø125×37.5 mm
Ruedas en goma standard, núcleo formado por 2 llantas de chapa, soporte fijo NL
Tellure description: 53 125X37,5 CR SF/NL R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 37.5mm
- Load at 4 km/h
- 130daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 535903
- Series
- Tellure Rôta 53
- Tread
- Rubber
- Diameter (D)
- 125 mm
- Width (F)
- 37.5 mm
- Load at 4 km/h
- 130 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en goma standard, núcleo formado por 2 llantas de chapa, soporte fijo NL
24 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 535701 | Ø80×25 mm | 65 daN | C/B | No | 53 80X25 CB SF/NL R1.0 |
| 535901 | Ø80×25 mm | 65 daN | C/R | No | 53 80X25 CR SF/NL R1.0 |
| 535702 | Ø100×30 mm | 80 daN | C/B | No | 53 100X30 CB SF/NL R1.0 |
| 535902 | Ø100×30 mm | 80 daN | C/R | No | 53 100X30 CR SF/NL R1.0 |
| 535703 | Ø125×37.5 mm | 130 daN | C/B | No | 53 125X37,5 CB SF/NL R1.0 |
| 535903 | Ø125×37.5 mm | 130 daN | C/R | No | This article |
| 535704 | Ø140×37.5 mm | 150 daN | C/B | No | 53 140X37,5 CB SF/NL R1.0 |
| 535904 | Ø140×37.5 mm | 150 daN | C/R | No | 53 140X37,5 CR SF/NL R1,0 |
| 535711 | Ø150×40 mm | 170 daN | C/B | No | 53 150X40 CB SF/NL R1.0 |
| 535911 | Ø150×40 mm | 170 daN | C/R | No | 53 150X40 CR SF/NL R1.0 |
| 535710 | Ø160×40 mm | 180 daN | C/B | No | 53 160X40 CB SF/NL R2.0 |
| 535712 | Ø160×40 mm | 180 daN | C/B | No | 53 160X40 CB SF/NLL R1.0 |
| 535910 | Ø160×40 mm | 180 daN | C/R | No | 53 160X40 CR SF/NL R2.0 |
| 535912 | Ø160×40 mm | 180 daN | C/R | No | 53 160X40 CR SF/NLL R1.0 |
| 535705 | Ø180×45 mm | 200 daN | C/B | No | 53 180X45 CB SF/NL R2.0 |
| 535905 | Ø180×45 mm | 200 daN | C/R | No | 53 180X45 CR SF/NL R2.0 |
| 535706 | Ø200×50 mm | 230 daN | C/B | No | 53 200X50 CB SF/NL R2.0 |
| 535906 | Ø200×50 mm | 230 daN | C/R | No | 53 200X50 CR SF/NL R2.0 |
| 535707 | Ø225×50 mm | 250 daN | C/B | No | 53 225X50 CB SF/M R4.0 |
| 535907 | Ø225×50 mm | 250 daN | C/R | No | 53 225X50 CR SF/M R4.0 |
| 535708 | Ø250×60 mm | 300 daN | C/B | No | 53 250X60 CB SF/L-M R4.0 |
| 535908 | Ø250×60 mm | 300 daN | C/R | No | 53 250X60 SF/L-M R4.0 |
| 535709 | Ø280×60 mm | 390 daN | C/B | No | 53 280X60 CB SF/M R4.0 |
| 535909 | Ø280×60 mm | 390 daN | C/R | No | 53 280X60 CR SF/M R4.0 |
