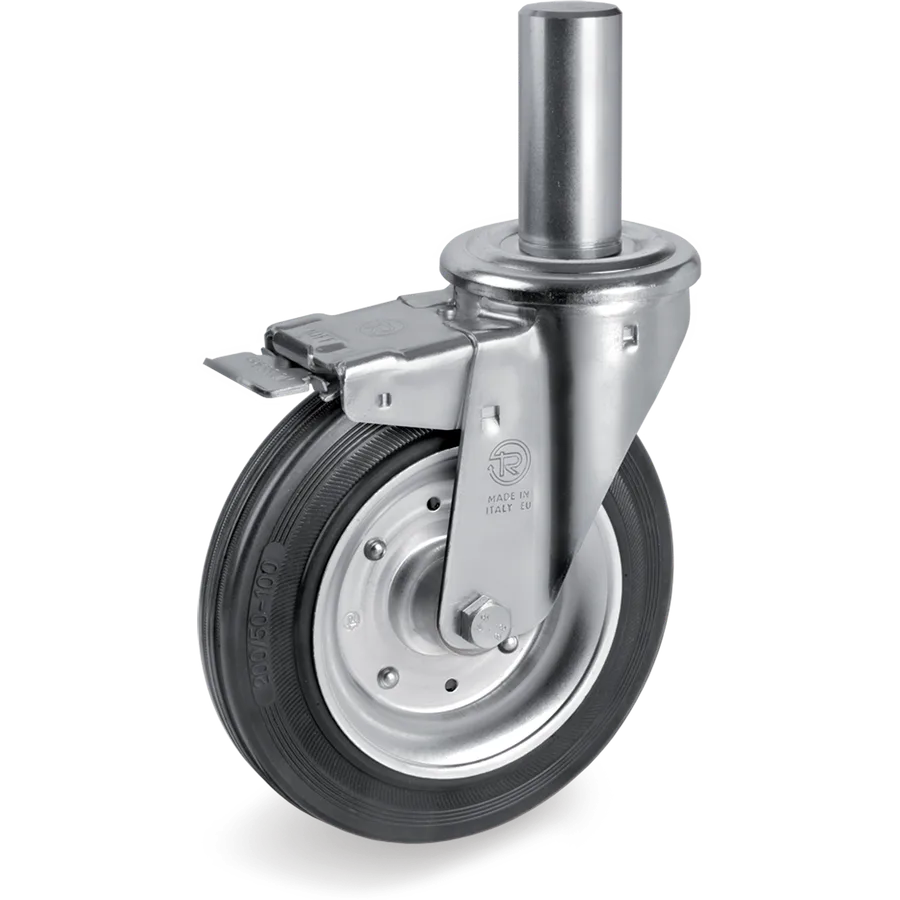

538803Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 37.5 mm
- HOverall height
- 156 mm
- GPlate diameter
- 73 mm
- TPlain stem diameter
- 22 mm
- FSPlain stem length
- 47 mm
- ESwivel offset
- 37 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Rubber swivel castor Ø125×37.5 mm with brake
Standard rubber wheels, twin pressed-steel rim centre
Tellure description: 53 125X37,5 CB SRC/LIS NL 22X47+FA
- Diameter (D)
- Ø 125mm
- Width (F)
- 37.5mm
- Load at 4 km/h
- 130daN
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 538803
- Series
- Tellure Rôta 53
- Tread
- Rubber
- Diameter (D)
- 125 mm
- Width (F)
- 37.5 mm
- Load at 4 km/h
- 130 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 156 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Standard rubber wheels, twin pressed-steel rim centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 538802 | Ø100×30 mm | 80 daN | C/B | Yes | 53 100X30 CB SRC/LIS NL 22X47+FA |
| 538803 | Ø125×37.5 mm | 130 daN | C/B | Yes | This article |
| 538811 | Ø150×40 mm | 170 daN | C/B | Yes | 53 150X40 CB SRC/LIS NL 22X47+FA |
| 538810 | Ø160×40 mm | 180 daN | C/B | Yes | 53 160X40 CB SRC/LIS NL 26X56+FA |
| 538806 | Ø200×50 mm | 230 daN | C/B | Yes | 53 200X50 CB SRC/LIS NL 26X56+FA |
