588852Series 58TR-PowerHigh polyurethane fixed castor Ø100×38 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo EP
Load capacity: 350 daN

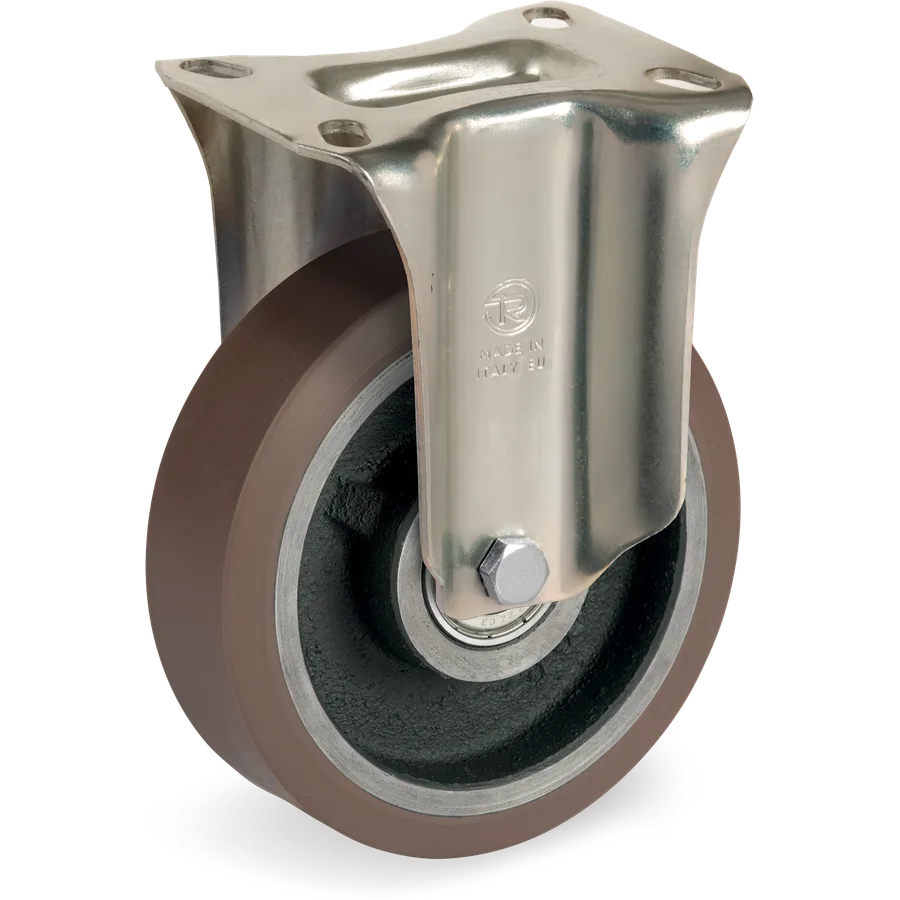

586852Representative image of the familyTR-PowerHigh polyurethane fixed castor Ø100×38 mm
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo P
Tellure description: 58GH 100X38 CC SF/P R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 38mm
- Load at 4 km/h
- 350daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 586852
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 38 mm
- Load at 4 km/h
- 350 daN
- Load at 6 km/h
- 350 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo P
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 586851 | Ø80×28 mm | 350 daN | C/C 2Z | No | 58GH 80X28 CC SF/P R1.0 |
| 586852 | Ø100×38 mm | 350 daN | C/C 2Z | No | This article |
| 586853 | Ø125×38 mm | 350 daN | C/C 2Z | No | 58GH 125X38 CC SF/P R1.0 |
| 586863 | Ø125×50 mm | 750 daN | C/C 2Z | No | 58GH 125X50 CC SF/PT R2.0 |
| 586854 | Ø150×50 mm | 900 daN | C/C 2Z | No | 58GH 150X50 CC SF/PT R2.0 |
| 586864 | Ø160×50 mm | 900 daN | C/C 2Z | No | 58GH 160X50 CC SF/PT R2.0 |
| 586856 | Ø200×50 mm | 900 daN | C/C 2Z | No | 58GH 200X50 CC SF/PT R2.0 |
