638622Series 63AC
588602Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 30 mm
- HOverall height
- 138 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

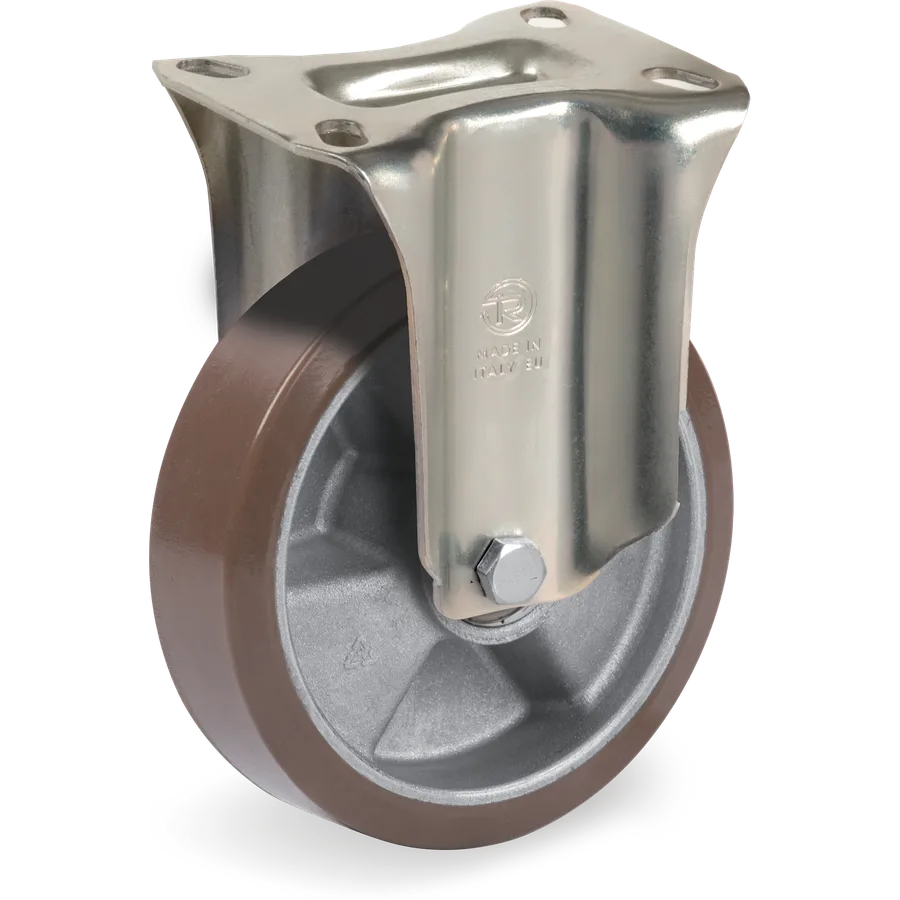

TR-PowerHigh polyurethane fixed castor Ø100×30 mm
TR-PowerHigh polyurethane wheels, aluminium centre
Tellure description: 58AL 100X30 CC SF/P R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 250daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588602
- Series
- Tellure Rôta 58AL
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 250 daN
- Load at 6 km/h
- 200 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 138 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
