585453Series 58TR-PowerHigh polyurethane swivel castor Ø125×38 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 220 daN

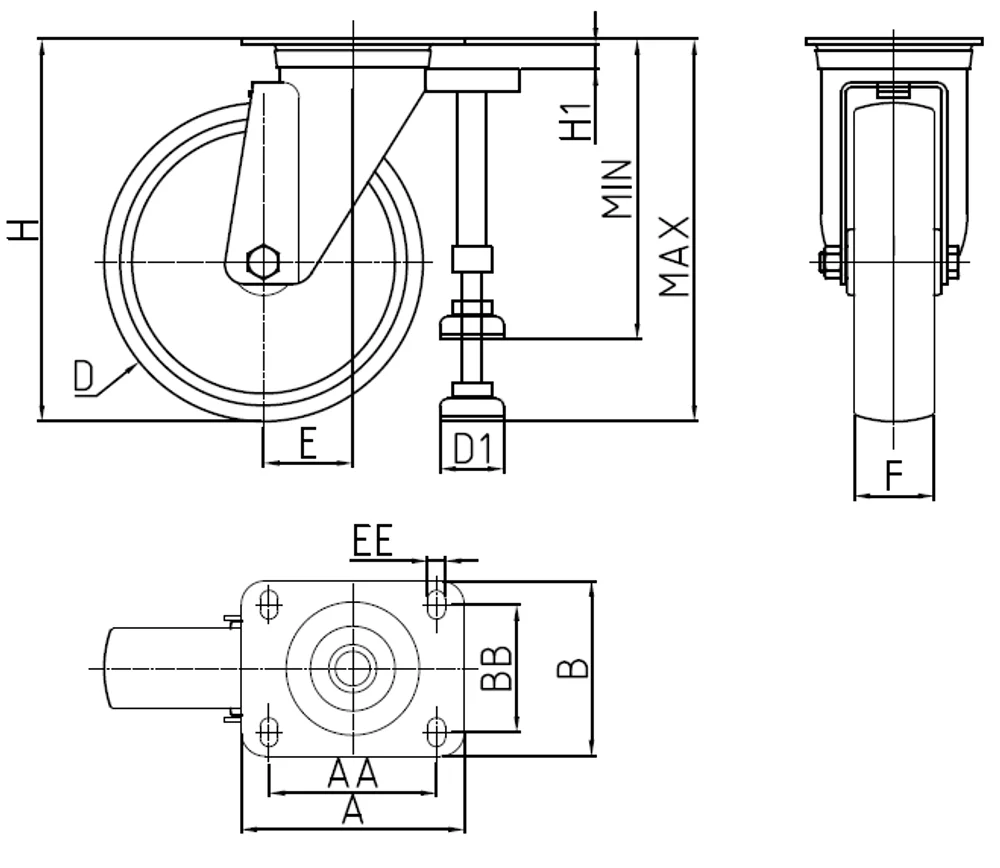

603803Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 35 mm
- HOverall height
- 156 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 37 mm
- MINLeveller minimum extension
- 150 mm
- MAXLeveller maximum extension
- 172 mm
- H1Bracket base to leveller base
- 20 mm
- D1Leveller foot diameter
- 32 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

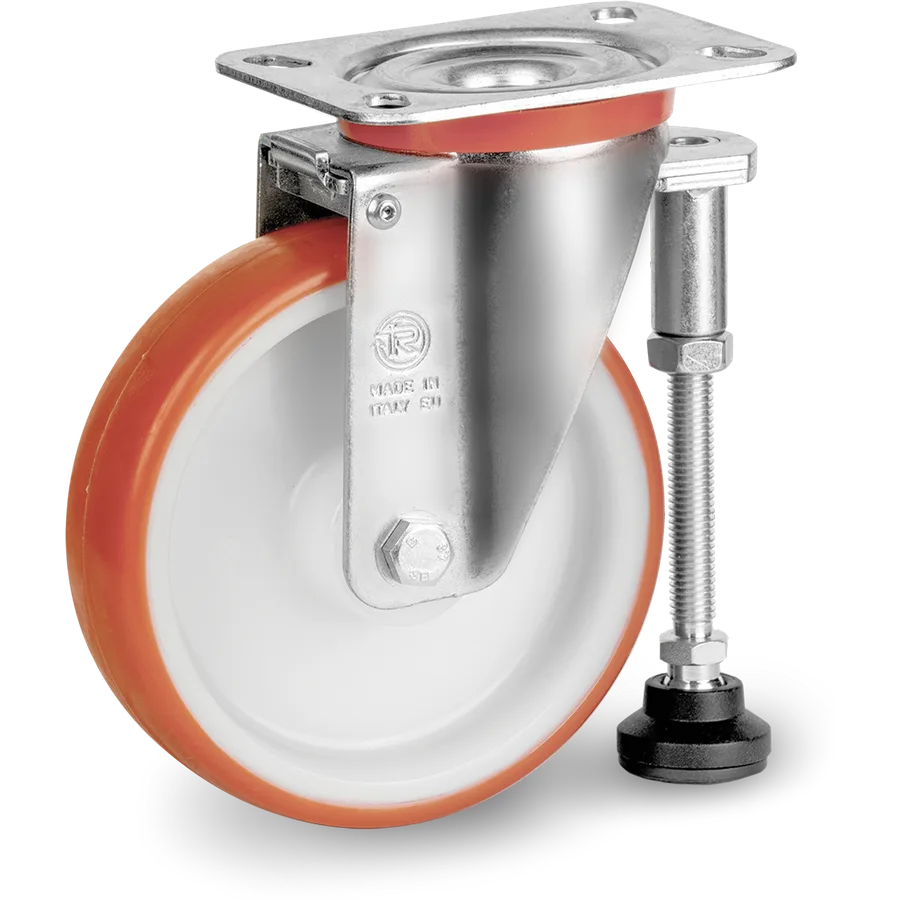

Thermoplastic polyurethane swivel castor Ø125×35 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 125X35 CB SRP/NL+PIEDINO R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 220daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 603803
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 156 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Foot brake
