584556Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 300 daN
606106Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 236 mm
- GPlate diameter
- 102 mm
- TPlain stem diameter
- 26 mm
- FSPlain stem length
- 56 mm
- ESwivel offset
- 56 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

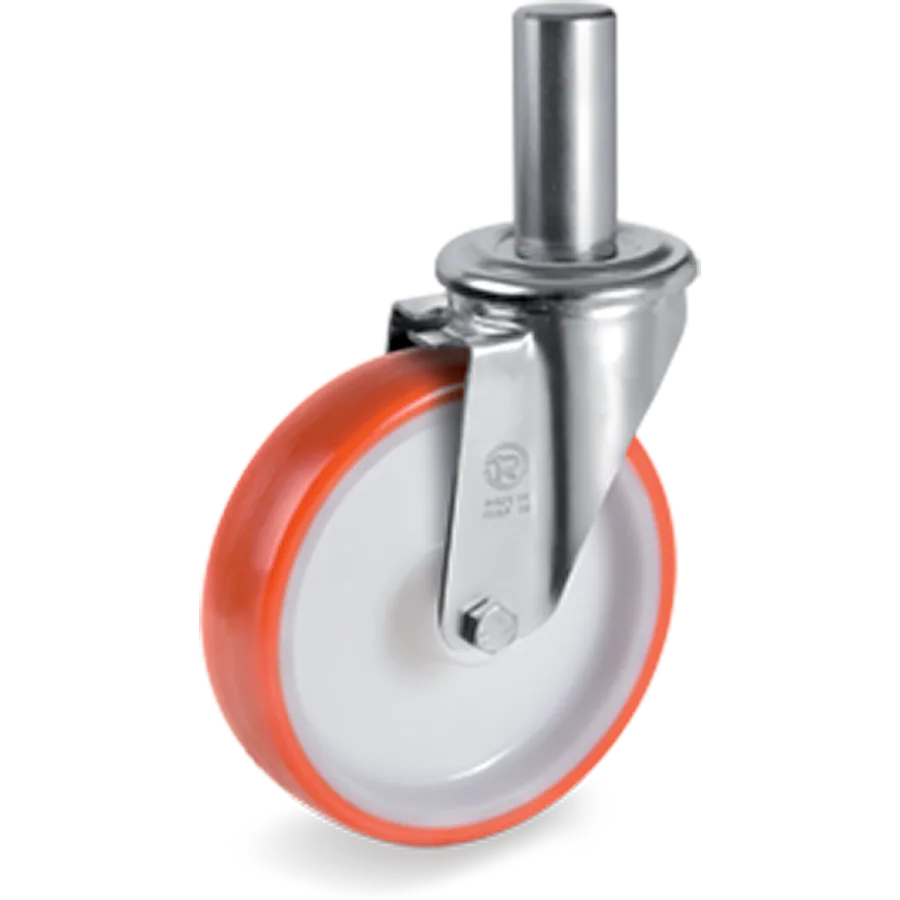

Thermoplastic polyurethane swivel castor Ø200×50 mm
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 200X50 CB SRC/LIS NL 26X56
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 606106
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 236 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Injected polyurethane wheels, polyamide 6 centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 606102 | Ø100×30 mm | 170 daN | C/B | No | 60 100X30 CB SRC/LIS NL 22X47 |
| 606103 | Ø125×35 mm | 220 daN | C/B | No | 60 125X35 CB SRC/LIS NL 22X47 |
| 606104 | Ø150×35 mm | 220 daN | C/B | No | 60 150X35 CB SRC/LIS NL 22X47 |
| 606111 | Ø150×45 mm | 300 daN | C/B | No | 60 150X45 CB SRC/LIS NL 26X56 |
| 606106 | Ø200×50 mm | 300 daN | C/B | No | This article |
