627633Series 62BSTR-Roll polyurethane swivel castor Ø125×35 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina P
Load capacity: 250 daN

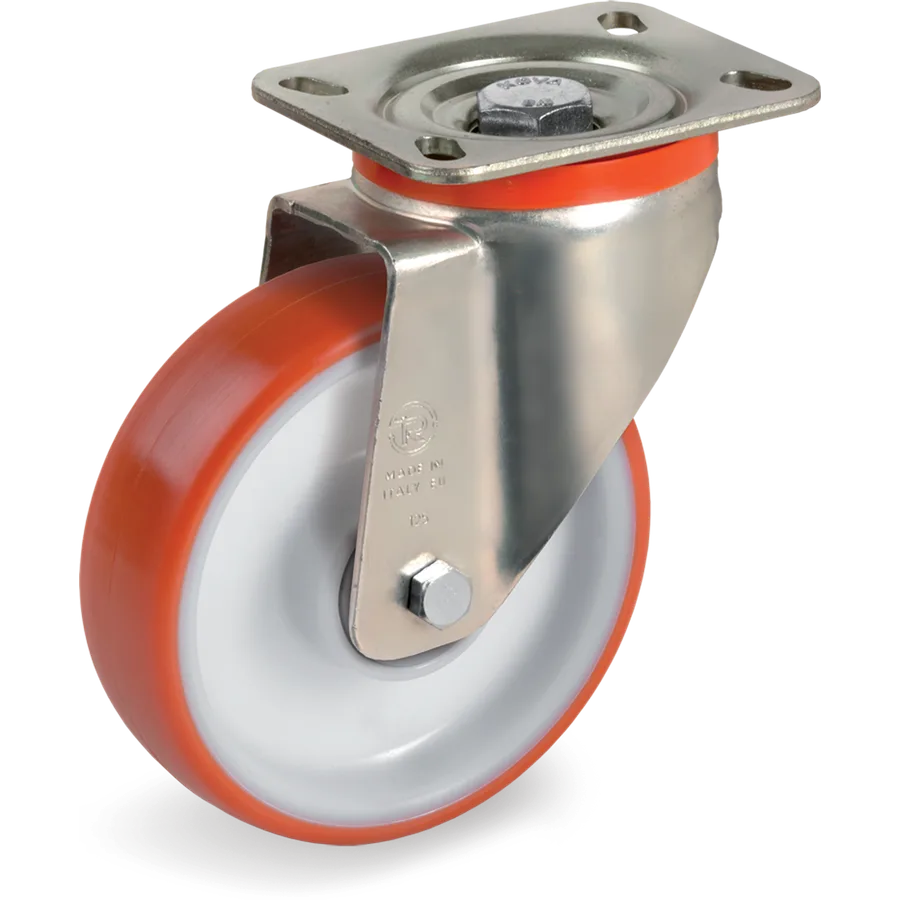

608203Representative image of the familyThermoplastic polyurethane swivel castor Ø125×35 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina P
Tellure description: 60 125X35 CC SRP/P R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 250daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 608203
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 250 daN
- Load at 6 km/h
- 200 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina P
14 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 607102 | Ø100×30 mm | 170 daN | C/B | No | 60 100X30 CB SRP/P R1.0 |
| 607302 | Ø100×30 mm | 170 daN | C/R | No | 60 100X30 CR SRP/P R1.0 |
| 608202 | Ø100×30 mm | 200 daN | C/C 2Z | No | 60 100X30 CC SRP/P R1.0 |
| 607103 | Ø125×35 mm | 230 daN | C/B | No | 60 125X35 CB SRP/P R1.0 |
| 607303 | Ø125×35 mm | 230 daN | C/R | No | 60 125X35 CR SRP/P R1.0 |
| 608203 | Ø125×35 mm | 250 daN | C/C 2Z | No | This article |
| 607504 | Ø150×45 mm | 350 daN | C/R | No | 60 150X45 CR SRP/P R2.0 |
| 607604 | Ø150×45 mm | 350 daN | C/B | No | 60 150X45 CB SRP/P R2.0 |
| 608211 | Ø150×45 mm | 350 daN | C/C 2Z | No | 60 150X45 CC SRP/P R2.0 |
| 608210 | Ø160×50 mm | 400 daN | C/C 2Z | No | 60 160X50 CC SRP/P R2.0 |
| 607506 | Ø200×50 mm | 450 daN | C/R | No | 60 200X50 CR SRP/P R2.0 |
| 607606 | Ø200×50 mm | 450 daN | C/B | No | 60 200X50 CB SRP/P R2.0 |
| 608206 | Ø200×50 mm | 450 daN | C/C 2Z | No | 60 200X50 CC SRP/P R2.0 |
| 608208 | Ø250×50 mm | 750 daN | C/C 2Z | No | 60 250X50 CC SRP/P R2.0 |
Similar alternatives
- 627633Series 62BS

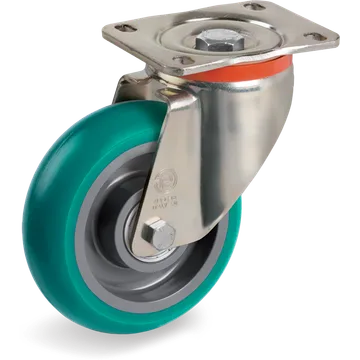

629313Series 62NYERTR-Roll polyurethane swivel castor Ø125×40 mm
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de poliamida 6, soportes giratorios tipo P
Load capacity: 250 daN

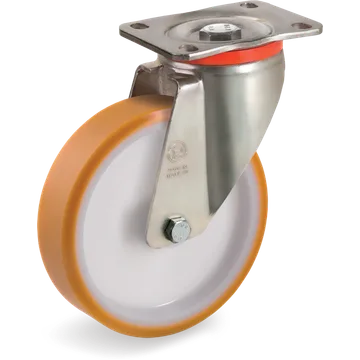

667103Series 66TR polyurethane swivel castor Ø125×30 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio pletina P
Load capacity: 250 daN

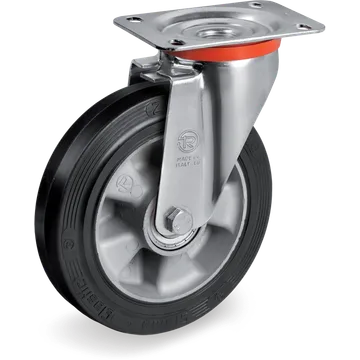

724413Series 72ALElastic rubber swivel castor Ø125×50 mm
