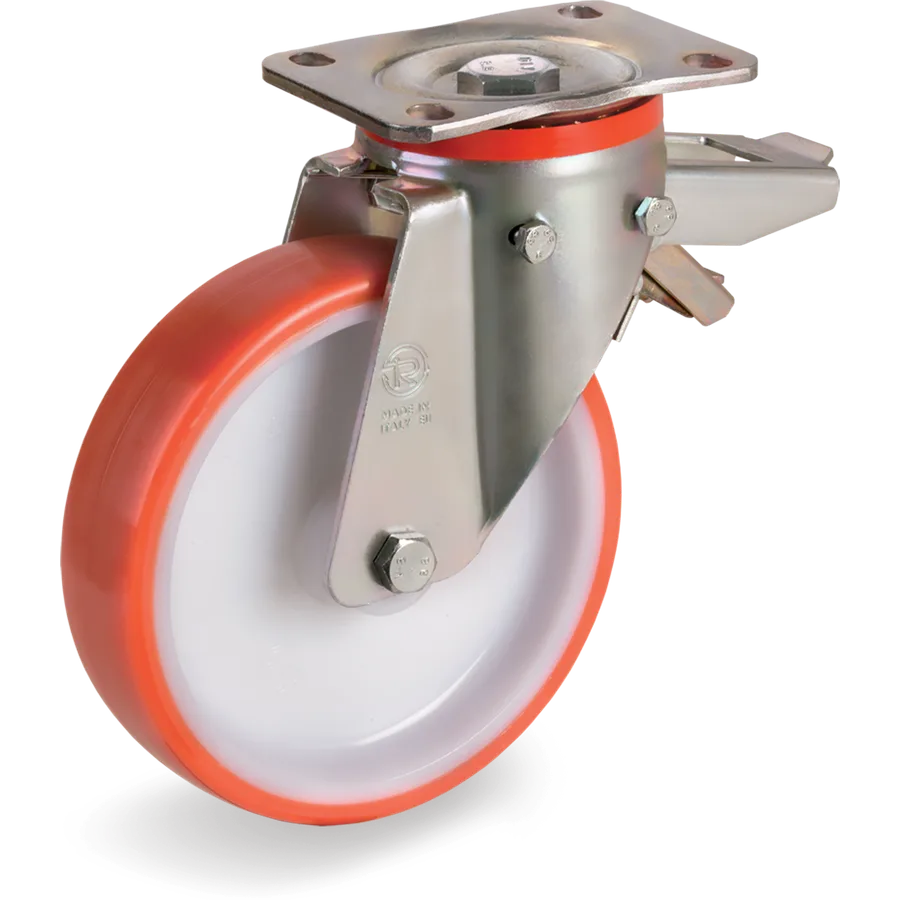

606806Series 60Thermoplastic polyurethane swivel castor Ø200×50 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 450 daN
609106Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 250 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
- OBrake swing radius
- 126 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic polyurethane swivel castor Ø200×50 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 200X50 CR SRP/P+FP R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 450daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 609106
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 450 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 250 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Injected polyurethane wheels, polyamide 6 centre
4 articles
Similar alternatives
- 606806Series 60

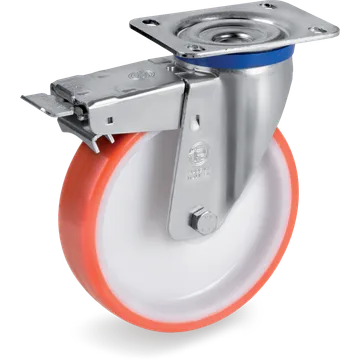

608246Series 60Thermoplastic polyurethane swivel castor Ø200×50 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 450 daN

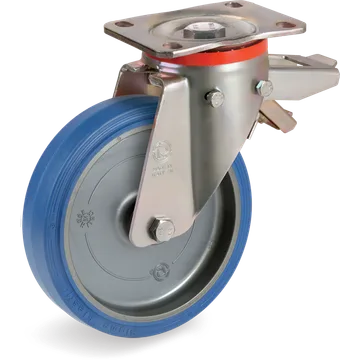

736206Series 73Elastic rubber swivel castor Ø200×50 mm with brake
Sigma Elastic rubber wheels, polyamide 6 centre
Load capacity: 450 daN

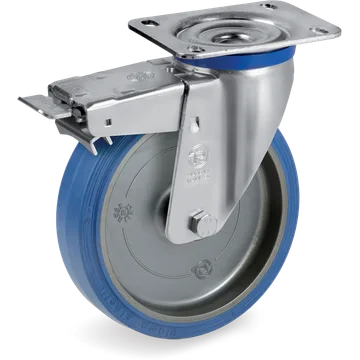

737606Series 73Elastic rubber swivel castor Ø200×50 mm with brake
