609301Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 30 mm
- HOverall height
- 109 mm
- GPlate diameter
- 73 mm
- TExpanding stem diameter
- 20 mm
- FSExpanding stem length
- 65 mm
- ESwivel offset
- 40 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

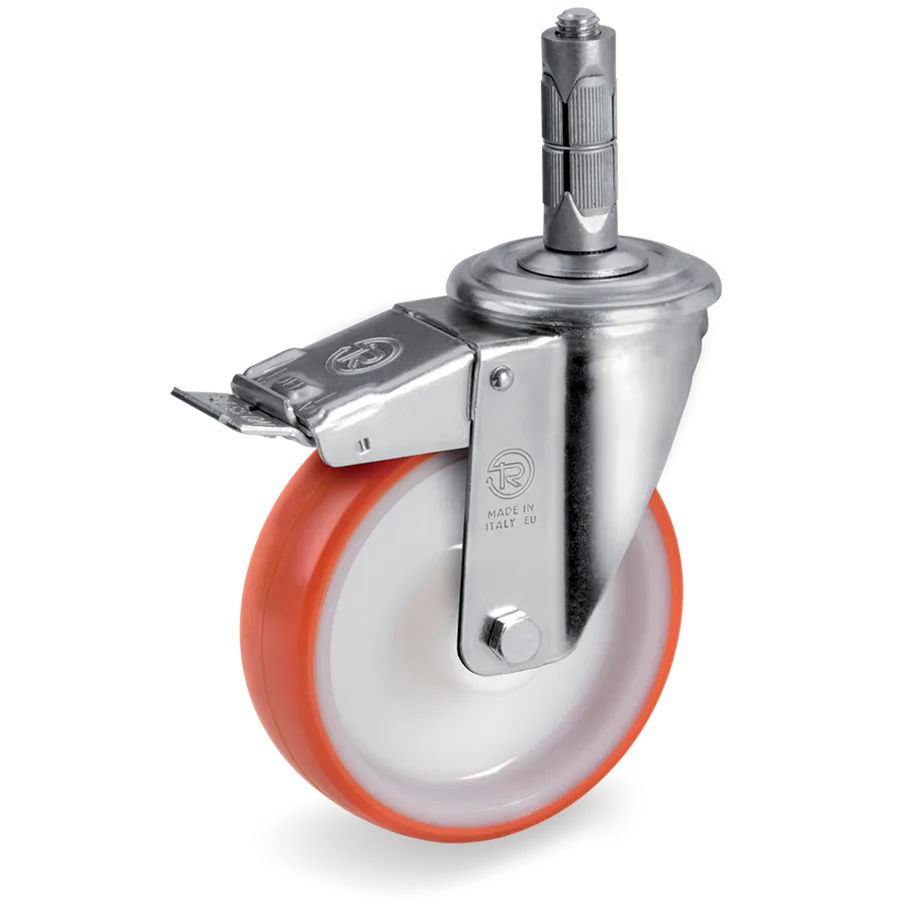

Thermoplastic polyurethane swivel castor Ø80×30 mm with brake
Injected polyurethane wheels, polyamide 6 centre
Tellure description: 60 80X30 CB SRC/ESP ZAMA NL 20X65+FA
- Diameter (D)
- Ø 80mm
- Width (F)
- 30mm
- Load at 4 km/h
- 120daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 609301
- Series
- Tellure Rôta 60
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 120 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 109 mm
- Fitting
- Expanding stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Injected polyurethane wheels, polyamide 6 centre
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 609301 | Ø80×30 mm | 120 daN | C/B | Yes | This article |
| 619301 | Ø80×30 mm | 75 daN | C/B | Yes | 61 80X30 CB SRC/ESP ZAMA NL 20X65+FA |
| 609302 | Ø100×30 mm | 130 daN | C/B | Yes | 60 100X30 CB SRC/ESP ZAMA NL 20X65+FA |
| 619302 | Ø100×30 mm | 120 daN | C/B | Yes | 61 100X30 CB SRC/ESP ZAMA NL 20X65+FA |
| 609303 | Ø125×35 mm | 130 daN | C/B | Yes | 60 125X35 CB SRC/ESP ZAMA NL 20X65+FA |
| 619303 | Ø125×35 mm | 130 daN | C/B | Yes | 61 125X35 CB SRC/ESP ZAMA NL 20X65+FA |
