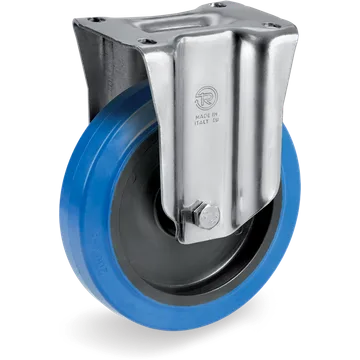

735103AESeries 73AEElastic rubber fixed castor Ø125×36 mm
Ruedas en goma elastica antihuella, núcleo en poliamida 6, soporte fijo NL
Load capacity: 200 daN

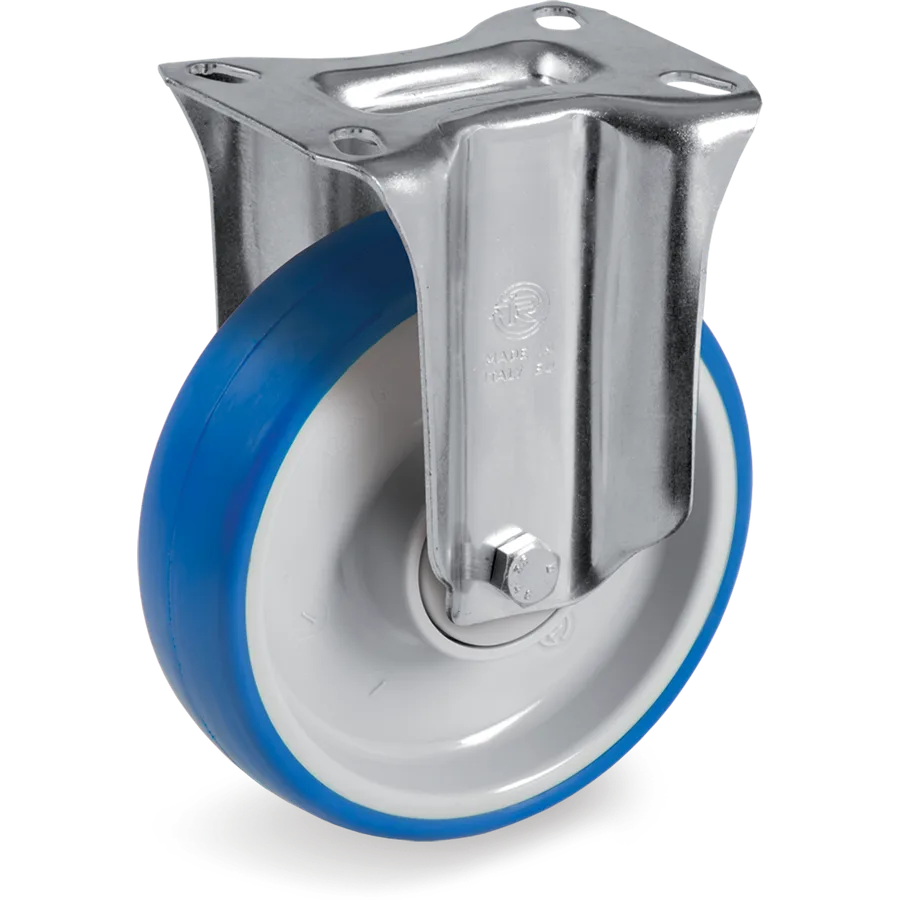

614803Representative image of the familyThermoplastic polyurethane fixed castor Ø125×35 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte fijo NL
Tellure description: 61 125X35 CC SF/NL R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 180daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 614803
- Series
- Tellure Rôta 61
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 180 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte fijo NL
24 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 604801 | Ø80×30 mm | 130 daN | C/C 2Z | No | 60 80X30 CC SF/NL R1.0 |
| 614801 | Ø80×30 mm | 85 daN | C/C 2Z | No | 61 80X30 CC SF/NL R1.0 |
| 615701 | Ø80×30 mm | 75 daN | C/B | No | 61 80X30 CB SF/NL R1.0 |
| 615901 | Ø80×30 mm | 75 daN | C/R | No | 61 80X30 CR SF/NL R1.0 |
| 604802 | Ø100×30 mm | 200 daN | C/C 2Z | No | 60 100X30 CC SF/NL R1.0 |
| 614802 | Ø100×30 mm | 120 daN | C/C 2Z | No | 61 100X30 CC SF/NL R1.0 |
| 615702 | Ø100×30 mm | 120 daN | C/B | No | 61 100X30 CB SF/NL R1.0 |
| 615902 | Ø100×30 mm | 120 daN | C/R | No | 61 100X30 CR SF/NL R1.0 |
| 604803 | Ø125×35 mm | 220 daN | C/C 2Z | No | 60 125X35 CC SF/NL R1.0 |
| 614803 | Ø125×35 mm | 180 daN | C/C 2Z | No | This article |
| 615703 | Ø125×35 mm | 180 daN | C/B | No | 61 125X35 CB SF/NL R1.0 |
| 615903 | Ø125×35 mm | 180 daN | C/R | No | 61 125X35 CR SF/NL R1.0 |
| 615704 | Ø150×35 mm | 220 daN | C/B | No | 61 150X35 CB SF/NL R1.0 |
| 615904 | Ø150×35 mm | 220 daN | C/R | No | 61 150X35 CR SF/NL R1.0 |
| 604811 | Ø150×45 mm | 300 daN | C/C 2Z | No | 60 150X45 CC SF/NL R2.0 |
| 614811 | Ø150×45 mm | 250 daN | C/C 2Z | No | 61 150X45 CC SF/NL R2.0 |
| 615711 | Ø150×45 mm | 250 daN | C/B | No | 61 150X45 CB SF/NL R2.0 |
| 615911 | Ø150×45 mm | 250 daN | C/R | No | 61 150X45 CR SF/NL R2.0 |
| 604810 | Ø160×50 mm | 300 daN | C/C 2Z | No | 60 160X50 CC SF/NL R2.0 |
| 614810 | Ø160×50 mm | 275 daN | C/C 2Z | No | 61 160X50 CC SF/NL R2.0 |
| 604806 | Ø200×50 mm | 300 daN | C/C 2Z | No | 60 200X50 CC SF/NL R2.0 |
| 614806 | Ø200×50 mm | 300 daN | C/C 2Z | No | 61 200X50 CC SF/NL R2.0 |
| 615706 | Ø200×50 mm | 300 daN | C/B | No | 61 200X50 CB SF/NL R2.0 |
| 615906 | Ø200×50 mm | 300 daN | C/R | No | 61 200X50 CR SF/NL R2.0 |
Similar alternatives
- 735103AESeries 73AE

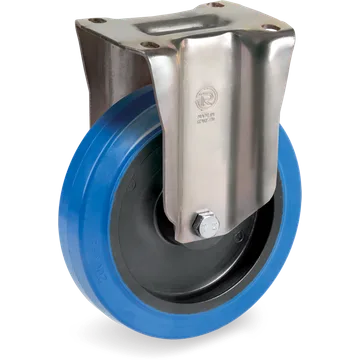

736103AESeries 73AEElastic rubber fixed castor Ø125×36 mm
