614903Series 61Thermoplastic polyurethane swivel castor Ø125×35 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NL freno delantero
Load capacity: 180 daN

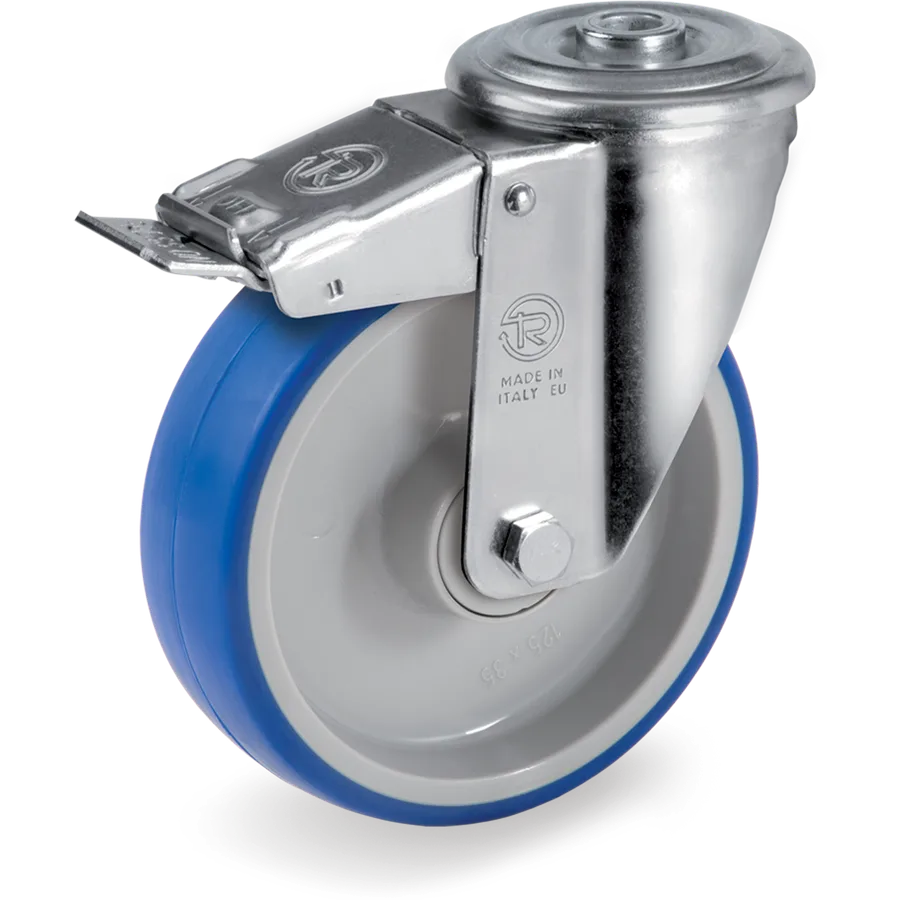

615503Representative image of the familyThermoplastic polyurethane swivel castor Ø125×35 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NL freno delantero
Tellure description: 61 125X35 CC SRF/NL+FA C1
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 180daN
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 615503
- Series
- Tellure Rôta 61
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 180 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NL freno delantero
36 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 605501 | Ø80×30 mm | 130 daN | C/C 2Z | Yes | 60 80X30 CC SRF/NL+FA C1 |
| 606401 | Ø80×30 mm | 120 daN | C/B | Yes | 60 80X30 CB SRF/NL+FA C1 |
| 606421 | Ø80×30 mm | 120 daN | C/R | Yes | 60 80X30 CR SRF/NL+FA C1 |
| 615501 | Ø80×30 mm | 85 daN | C/C 2Z | Yes | 61 80X30 CC SRF/NL+FA C1 |
| 616401 | Ø80×30 mm | 75 daN | C/B | Yes | 61 80X30 CB SRF/NL+FA C1 |
| 616421 | Ø80×30 mm | 75 daN | C/R | Yes | 61 80X30 CR SRF/NL+FA C1 |
| 605502 | Ø100×30 mm | 200 daN | C/C 2Z | Yes | 60 100X30 CC SRF/NL+FA C1 |
| 606402 | Ø100×30 mm | 170 daN | C/B | Yes | 60 100X30 CB SRF/NL+FA C1 |
| 606422 | Ø100×30 mm | 170 daN | C/R | Yes | 60 100X30 CR SRF/NL+FA C1 |
| 615502 | Ø100×30 mm | 120 daN | C/C 2Z | Yes | 61 100X30 CC SRF/NL+FA C1 |
| 616402 | Ø100×30 mm | 120 daN | C/B | Yes | 61 100X30 CB SRF/NL+FA C1 |
| 616422 | Ø100×30 mm | 120 daN | C/R | Yes | 61 100X30 CR SRF/NL+FA C1 |
| 605503 | Ø125×35 mm | 220 daN | C/C 2Z | Yes | 60 125X35 CC SRF/NL+FA C1 |
| 606403 | Ø125×35 mm | 220 daN | C/B | Yes | 60 125X35 CB SRF/NL+FA C1 |
| 606423 | Ø125×35 mm | 220 daN | C/R | Yes | 60 125X35 CR SRF/NL+FA C1 |
| 615503 | Ø125×35 mm | 180 daN | C/C 2Z | Yes | This article |
| 616403 | Ø125×35 mm | 180 daN | C/B | Yes | 61 125X35 CB SRF/NL+FA C1 |
| 616423 | Ø125×35 mm | 180 daN | C/R | Yes | 61 125X35 CR SRF/NL+FA C1 |
| 606404 | Ø150×35 mm | 220 daN | C/B | Yes | 60 150X35 CB SRF/NL+FA C1 |
| 606424 | Ø150×35 mm | 220 daN | C/R | Yes | 60 150X35 CR SRF/NL+FA C1 |
| 616404 | Ø150×35 mm | 220 daN | C/B | Yes | 61 150X35 CB SRF/NL+FA C1 |
| 616424 | Ø150×35 mm | 220 daN | C/R | Yes | 61 150X35 CR SRF/NL+FA C1 |
| 605511 | Ø150×45 mm | 300 daN | C/C 2Z | Yes | 60 150X45 CC SRF/NL+FA C2 |
| 606411 | Ø150×45 mm | 300 daN | C/B | Yes | 60 150X45 CB SRF/NL+FA C2 |
| 606431 | Ø150×45 mm | 300 daN | C/R | Yes | 60 150X45 CR SRF/NL+FA C2 |
| 615511 | Ø150×45 mm | 250 daN | C/C 2Z | Yes | 61 150X45 CC SRF/NL+FA C2 |
| 616411 | Ø150×45 mm | 250 daN | C/B | Yes | 61 150X45 CB SRF/NL+FA C2 |
| 616431 | Ø150×45 mm | 250 daN | C/R | Yes | 61 150X45 CR SRF/NL+FA C2 |
| 605510 | Ø160×50 mm | 300 daN | C/C 2Z | Yes | 60 160X50 CC SRF/NL+FA C2 |
| 615510 | Ø160×50 mm | 275 daN | C/C 2Z | Yes | 61 160X50 CC SRF/NL+FA C2 |
| 605506 | Ø200×50 mm | 300 daN | C/C 2Z | Yes | 60 200X50 CC SRF/NL+FA C2 |
| 606406 | Ø200×50 mm | 300 daN | C/B | Yes | 60 200X50 CB SRF/NL+FA C2 |
| 606426 | Ø200×50 mm | 300 daN | C/R | Yes | 60 200X50 CR SRF/NL+FA C2 |
| 615506 | Ø200×50 mm | 300 daN | C/C 2Z | Yes | 61 200X50 CC SRF/NL+FA C2 |
| 616406 | Ø200×50 mm | 300 daN | C/B | Yes | 61 200X50 CB SRF/NL+FA C2 |
| 616426 | Ø200×50 mm | 300 daN | C/R | Yes | 61 200X50 CR SRF/NL+FA C2 |
Similar alternatives
- 614903Series 61
616203Series 61Thermoplastic polyurethane swivel castor Ø125×35 mm with brake
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio con espiga NL freno delantero
Load capacity: 180 daN

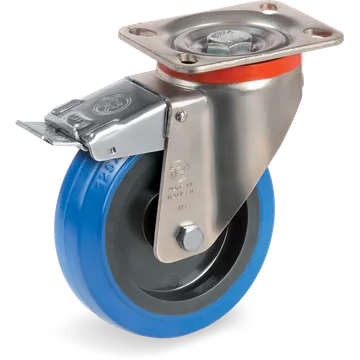

735203AESeries 73AEElastic rubber swivel castor Ø125×36 mm with brake
Ruedas en goma elastica antihuella, núcleo en poliamida 6, soporte giratorio pletina NL freno delantero
Load capacity: 200 daN

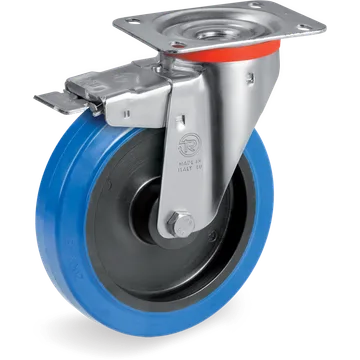

736203AESeries 73AEElastic rubber swivel castor Ø125×36 mm with brake
