585466Series 58TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 300 daN
624806Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 240 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- TBrake pin
- M10×1.5
- FSBrake pin protrusion
- 65 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

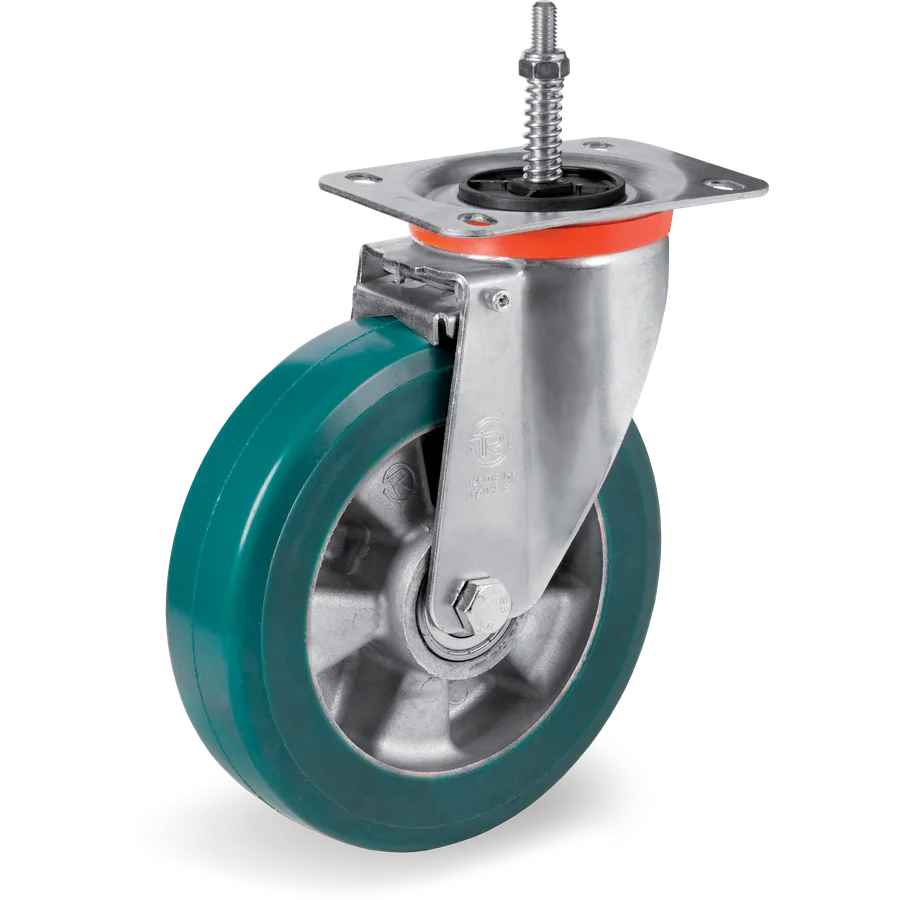

TR-Roll polyurethane swivel castor Ø200×50 mm with brake
TR-Roll polyurethane wheels, aluminium centre
Tellure description: 62AL 200X50 CC SRP/NL+FCA R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 624806
- Series
- Tellure Rôta 62AL
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 240 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Active brake
Other sizes in this family
TR-Roll polyurethane wheels, aluminium centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 624804 | Ø160×50 mm | 300 daN | C/C 2Z | Yes | 62AL 160X50 CC SRP/NL+FCA R2.0 |
| 624806 | Ø200×50 mm | 300 daN | C/C 2Z | Yes | This article |
