665701Series 66TR polyurethane fixed castor Ø80×25 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte fijo NL-M
Load capacity: 150 daN

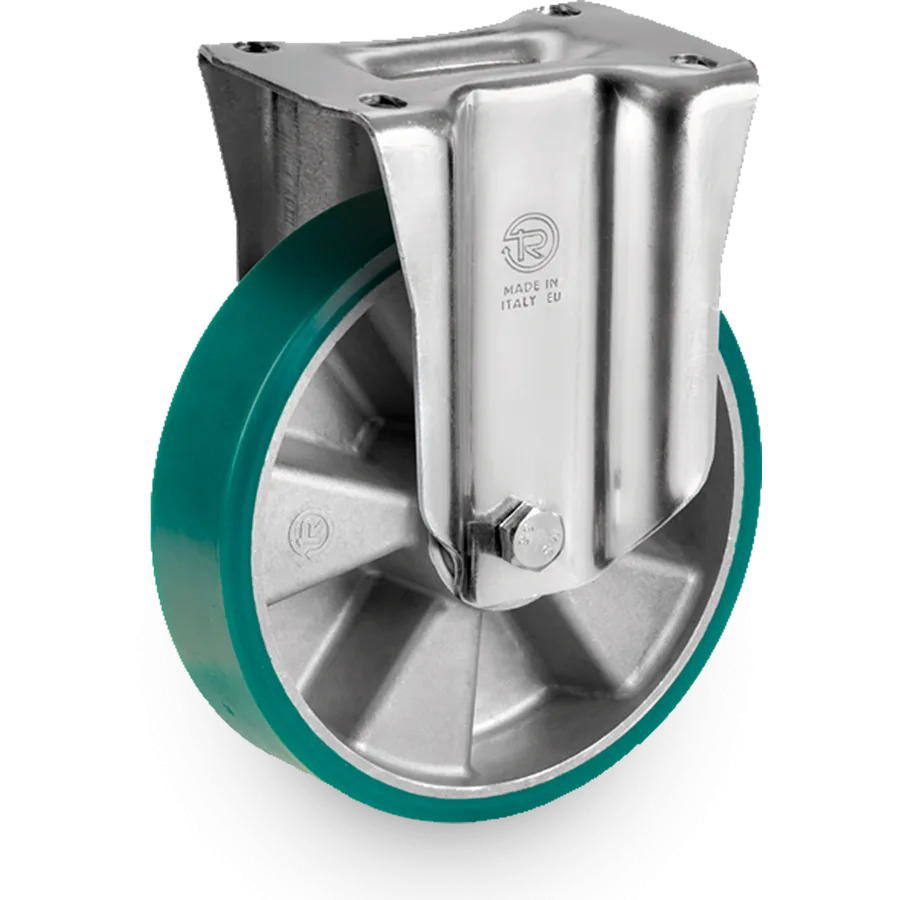

626751Representative image of the familyTR-Roll polyurethane fixed castor Ø80×25 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo NL-M
Tellure description: 62BS 80X25 CC SF/NL R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 25mm
- Load at 4 km/h
- 160daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 626751
- Series
- Tellure Rôta 62BS
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 25 mm
- Load at 4 km/h
- 160 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo NL-M
11 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 626751 | Ø80×25 mm | 160 daN | C/C 2Z | No | This article |
| 626752 | Ø100×30 mm | 200 daN | C/C 2Z | No | 62BS 100X30 CC SF/NL R1.0 |
| 626202 | Ø100×40 mm | 200 daN | C/C 2Z | No | 62AL 100X40 CC SF/NL R1.0 |
| 626753 | Ø125×35 mm | 220 daN | C/C 2Z | No | 62BS 125X35 CC SF/NL R1.0 |
| 626203 | Ø125×40 mm | 300 daN | C/C 2Z | No | 62AL 125X40 CC SF/NL R2.0 |
| 626213 | Ø125×40 mm | 220 daN | C/C 2Z | No | 62AL 125X40 CC SF/NL R1.0 |
| 626754 | Ø150×40 mm | 450 daN | C/C 2Z | No | 62BS 150X40 CC SF/NL-M R2.0 |
| 626760 | Ø160×50 mm | 500 daN | C/C 2Z | No | 62BS 160X50 CC SF/NL-M R2.0 |
| 627704 | Ø160×50 mm | 500 daN | C/C 2Z | No | 62AL 160X50 CC SF/NL-M R2.0 |
| 626756 | Ø200×50 mm | 500 daN | C/C 2Z | No | 62BS 200X50 CC SF/NL-M R2.0 |
| 627706 | Ø200×50 mm | 500 daN | C/C 2Z | No | 62AL 200X50 CC SF/NL-M R2.0 |
