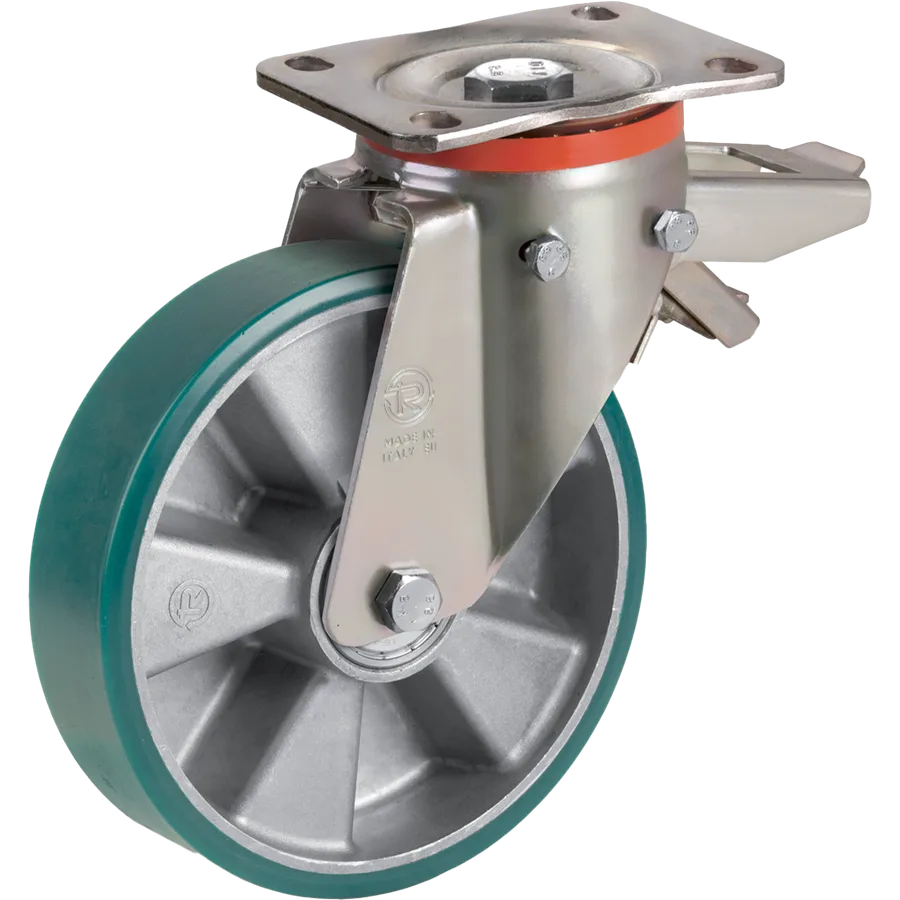

Tellure Rôta 627244 – TR-Roll polyurethane swivel castor Ø150×40 mm with brake627244Representative image of the family
Tellure RôtaCode 627244Series 62BS

TR-Roll polyurethane swivel castor Ø150×40 mm with brake

Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina P con freno

Tellure description: 62BS 150X40 CC SRP/P+FP R2.0

Diameter (D)
Ø 150mm
Width (F)
40mm
Load at 4 km/h
450daN
Tread
TR-Roll polyurethane

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
627244
Series
Tellure Rôta 62BS
Tread
TR-Roll polyurethane
Diameter (D)
150 mm
Width (F)
40 mm
Load at 4 km/h
450 daN
Bearing
Ball bearings 2Z

Bracket

Bracket type
Swivel
Fitting
Top plate
Bracket material
Galvanised steel
Brake
Yes
Brake type
Rear brake

Other sizes in this family

Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina P con freno

5 articles

CodeØ × FLoad capacityBearingBrakeTellure description
627212Ø100×30 mm200 daNC/C 2ZYes62BS 100X30 CC SRP/P+FA R1.0
627233Ø125×35 mm250 daNC/C 2ZYes62BS 125X35 CC SRP/P+FA R1.0
627244Ø150×40 mm450 daNC/C 2ZYesThis article
627220Ø160×50 mm550 daNC/C 2ZYes62BS 160X50 CC SRP/P+FP R2.0
627216Ø200×50 mm700 daNC/C 2ZYes62BS 200X50 CC SRP/P+FP R2.0
