608223Series 60Thermoplastic polyurethane fixed castor Ø125×35 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte fijo P
Load capacity: 250 daN

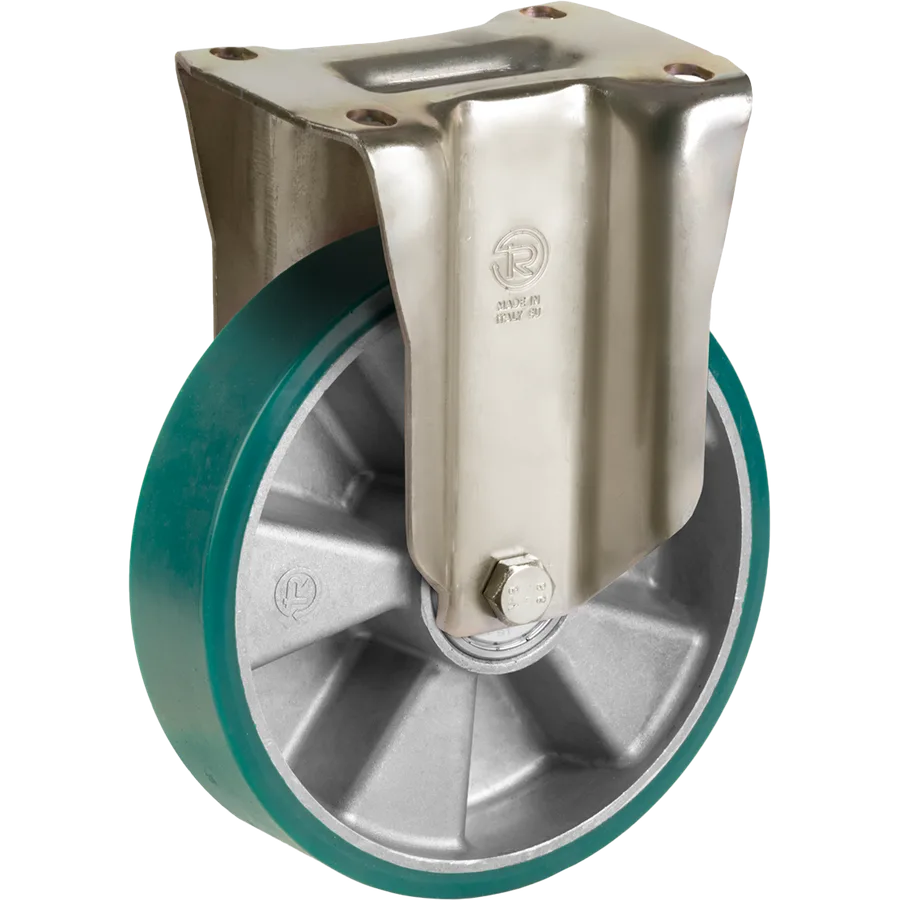

628543Representative image of the familyTR-Roll polyurethane fixed castor Ø125×35 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo P
Tellure description: 62BS 125X35 CC SF/P R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 35mm
- Load at 4 km/h
- 250daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628543
- Series
- Tellure Rôta 62BS
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 250 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo P
12 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628542 | Ø100×30 mm | 200 daN | C/C 2Z | No | 62BS 100X30 CC SF/P R1.0 |
| 628512 | Ø100×40 mm | 300 daN | C/C 2Z | No | 62AL 100X40 CC SF/P R1.0 |
| 628543 | Ø125×35 mm | 250 daN | C/C 2Z | No | This article |
| 628503 | Ø125×40 mm | 350 daN | C/C 2Z | No | 62AL 125X40 CC SF/P-PT R2.0 |
| 628513 | Ø125×40 mm | 350 daN | C/C 2Z | No | 62AL 125X40 CC SF/P R1.0 |
| 628544 | Ø150×40 mm | 450 daN | C/C 2Z | No | 62BS 150X40 CC SF/P R2.0 |
| 628514 | Ø160×50 mm | 550 daN | C/C 2Z | No | 62AL 160X50 CC SF/P-PT R2.0 |
| 628550 | Ø160×50 mm | 550 daN | C/C 2Z | No | 62BS 160X50 CC SF/P R2.0 |
| 628515 | Ø180×50 mm | 600 daN | C/C 2Z | No | 62AL 180X50 CC SF/P-PT R2.0 |
| 628516 | Ø200×50 mm | 700 daN | C/C 2Z | No | 62AL 200X50 CC SF/P-PT R2.0 |
| 628546 | Ø200×50 mm | 700 daN | C/C 2Z | No | 62BS 200X50 CC SF/P R2.0 |
| 628518 | Ø250×50 mm | 800 daN | C/C 2Z | No | 62AL 250X50 CC SF/P R2.0 |
