628714Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 50 mm
- HOverall height
- 194 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 57 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

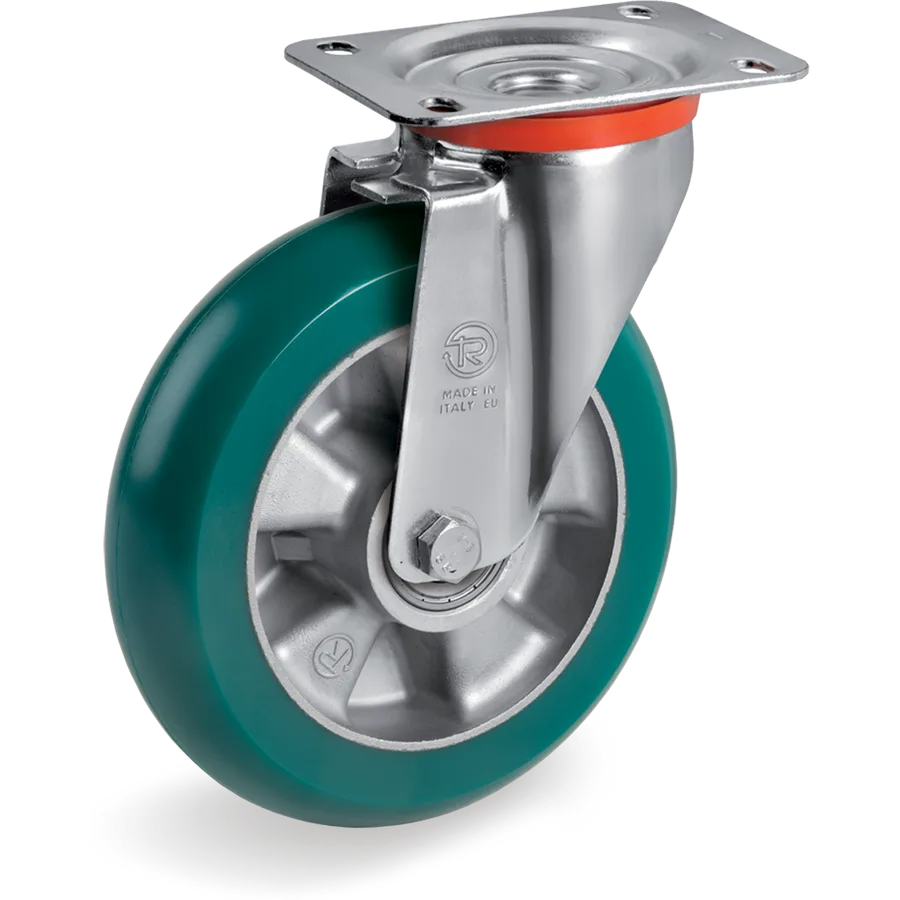

TR-Roll polyurethane swivel castor Ø150×50 mm
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
Tellure description: 62ER 150X50 CC SRP/NL R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628714
- Series
- Tellure Rôta 62ER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 58 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 194 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628702 | Ø100×40 mm | 200 daN | C/C 2Z | No | 62ER 100X40 CC SRP/NL R1.0 |
| 628703 | Ø125×40 mm | 220 daN | C/C 2Z | No | 62ER 125X40 CC SRP/NL R1.0 |
| 628713 | Ø125×40 mm | 300 daN | C/C 2Z | No | 62ER 125X40 CC SRP/NL R2.0 |
| 628714 | Ø150×50 mm | 300 daN | C/C 2Z | No | This article |
| 628704 | Ø160×50 mm | 300 daN | C/C 2Z | No | 62ER 160X50 CC SRP/NL R2.0 |
| 628716 | Ø200×50 mm | 300 daN | C/C 2Z | No | 62ER 200X50 CC SRP/NL R2.0 |
Similar alternatives
- 584554Series 58

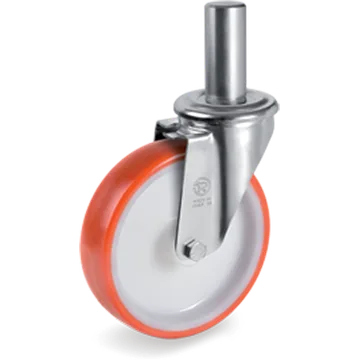

604211Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm
Injected polyurethane wheels, polyamide 6 centre
Load capacity: 300 daN

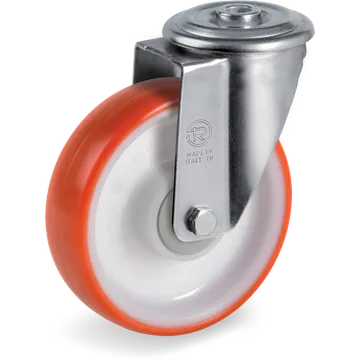

604331Series 60Thermoplastic polyurethane swivel castor Ø150×45 mm
