625010Series 62ALTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina PT
Load capacity: 550 daN

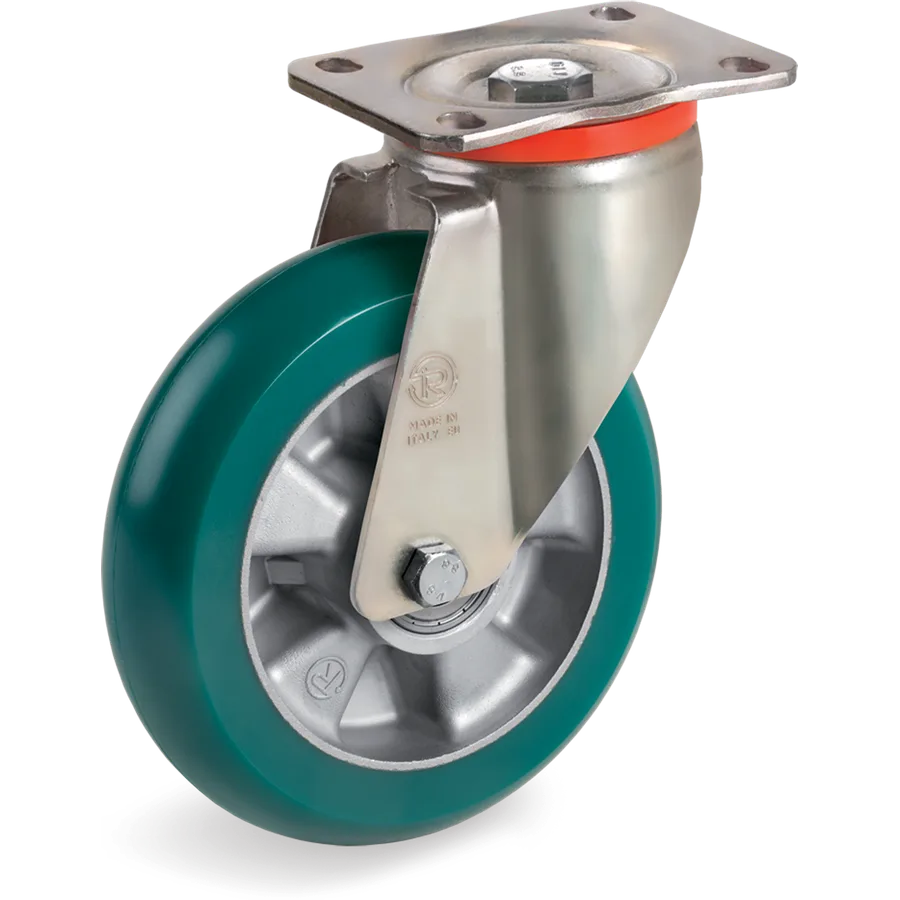

629004Representative image of the familyTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de aluminio, soportes giratorios pesados (P)
Tellure description: 62ER 160X50 CC SRP/P R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 550daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 629004
- Series
- Tellure Rôta 62ER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 550 daN
- Load at 6 km/h
- 550 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano "TR Roll" con perfil redondo con núcleo de aluminio, soportes giratorios pesados (P)
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 629003 | Ø125×40 mm | 350 daN | C/C 2Z | No | 62ER 125X40 CC SRP/P R2.0 |
| 629023 | Ø125×40 mm | 350 daN | C/C 2Z | No | 62ER 125X40 CC SRP/P R1.0 |
| 629013 | Ø125×50 mm | 450 daN | C/C 2Z | No | 62ER 125X50 CC SRP/P R2.0 |
| 629004 | Ø160×50 mm | 550 daN | C/C 2Z | No | This article |
| 629006 | Ø200×50 mm | 700 daN | C/C 2Z | No | 62ER 200X50 CC SRP/P R2.0 |
Similar alternatives

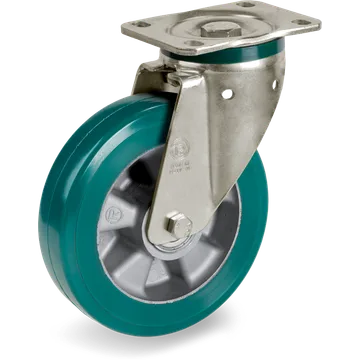

- 625010Series 62AL
627610Series 62ALTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina P
Load capacity: 550 daN

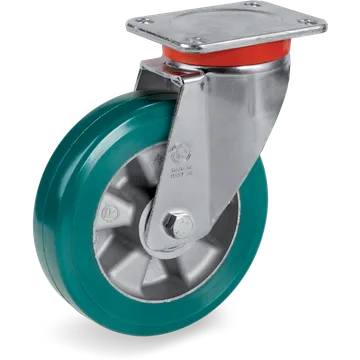

627824Series 62ALTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina EP
Load capacity: 550 daN

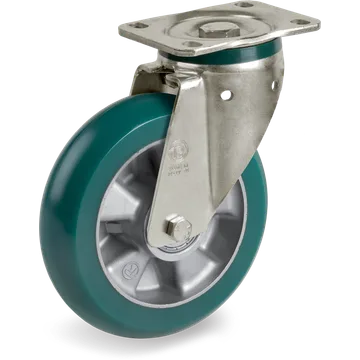

629034Series 62ERTR-Roll polyurethane swivel castor Ø160×50 mm
