629523Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 40 mm
- HOverall height
- 161 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 44 mm
- OBrake swing radius
- 123 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

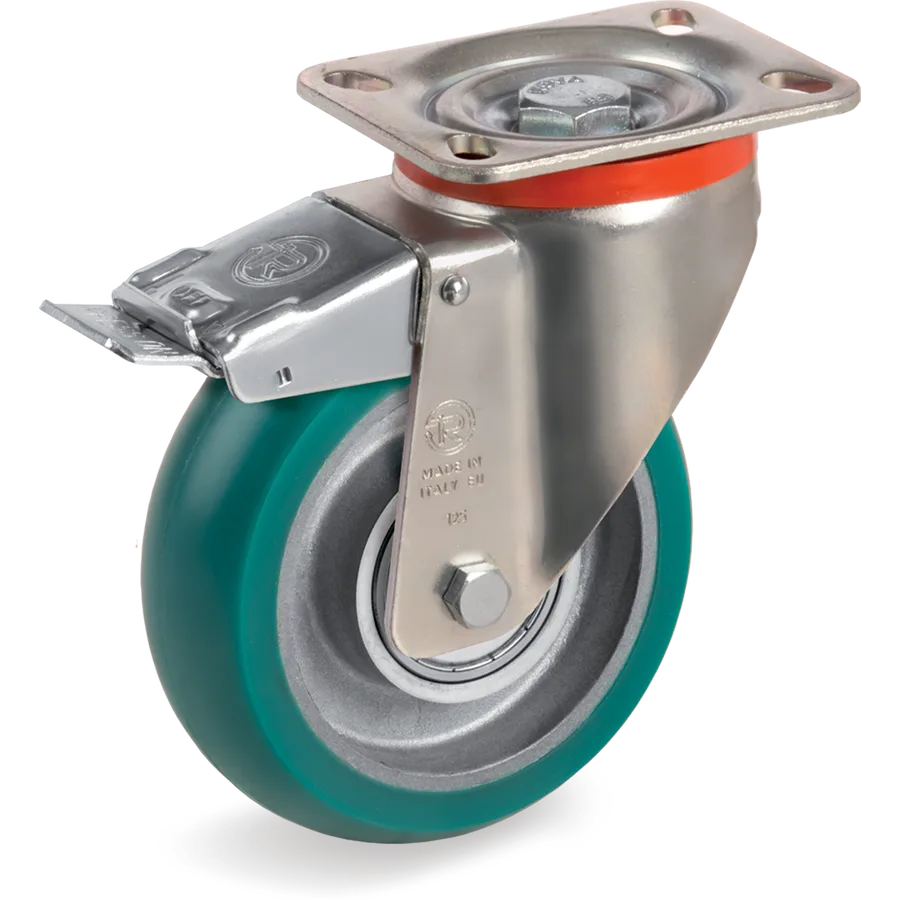

TR-Roll polyurethane swivel castor Ø125×40 mm with brake
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
Tellure description: 62ER 125X40 CC SRP/P+FA R1.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 40mm
- Load at 4 km/h
- 350daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 629523
- Series
- Tellure Rôta 62ER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 125 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 350 daN
- Load at 6 km/h
- 350 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 161 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 629203 | Ø125×40 mm | 350 daN | C/C 2Z | Yes | 62ER 125X40 CC SRP/P+FP R2.0 |
| 629523 | Ø125×40 mm | 350 daN | C/C 2Z | Yes | This article |
| 629213 | Ø125×50 mm | 450 daN | C/C 2Z | Yes | 62ER 125X50 CC SRP/P+FP R2.0 |
| 629204 | Ø160×50 mm | 550 daN | C/C 2Z | Yes | 62ER 160X50 CC SRP/P+FP R2.0 |
| 629206 | Ø200×50 mm | 700 daN | C/C 2Z | Yes | 62ER 200X50 CC SRP/P+FP R2.0 |
