584551Series 58TR-PowerHigh polyurethane swivel castor Ø80×28 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 200 daN
634551Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 28 mm
- HOverall height
- 107 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 40 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

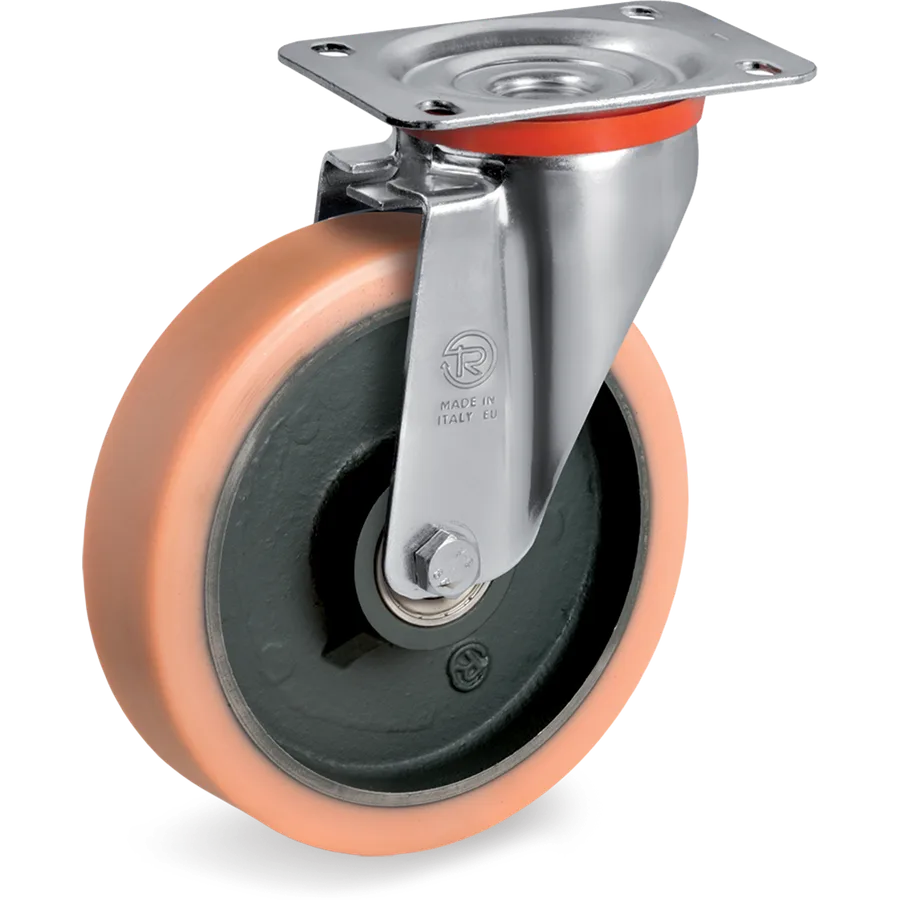

Vulkollan® swivel castor Ø80×28 mm
Vulkollan® wheels, cast iron centre
Tellure description: 63GH 80X28 CC SRP/NL R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 28mm
- Load at 4 km/h
- 200daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 634551
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 80 mm
- Width (F)
- 28 mm
- Load at 4 km/h
- 200 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 107 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Vulkollan® wheels, cast iron centre
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 634551 | Ø80×28 mm | 200 daN | C/C 2Z | No | This article |
| 634552 | Ø100×38 mm | 200 daN | C/C 2Z | No | 63GH 100X38 CC SRP/NL R1.0 |
| 634553 | Ø125×38 mm | 220 daN | C/C 2Z | No | 63GH 125X38 CC SRP/NL R1.0 |
| 634563 | Ø125×50 mm | 300 daN | C/C 2Z | No | 63GH 125X50 CC SRP/NL R2.0 |
| 634554 | Ø150×50 mm | 300 daN | C/C 2Z | No | 63GH 150X50 CC SRP/NL R2.0 |
| 634564 | Ø160×50 mm | 300 daN | C/C 2Z | No | 63GH 160X50 CC SRP/NL R2.0 |
| 634555 | Ø180×50 mm | 300 daN | C/C 2Z | No | 63GH 180X50 CC SRP/NL R2.0 |
| 634556 | Ø200×50 mm | 300 daN | C/C 2Z | No | 63GH 200X50 CC SRP/NL R2.0 |
Similar alternatives
- 584551Series 58

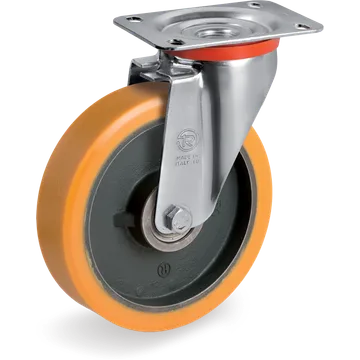

644551Series 64TR polyurethane swivel castor Ø80×28 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 200 daN

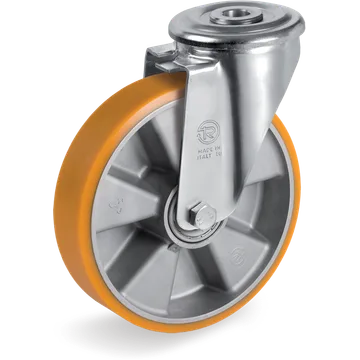

656401Series 65ALTR polyurethane swivel castor Ø80×25 mm
TR polyurethane wheels, aluminium centre
Load capacity: 200 daN

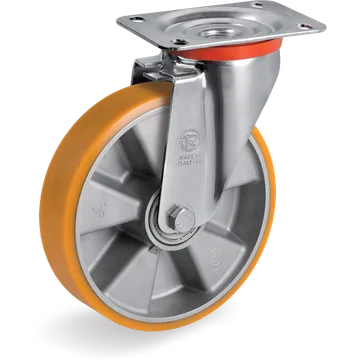

659301Series 65ALTR polyurethane swivel castor Ø80×25 mm
TR polyurethane wheels, aluminium centre
Load capacity: 200 daN
