584954Series 58TR-PowerHigh polyurethane swivel castor Ø150×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 500 daN
637424Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 50 mm
- HOverall height
- 194 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 58 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

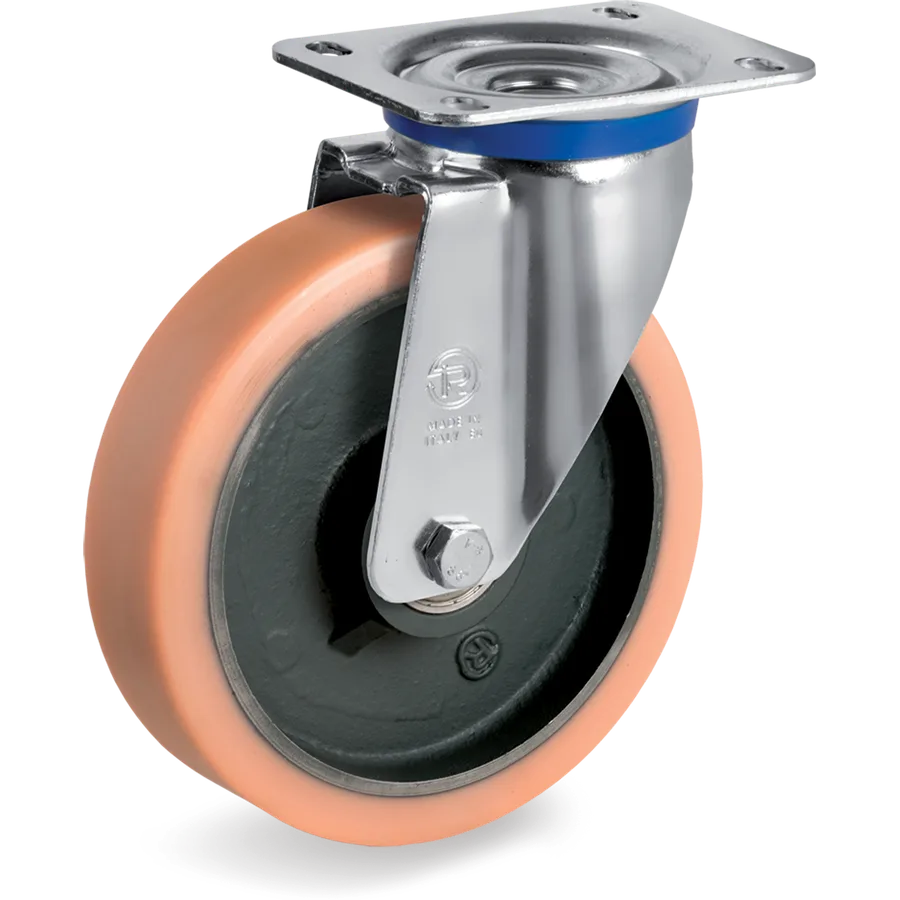

Vulkollan® swivel castor Ø150×50 mm
Vulkollan® wheels, cast iron centre
Tellure description: 63GH 150X50 CC SRP/M R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 637424
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 150 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 194 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
