638624Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 40 mm
- HOverall height
- 200 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

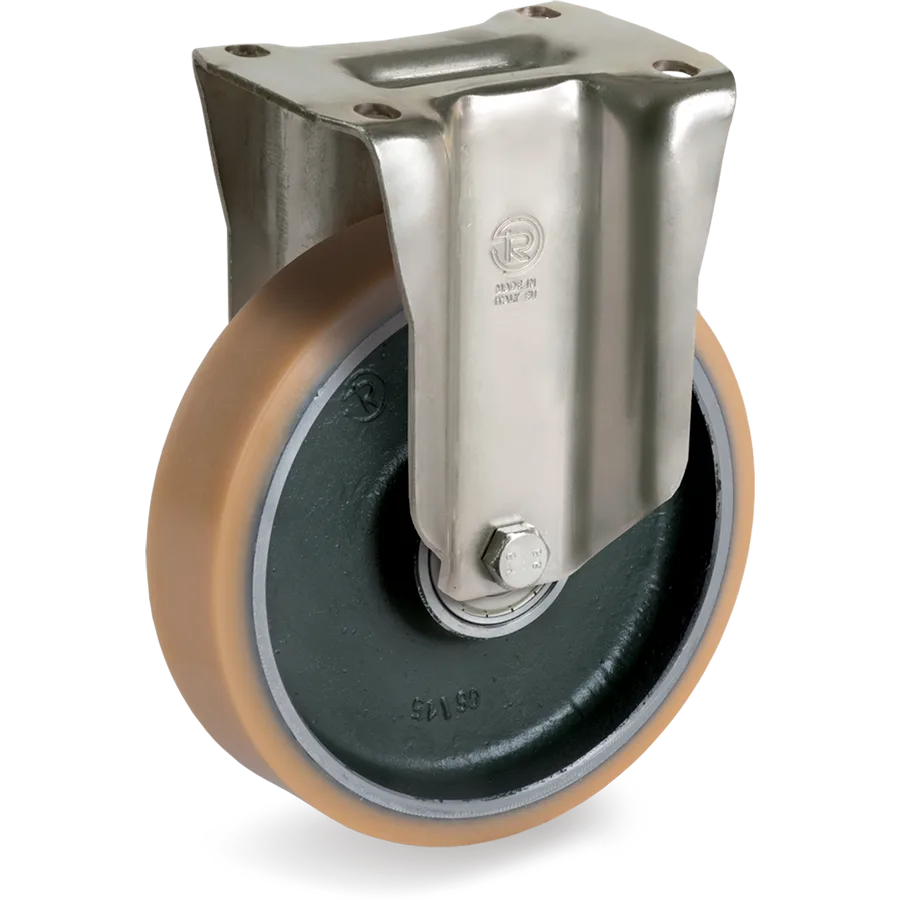

Vulkollan® fixed castor Ø150×40 mm
Vulkollan® wheels, forged steel centre
Tellure description: 63AC 150X40 CC SF/P-PT R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 40mm
- Load at 4 km/h
- 750daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 638624
- Series
- Tellure Rôta 63AC
- Tread
- Vulkollan®
- Diameter (D)
- 150 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 750 daN
- Load at 6 km/h
- 600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 200 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Vulkollan® wheels, forged steel centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 638622 | Ø100×30 mm | 250 daN | C/C 2Z | No | 63AC 100X30 CC SF/P R1.0 |
| 638623 | Ø125×40 mm | 350 daN | C/C 2Z | No | 63AC 125X40 CC SF/P R1.0 |
| 638624 | Ø150×40 mm | 750 daN | C/C 2Z | No | This article |
| 638625 | Ø175×40 mm | 850 daN | C/C 2Z | No | 63AC 175X40 CC SF/P-PT R2.0 |
| 638626 | Ø200×50 mm | 900 daN | C/C 2Z | No | 63AC 200X50 CC SF/P-PT R2.0 |
