585474Series 58TR-PowerHigh polyurethane swivel castor Ø160×50 mm with brake
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 300 daN
656514Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 198 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
- OBrake swing radius
- 156 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

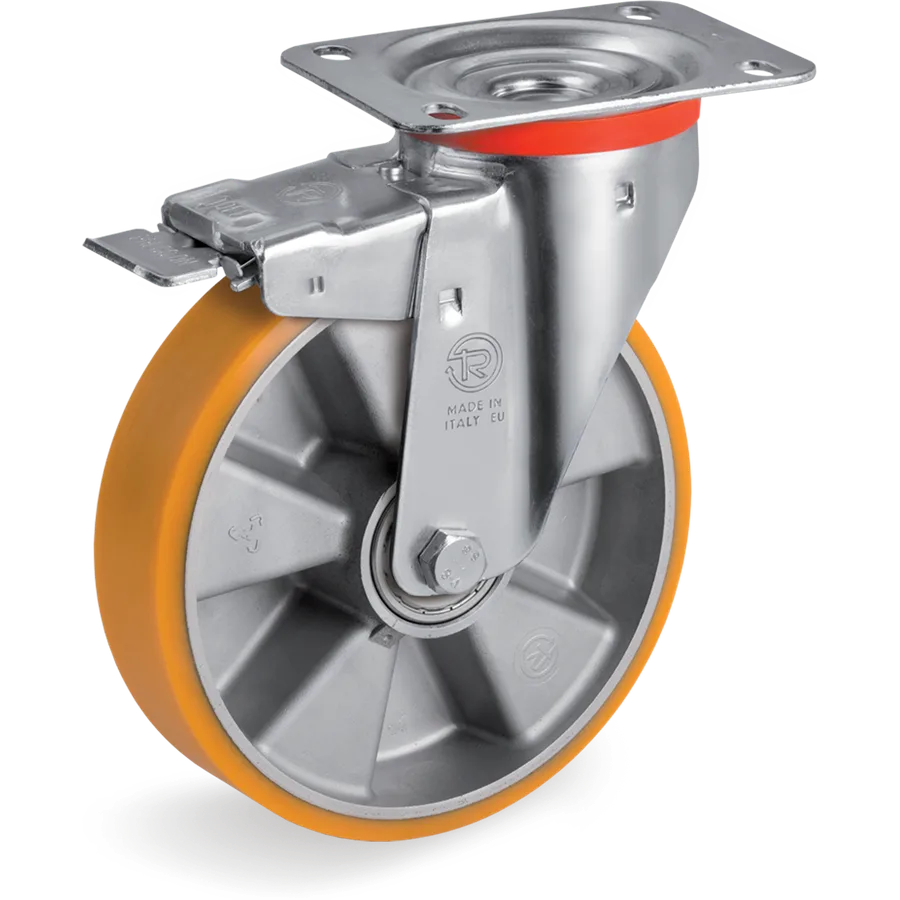

TR polyurethane swivel castor Ø160×50 mm with brake
TR polyurethane wheels, aluminium centre
Tellure description: 65AL 160X50 CC SRP/NL+FA R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 656514
- Series
- Tellure Rôta 65AL
- Tread
- TR polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 198 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
TR polyurethane wheels, aluminium centre
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 656501 | Ø80×25 mm | 200 daN | C/C 2Z | Yes | 65AL 80X25 CC SRP/NL+FA R1.0 |
| 656502 | Ø100×30 mm | 200 daN | C/C 2Z | Yes | 65AL 100X30 CC SRP/NL+FA R1.0 |
| 656503 | Ø125×35 mm | 220 daN | C/C 2Z | Yes | 65AL 125X35 CC SRP/NL+FA R1.0 |
| 656504 | Ø150×40 mm | 300 daN | C/C 2Z | Yes | 65AL 150X40 CC SRP/NL+FA R2.0 |
| 656514 | Ø160×50 mm | 300 daN | C/C 2Z | Yes | This article |
| 656506 | Ø200×50 mm | 300 daN | C/C 2Z | Yes | 65AL 200X50 CC SRP/NL+FA R2.0 |
