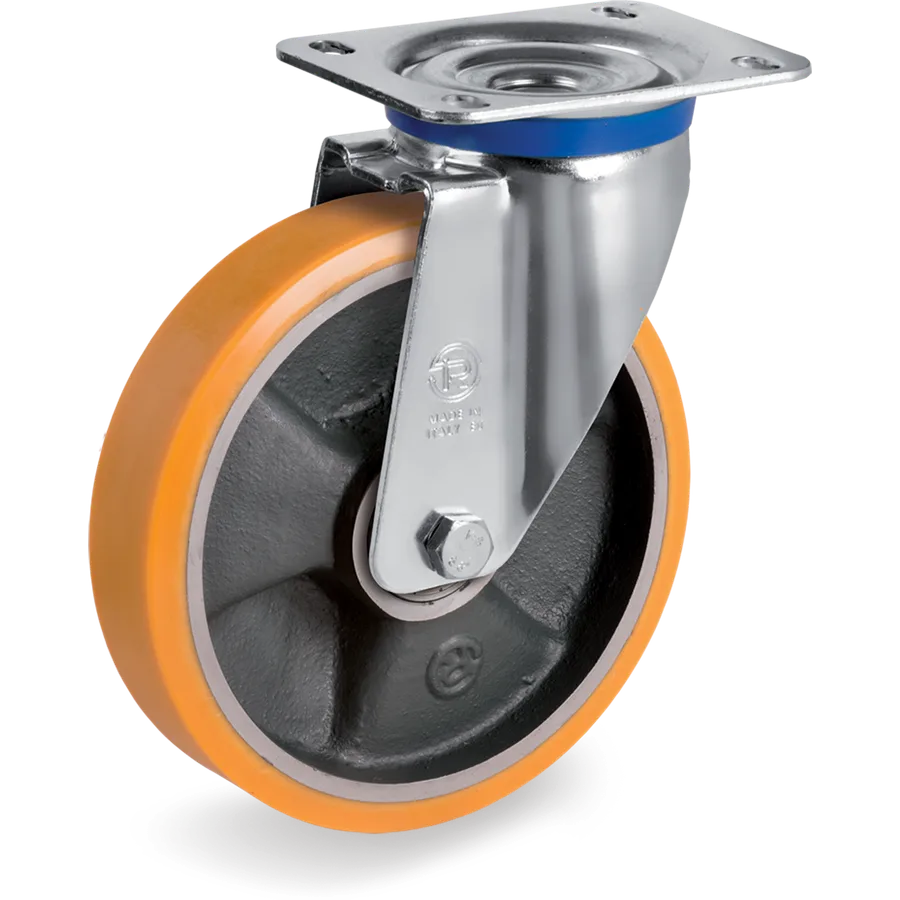

657414Series 65GHTR polyurethane swivel castor Ø150×35 mm
TR polyurethane wheels, machined cast iron centre
Load capacity: 490 daN
657214Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 35 mm
- HOverall height
- 194 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 58 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR polyurethane swivel castor Ø150×35 mm
TR polyurethane wheels, machined cast iron centre
Tellure description: 65GH 150X35 CC SRP/M R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 35mm
- Load at 4 km/h
- 490daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 657214
- Series
- Tellure Rôta 65GH
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 490 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 194 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, machined cast iron centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 657214 | Ø150×35 mm | 490 daN | C/C 2Z | No | This article |
| 644954 | Ø150×50 mm | 500 daN | C/C 2Z | No | 64 150X50 CC SRP/M R2.0 |
| 644964 | Ø160×50 mm | 500 daN | C/C 2Z | No | 64 160X50 CC SRP/M R2.0 |
| 657206 | Ø200×45 mm | 500 daN | C/C 2Z | No | 65GH 200X45 CC SRP/M R2.0 |
| 644956 | Ø200×50 mm | 500 daN | C/C 2Z | No | 64 200X50 CC SRP/M R2.0 |
