657544Series 65ALTR polyurethane swivel castor Ø150×40 mm
Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina PT
Load capacity: 600 daN

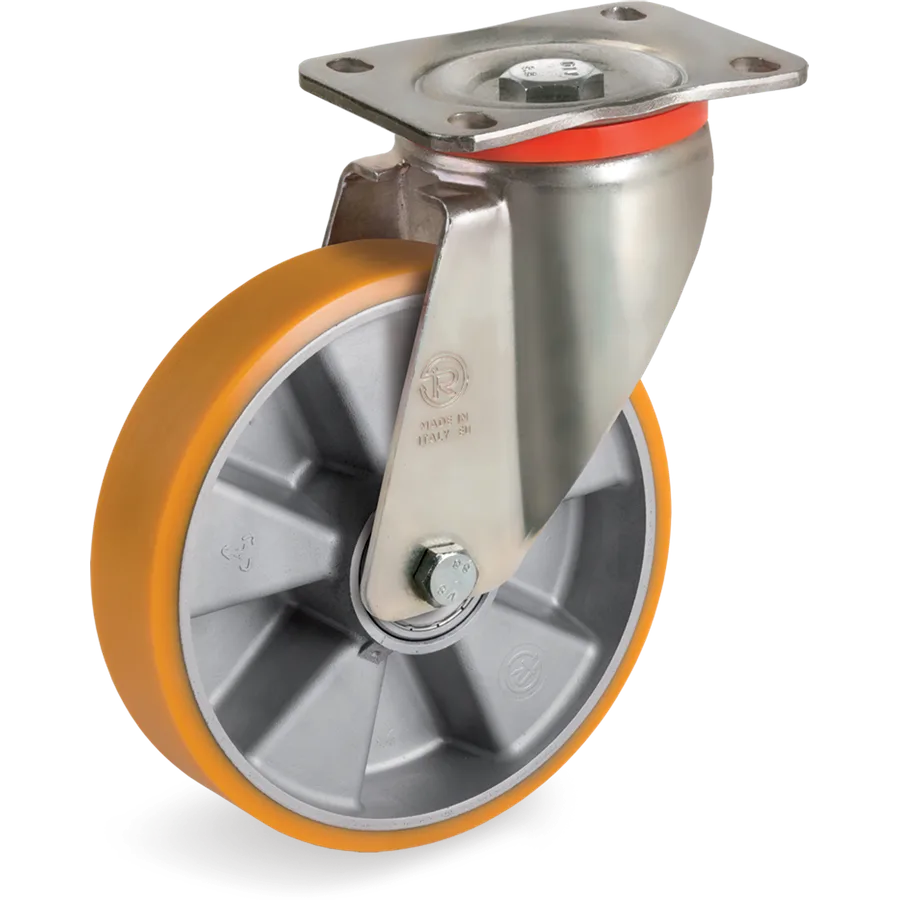

657604Representative image of the familyTR polyurethane swivel castor Ø150×40 mm
Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina P
Tellure description: 65AL 150X40 CC SRP/P R2.0
- Diameter (D)
- Ø 150mm
- Width (F)
- 40mm
- Load at 4 km/h
- 600daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 657604
- Series
- Tellure Rôta 65AL
- Tread
- TR polyurethane
- Diameter (D)
- 150 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 600 daN
- Load at 6 km/h
- 480 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina P
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 657602 | Ø100×30 mm | 250 daN | C/C 2Z | No | 65AL 100X30 CC SRP/P R1.0 |
| 657603 | Ø125×35 mm | 350 daN | C/C 2Z | No | 65AL 125X35 CC SRP/P R1.0 |
| 657604 | Ø150×40 mm | 600 daN | C/C 2Z | No | This article |
| 657514 | Ø160×50 mm | 750 daN | C/C 2Z | No | 65AL 160X50 CC SRP/P R2.0 |
| 657606 | Ø200×50 mm | 750 daN | C/C 2Z | No | 65AL 200X50 CC SRP/P R2.0 |
Similar alternatives
- 657544Series 65AL
657704Series 65ALTR polyurethane swivel castor Ø150×40 mm
Ruedas en poliuretano "TR", núcleo en aluminio, soporte giratorio pletina EP
Load capacity: 600 daN
627644Series 62GHTR-Roll polyurethane swivel castor Ø150×50 mm
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soporte giratorio PT
Load capacity: 550 daN
627854Series 62GHTR-Roll polyurethane swivel castor Ø150×50 mm
Ruedas de poliuretano TR-Roll, núcleo de hierro fundido mecánico, soporte giratorio pletina EP
Load capacity: 550 daN
