586856Series 58GHTR-PowerHigh polyurethane fixed castor Ø200×50 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Load capacity: 900 daN
658406Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 45 mm
- HOverall height
- 250 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

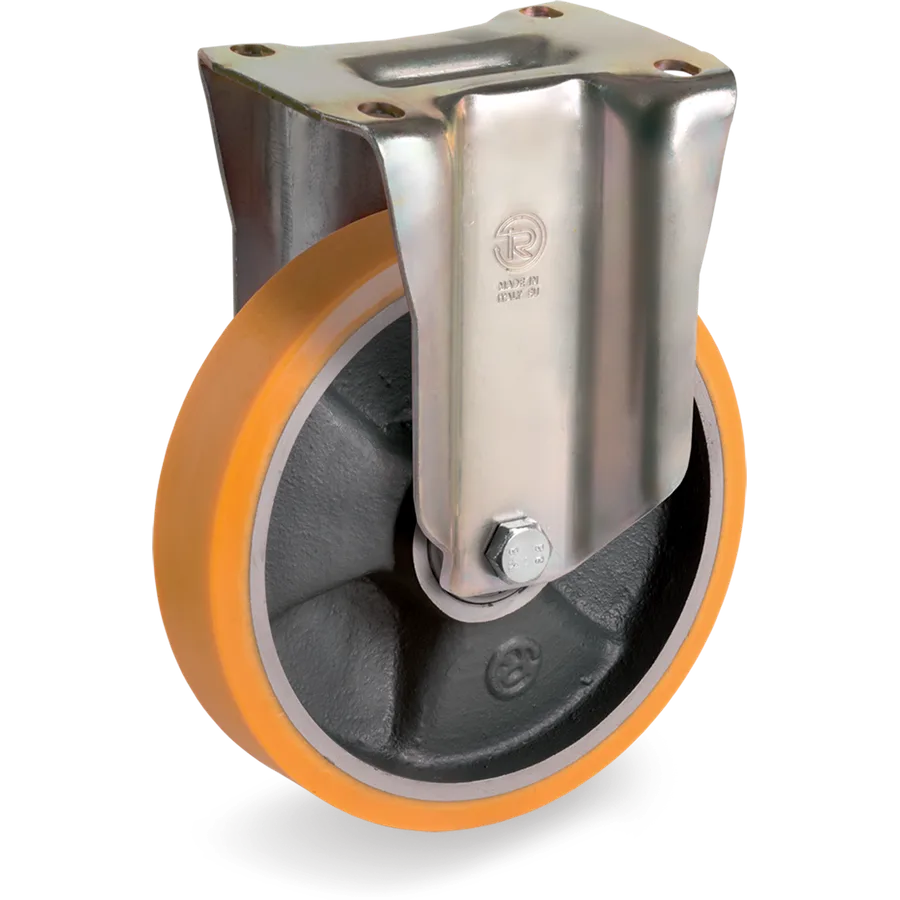

TR polyurethane fixed castor Ø200×45 mm
TR polyurethane wheels, machined cast iron centre
Tellure description: 65GH 200X45 CC SF/P-PT R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 45mm
- Load at 4 km/h
- 900daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 658406
- Series
- Tellure Rôta 65GH
- Tread
- TR polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 900 daN
- Load at 6 km/h
- 800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 250 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, machined cast iron centre
14 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 646851 | Ø80×28 mm | 280 daN | C/C 2Z | No | 64 80X28 CC SF/P R1.0 |
| 646852 | Ø100×38 mm | 350 daN | C/C 2Z | No | 64 100X38 CC SF/P R1.0 |
| 646853 | Ø125×38 mm | 350 daN | C/C 2Z | No | 64 125X38 CC SF/P R1.0 |
| 646863 | Ø125×50 mm | 550 daN | C/C 2Z | No | 64 125X50 CC SF/P-PT R2.0 |
| 658404 | Ø150×30 mm | 400 daN | C/C 2Z | No | 65GH 150X30 CC SF/P R2.0 |
| 658414 | Ø150×35 mm | 490 daN | C/C 2Z | No | 65GH 150X35 CC SF/P-PT R2.0 |
| 646854 | Ø150×50 mm | 750 daN | C/C 2Z | No | 64 150X50 CC SF/P-PT R2.0 |
| 646864 | Ø160×50 mm | 750 daN | C/C 2Z | No | 64 160X50 CC SF/P-PT R2.0 |
| 658405 | Ø175×35 mm | 650 daN | C/C 2Z | No | 65GH 175X35 CC SF/P-PT R2.0 |
| 646855 | Ø180×50 mm | 900 daN | C/C 2Z | No | 64 180X50 CC SF/P-PT R2.0 |
| 658406 | Ø200×45 mm | 900 daN | C/C 2Z | No | This article |
| 646856 | Ø200×50 mm | 900 daN | C/C 2Z | No | 64 200X50 CC SF/P-PT R2.0 |
| 646867 | Ø250×50 mm | 900 daN | C/C 2Z | No | 64 250X50 CC SF/P R2.0 |
| 658408 | Ø250×50 mm | 900 daN | C/C 2Z | No | 65GH 250X50 CC SF/P R2.0 |
