588614Series 58ALTR-PowerHigh polyurethane fixed castor Ø160×50 mm
TR-PowerHigh polyurethane wheels, aluminium centre
Load capacity: 800 daN
658714Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 205 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

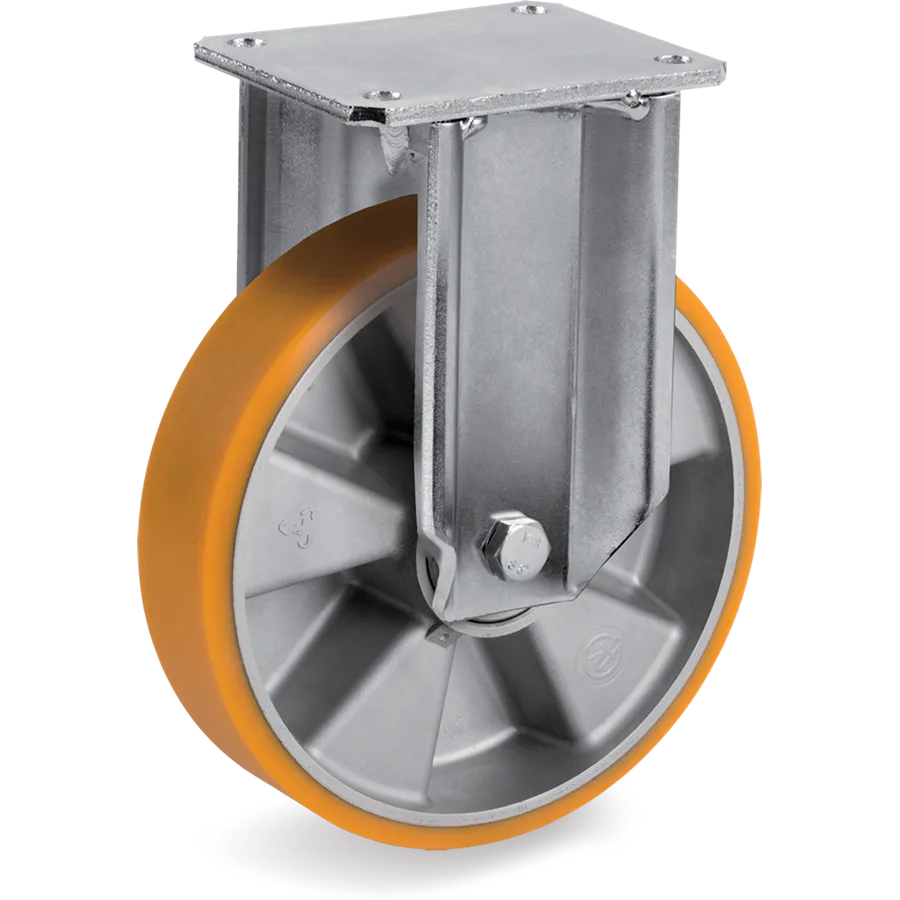

TR polyurethane fixed castor Ø160×50 mm
TR polyurethane wheels, aluminium centre
Tellure description: 65AL 160X50 CC SF/EP R2.1
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 800daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 658714
- Series
- Tellure Rôta 65AL
- Tread
- TR polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 800 daN
- Load at 6 km/h
- 640 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 205 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR polyurethane wheels, aluminium centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 658802 | Ø100×30 mm | 250 daN | C/C 2Z | No | 65AL 100X30 CC SF/EP R1.0 |
| 658803 | Ø125×35 mm | 350 daN | C/C 2Z | No | 65AL 125X35 CC SF/EP R1.0 |
| 658704 | Ø150×40 mm | 600 daN | C/C 2Z | No | 65AL 150X40 CC SF/EP R2.1 |
| 658714 | Ø160×50 mm | 800 daN | C/C 2Z | No | This article |
| 658706 | Ø200×50 mm | 850 daN | C/C 2Z | No | 65AL 200X50 CC SF/EP R2.1 |
Similar alternatives

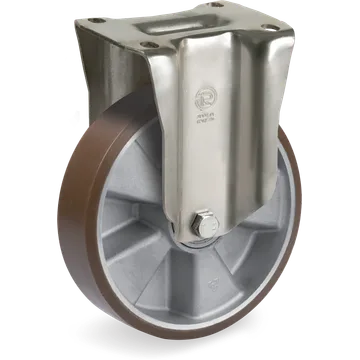

- 588614Series 58AL

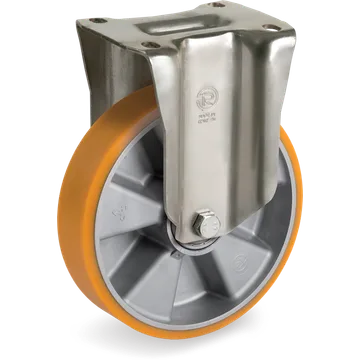

658614Series 65ALTR polyurethane fixed castor Ø160×50 mm
TR polyurethane wheels, aluminium centre
Load capacity: 800 daN

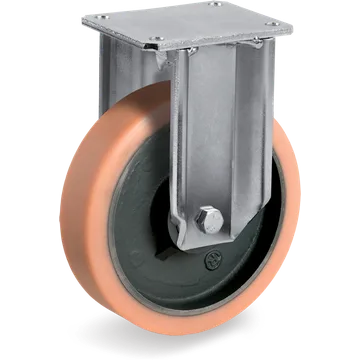

636864Series 63GH
