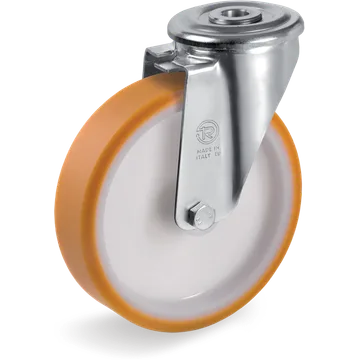

667701Series 66TR polyurethane swivel castor Ø80×25 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio taladro pasador NL
Load capacity: 150 daN

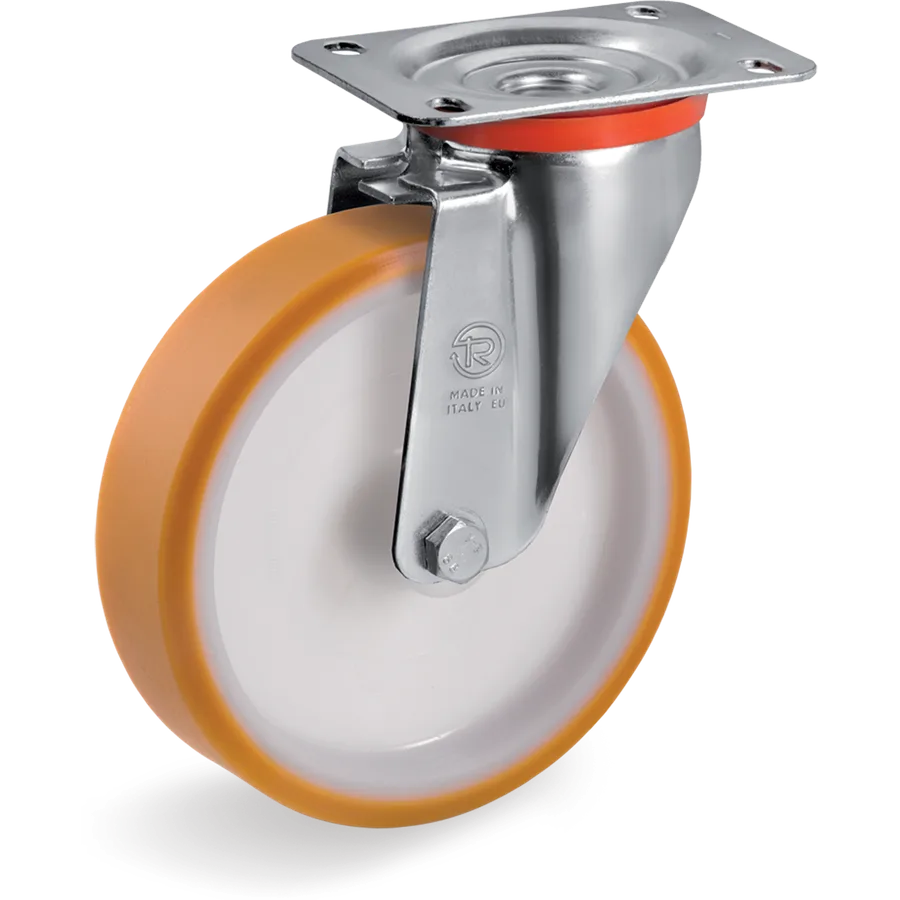

664501Representative image of the familyTR polyurethane swivel castor Ø80×25 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio pletina NL
Tellure description: 66 80X25 CR SRP/NL R1.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 25mm
- Load at 4 km/h
- 150daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 664501
- Series
- Tellure Rôta 66
- Tread
- TR polyurethane
- Diameter (D)
- 80 mm
- Width (F)
- 25 mm
- Load at 4 km/h
- 150 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano "TR", núcleo en poliamida, soporte giratorio pletina NL
14 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 664201 | Ø80×25 mm | 150 daN | C/B | No | 66 80X25 CB SRP/NL R1.0 |
| 664501 | Ø80×25 mm | 150 daN | C/R | No | This article |
| 664202 | Ø100×30 mm | 200 daN | C/B | No | 66 100X30 CB SRP/NL R1.0 |
| 664502 | Ø100×30 mm | 200 daN | C/R | No | 66 100X30 CR SRP/NL R1.0 |
| 664203 | Ø125×30 mm | 220 daN | C/B | No | 66 125X30 CB SRP/NL R1.0 |
| 664213 | Ø125×30 mm | 220 daN | C/B | No | 66 125X30 CB SRP/LPG R2.0 |
| 664503 | Ø125×30 mm | 220 daN | C/R | No | 66 125X30 CR SRP/NL R1.0 |
| 664513 | Ø125×30 mm | 220 daN | C/R | No | 66 125X30 CR SRP/LPG R2.0 |
| 664204 | Ø150×40 mm | 300 daN | C/B | No | 66 150X40 CB SRP/NL R2.0 |
| 664504 | Ø150×40 mm | 300 daN | C/R | No | 66 150X40 CR SRP/NL R2.0 |
| 664205 | Ø175×40 mm | 300 daN | C/B | No | 66 175X40 CB SRP/NL R2.0 |
| 664505 | Ø175×40 mm | 300 daN | C/R | No | 66 175X40 CR SRP/NL R2.0 |
| 664206 | Ø200×50 mm | 300 daN | C/B | No | 66 200X50 CB SRP/NL R2.0 |
| 664506 | Ø200×50 mm | 300 daN | C/R | No | 66 200X50 CR SRP/NL R2.0 |
Similar alternatives
- 667701Series 66

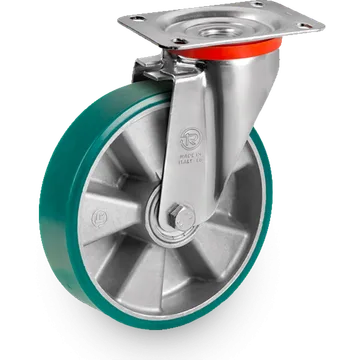

625951Series 62BSTR-Roll polyurethane swivel castor Ø80×25 mm
