584656Series 58TR-PowerHigh polyurethane fixed castor Ø200×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte fijo NL-M
Load capacity: 500 daN
665806Representative image of the familyTR polyurethane fixed castor Ø200×50 mm
Ruedas en poliuretano "TR", núcleo en poliamida, soporte fijo NL-M
Tellure description: 66 200X50 CC SF/M R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 665806
- Series
- Tellure Rôta 66
- Tread
- TR polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en poliuretano "TR", núcleo en poliamida, soporte fijo NL-M
15 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 665701 | Ø80×25 mm | 150 daN | C/B | No | 66 80X25 CB SF/NL R1.0 |
| 665901 | Ø80×25 mm | 150 daN | C/R | No | 66 80X25 CR SF/NL R1.0 |
| 665702 | Ø100×30 mm | 200 daN | C/B | No | 66 100X30 CB SF/NL R1.0 |
| 665902 | Ø100×30 mm | 200 daN | C/R | No | 66 100X30 CR SF/NL R1.0 |
| 665703 | Ø125×30 mm | 220 daN | C/B | No | 66 125X30 CB SF/NL R1.0 |
| 665713 | Ø125×30 mm | 220 daN | C/B | No | 66 125X30 CB SF/LPG R2.0 |
| 665903 | Ø125×30 mm | 220 daN | C/R | No | 66 125X30 CR SF/NL R1.0 |
| 665913 | Ø125×30 mm | 220 daN | C/R | No | 66 125X30 CR SF/LPG R2.0 |
| 665704 | Ø150×40 mm | 400 daN | C/B | No | 66 150X40 CB SF/NL-M R2.0 |
| 665904 | Ø150×40 mm | 400 daN | C/R | No | 66 150X40 CR SF/NL R2.0 |
| 665705 | Ø175×40 mm | 470 daN | C/B | No | 66 175X40 CB SF/NL R2.0 |
| 665905 | Ø175×40 mm | 470 daN | C/R | No | 66 175X40 CR SF/NL R2.0 |
| 665706 | Ø200×50 mm | 500 daN | C/B | No | 66 200X50 CB SF/NL R2.0 |
| 665806 | Ø200×50 mm | 500 daN | C/C 2Z | No | This article |
| 665906 | Ø200×50 mm | 500 daN | C/R | No | 66 200X50 CR SF/NL R2.0 |
Similar alternatives
- 584656Series 58

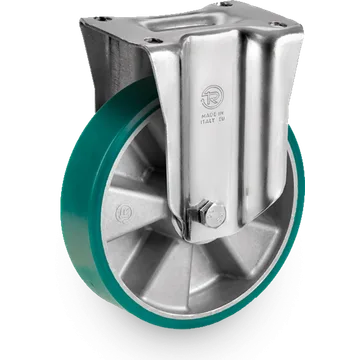

626756Series 62BSTR-Roll polyurethane fixed castor Ø200×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte fijo NL-M
Load capacity: 500 daN
627726Series 62NYTR-Roll polyurethane fixed castor Ø200×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de poliamida 6, soporte fijo NL-M
Load capacity: 500 daN
627736Series 62NYERTR-Roll polyurethane fixed castor Ø200×50 mm
Ruedas de poliuretano "TR Roll" con núcleo de poliamida 6, soportes fixos tipo NL-M
Load capacity: 500 daN
