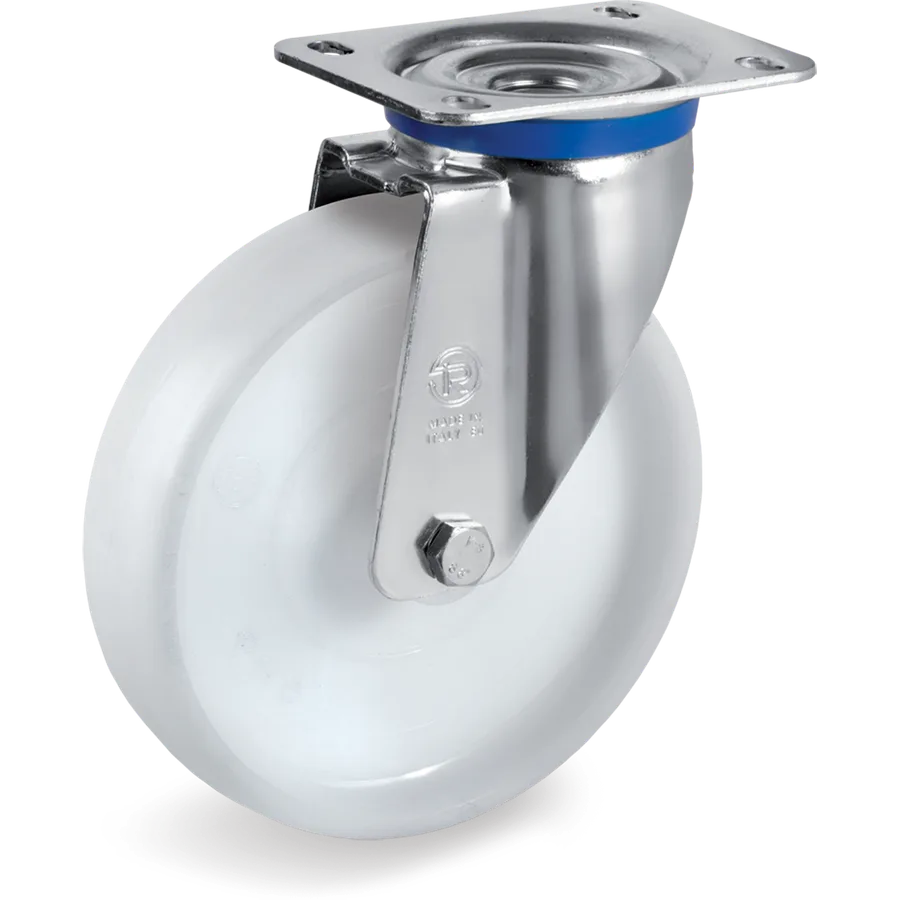

684206Representative image of the familyPolyamide 6 swivel castor Ø200×50 mm
Ruedas monobloque en poliamida 6, soporte giratorio pletina M
Tellure description: 68 200X50 CC SRP/M R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 684206
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6, soporte giratorio pletina M
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 684704 | Ø150×45 mm | 500 daN | C/B | No | 68 150X45 CB SRP/M R2.0 |
| 685004 | Ø150×45 mm | 500 daN | C/R | No | 68 150X45 CR SRP/M R2.0 |
| 684206 | Ø200×50 mm | 500 daN | C/C 2Z | No | This article |
| 684706 | Ø200×50 mm | 500 daN | C/B | No | 68 200X50 CB SRP/M R2.0 |
| 685006 | Ø200×50 mm | 500 daN | C/R | No | 68 200X50 CR SRP/M R2.0 |
