685112Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 35 mm
- HOverall height
- 128 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

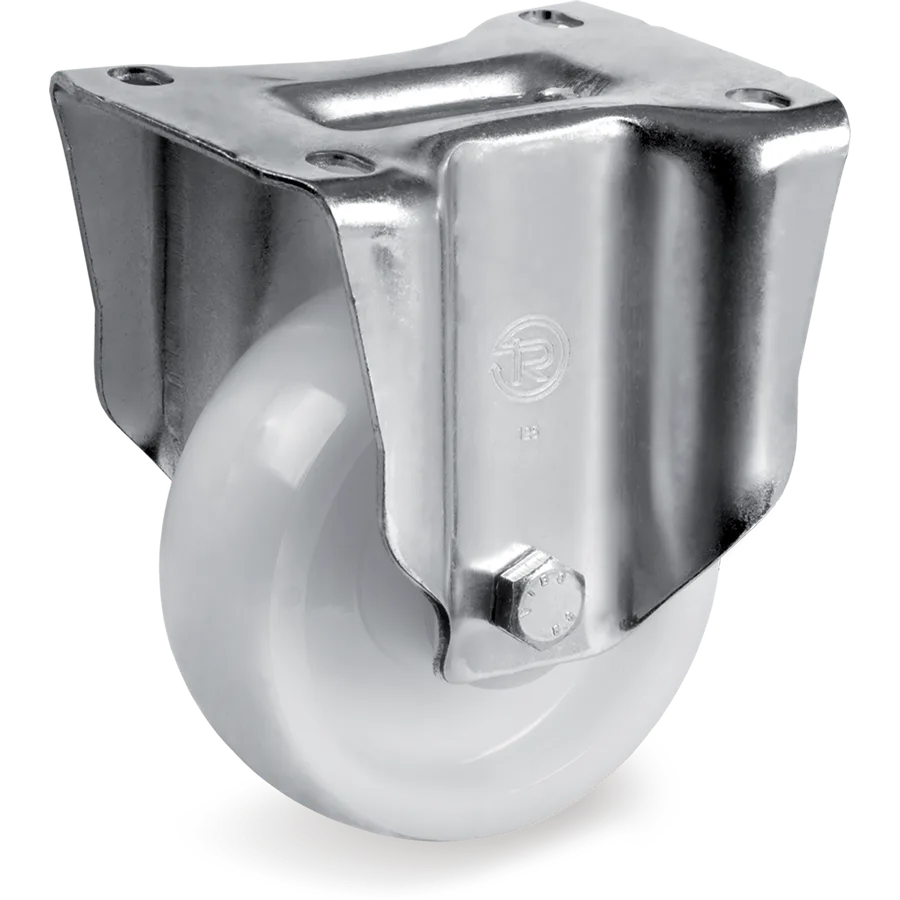

Polyamide 6 fixed castor Ø100×35 mm
One-piece polyamide 6 wheels for heavy loads
Tellure description: 68P 100X35 CC SF/NL R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 35mm
- Load at 4 km/h
- 200daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 685112
- Series
- Tellure Rôta 68P
- Tread
- Polyamide 6
- Diameter (D)
- 100 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 200 daN
- Bearing
- Ball bearings 2Z
- Bore diameter (DD)
- 15 mm
- Hub length (L)
- 40 mm
- Seat diameter (LL)
- 35 mm
- Bearing seat depth (M)
- 11 mm
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 128 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
One-piece polyamide 6 wheels for heavy loads
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 685112 | Ø100×35 mm | 200 daN | C/C 2Z | No | This article |
| 686172 | Ø100×35 mm | 200 daN | C/CX 2RS | No | 68P 100X35 CCX SF/NLX R1.0 |
| 686173 | Ø125×35 mm | 220 daN | C/CX 2RS | No | 68P 125X35 CCX SF/NLX R1.0 |
| 685113 | Ø125×45 mm | 300 daN | C/B | No | 68P 125X45 CB SF/NL R2.0 |
| 685173 | Ø125×45 mm | 300 daN | C/C 2Z | No | 68P 125X45 CC SF/NL R2.0 |
