656625Series 65GHTR polyurethane swivel castor Ø175×35 mm with brake
Ruedas en poliuretano TR, núcleo en hierro fundido mecánico, soporte giratorio pletina P con freno registrable
Load capacity: 650 daN

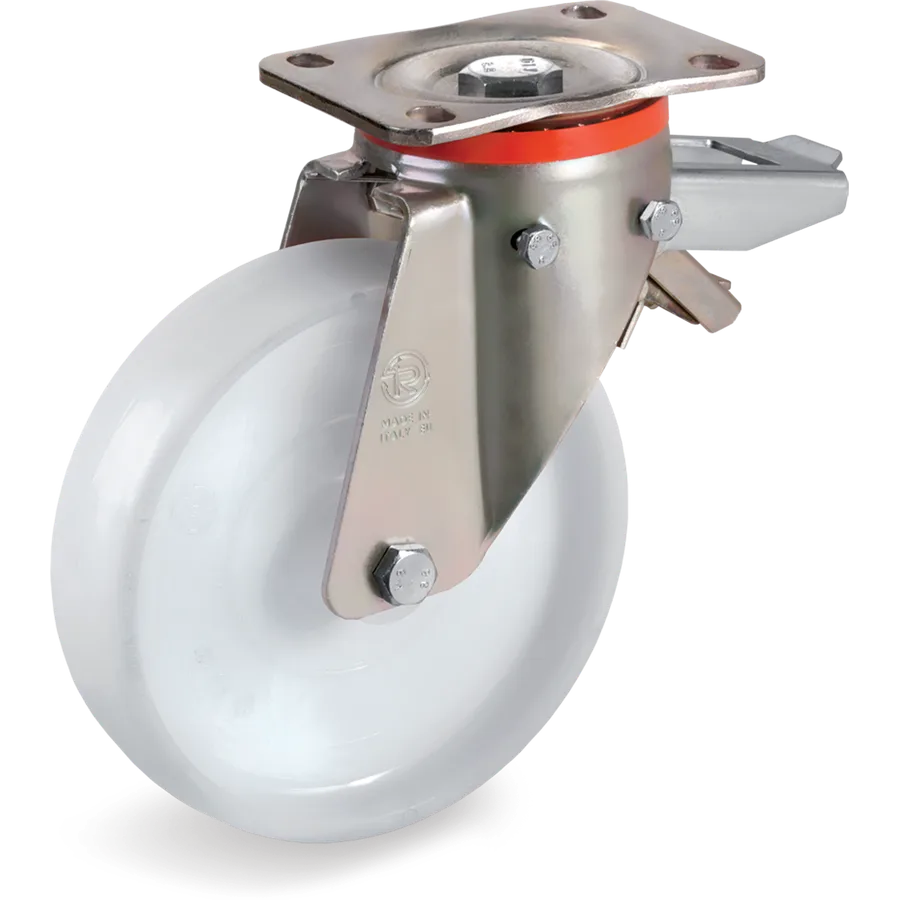

686925Representative image of the familyPolyamide 6 swivel castor Ø175×45 mm with brake
Ruedas monobloque en poliamida 6, soporte giratorio pletina P con freno registrable
Tellure description: 68 175X45 CR SRP/P+FP R2.0
- Diameter (D)
- Ø 175mm
- Width (F)
- 45mm
- Load at 4 km/h
- 630daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 686925
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 175 mm
- Width (F)
- 45 mm
- Load at 4 km/h
- 630 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Ruedas monobloque en poliamida 6, soporte giratorio pletina P con freno registrable
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 686904 | Ø150×45 mm | 500 daN | C/B | Yes | 68 150X45 CB SRP/P+FP R2.0 |
| 686924 | Ø150×45 mm | 500 daN | C/R | Yes | 68 150X45 CR SRP/P+FP R2.0 |
| 686905 | Ø175×45 mm | 630 daN | C/B | Yes | 68 175X45 CB SRP/P+FP R2.0 |
| 686925 | Ø175×45 mm | 630 daN | C/R | Yes | This article |
| 686906 | Ø200×50 mm | 730 daN | C/B | Yes | 68 200X50 CB SRP/P+FP R2.0 |
| 686926 | Ø200×50 mm | 730 daN | C/R | Yes | 68 200X50 CR SRP/P+FP R2.0 |
| 686946 | Ø200×50 mm | 730 daN | C/C 2Z | Yes | 68 200X50 CC SRP/P+FP R2.0 |
Similar alternatives
- 656625Series 65GH
656915Series 65GHTR polyurethane swivel castor Ø175×35 mm with brake
Ruedas en poliuretano TR, núcleo en hierro fundido mecánico, soporte giratorio pletina EP con freno registrable
Load capacity: 650 daN

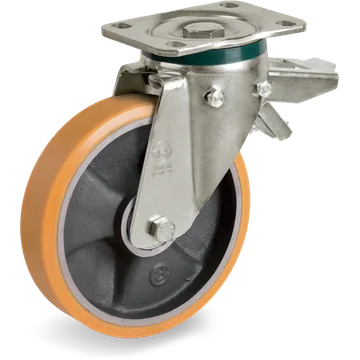

658305Series 65GHTR polyurethane swivel castor Ø175×35 mm with brake
