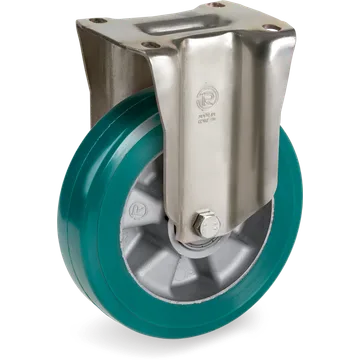

628516Series 62ALTR-Roll polyurethane fixed castor Ø200×50 mm
TR-Roll polyurethane wheels, aluminium centre
Load capacity: 700 daN
688606Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 250 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

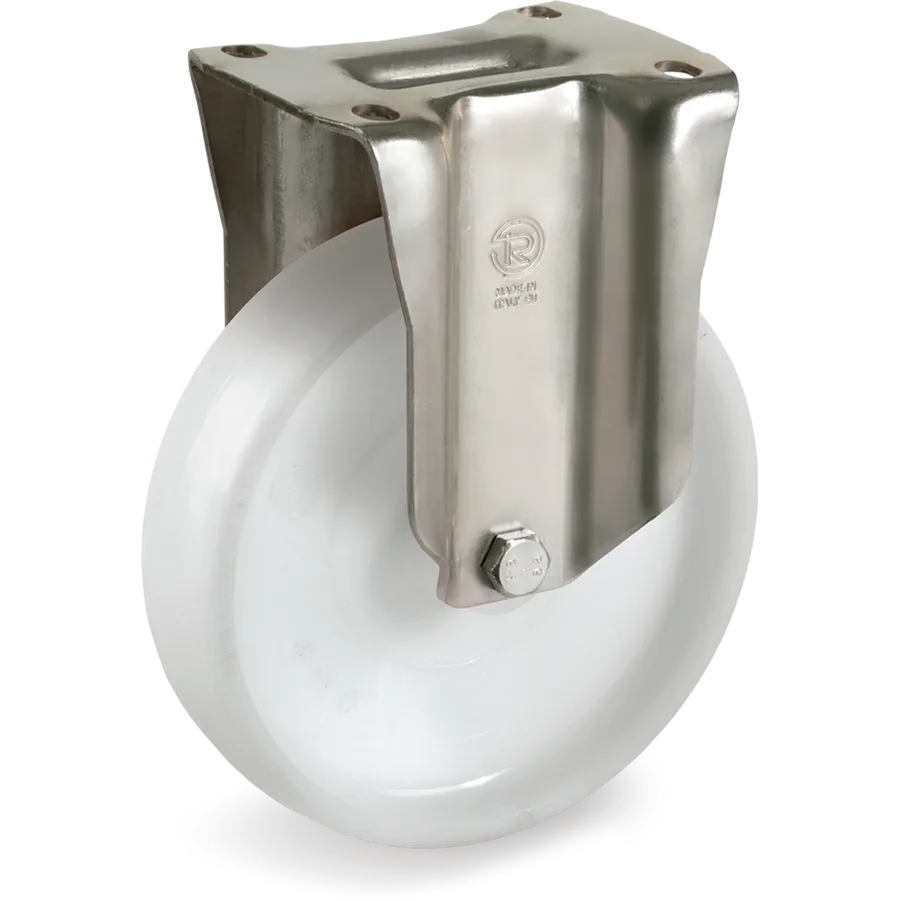

Polyamide 6 fixed castor Ø200×50 mm
One-piece polyamide 6 wheels
Tellure description: 68 200X50 CR SF/P R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 730daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 688606
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 730 daN
- Bearing
- Roller bearing
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 250 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
One-piece polyamide 6 wheels
11 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 688502 | Ø100×30 mm | 300 daN | C/B | No | 68 100X30 CB SF/P R1.0 |
| 688602 | Ø100×30 mm | 300 daN | C/R | No | 68 100X30 CR SF/P R1.0 |
| 688503 | Ø125×38 mm | 350 daN | C/B | No | 68 125X38 CB SF/P R1.0 |
| 688603 | Ø125×38 mm | 350 daN | C/R | No | 68 125X38 CR SF/P R1.0 |
| 688504 | Ø150×45 mm | 500 daN | C/B | No | 68 150X45 CB SF/P R2.0 |
| 688604 | Ø150×45 mm | 500 daN | C/R | No | 68 150X45 CR SF/P R2.0 |
| 688505 | Ø175×45 mm | 630 daN | C/B | No | 68 175X45 CB SF/P R2.0 |
| 688605 | Ø175×45 mm | 630 daN | C/R | No | 68 175X45 CR SF/P R2.0 |
| 685366 | Ø200×50 mm | 730 daN | C/C 2Z | No | 68 200X50 CC SF/P R2.0 |
| 688506 | Ø200×50 mm | 730 daN | C/B | No | 68 200X50 CB SF/P R2.0 |
| 688606 | Ø200×50 mm | 730 daN | C/R | No | This article |
Similar alternatives
- 628516Series 62AL

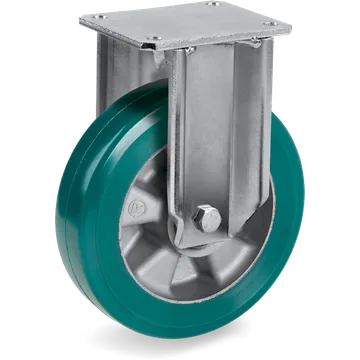

628826Series 62ALTR-Roll polyurethane fixed castor Ø200×50 mm
TR-Roll polyurethane wheels, aluminium centre
Load capacity: 700 daN

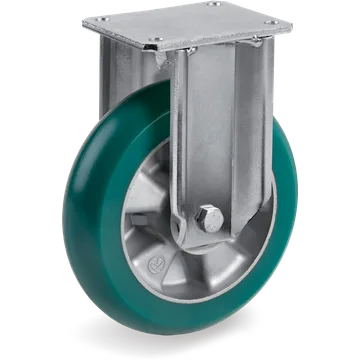

629106Series 62ERTR-Roll polyurethane fixed castor Ø200×50 mm
