714901Series 71Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Load capacity: 70 daN

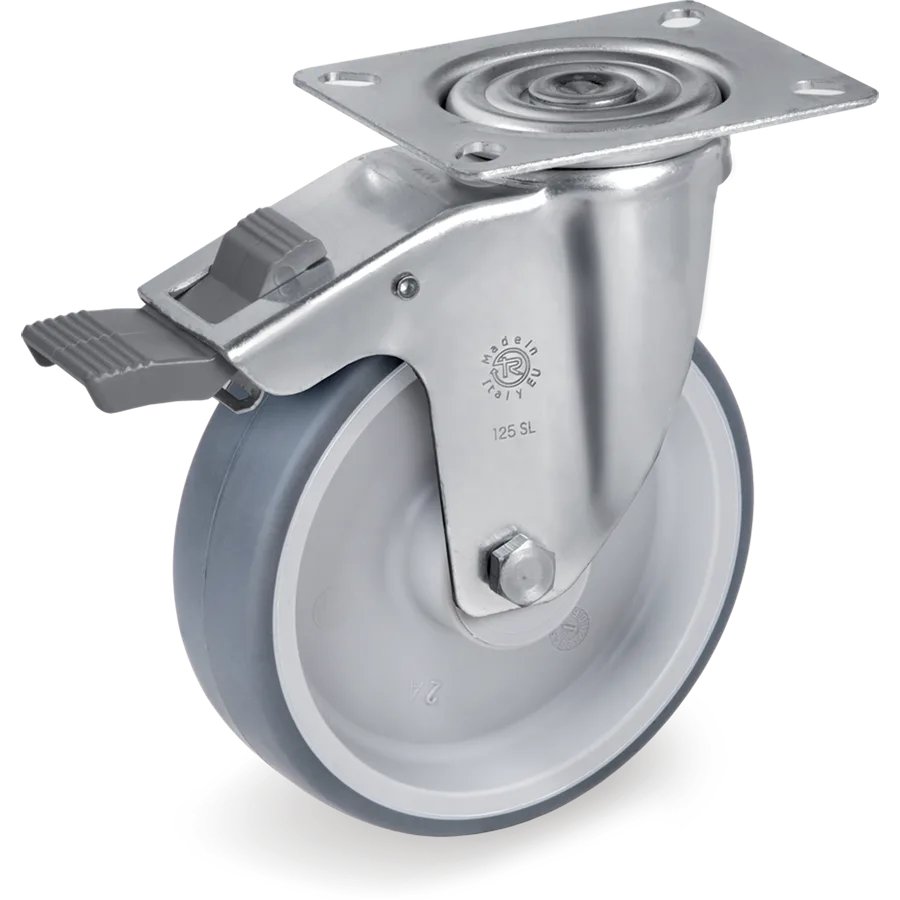

716301Representative image of the familyDrawing dimensions
- DDiameter
- 80 mm
- FWidth
- 30 mm
- HOverall height
- 110 mm
- A×BTop plate (outside)
- 95 × 80 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 8.8 mm
- ESwivel offset
- 33 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Tellure description: 71 80X30 CB SRP/SL+FA R8.0
- Diameter (D)
- Ø 80mm
- Width (F)
- 30mm
- Load at 4 km/h
- 70daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 716301
- Series
- Tellure Rôta 71
- Tread
- Thermoplastic rubber
- Diameter (D)
- 80 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 70 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 110 mm
- Top plate (A × B)
- 95 × 80 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Similar alternatives

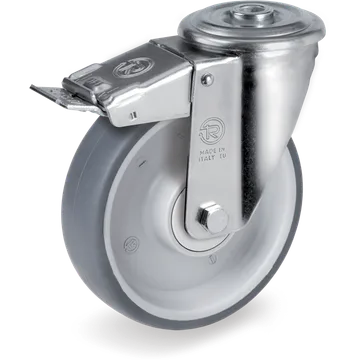

- 714901Series 71

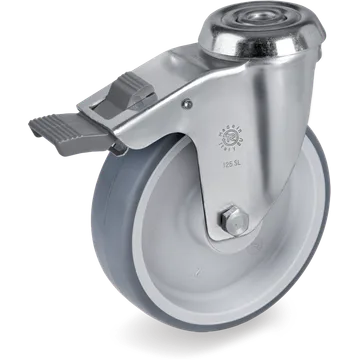

715501Series 71Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Load capacity: 70 daN

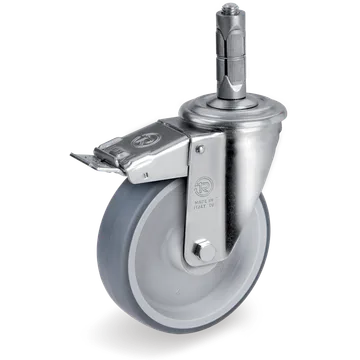

716201Series 71Thermoplastic rubber swivel castor Ø80×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Load capacity: 70 daN

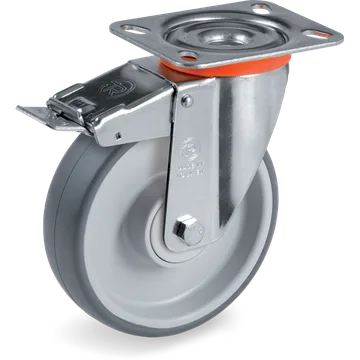

719301Series 71Thermoplastic rubber swivel castor Ø80×30 mm with brake
