719302Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 30 mm
- HOverall height
- 130 mm
- GPlate diameter
- 73 mm
- TExpanding stem diameter
- 20 mm
- FSExpanding stem length
- 65 mm
- ESwivel offset
- 35 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

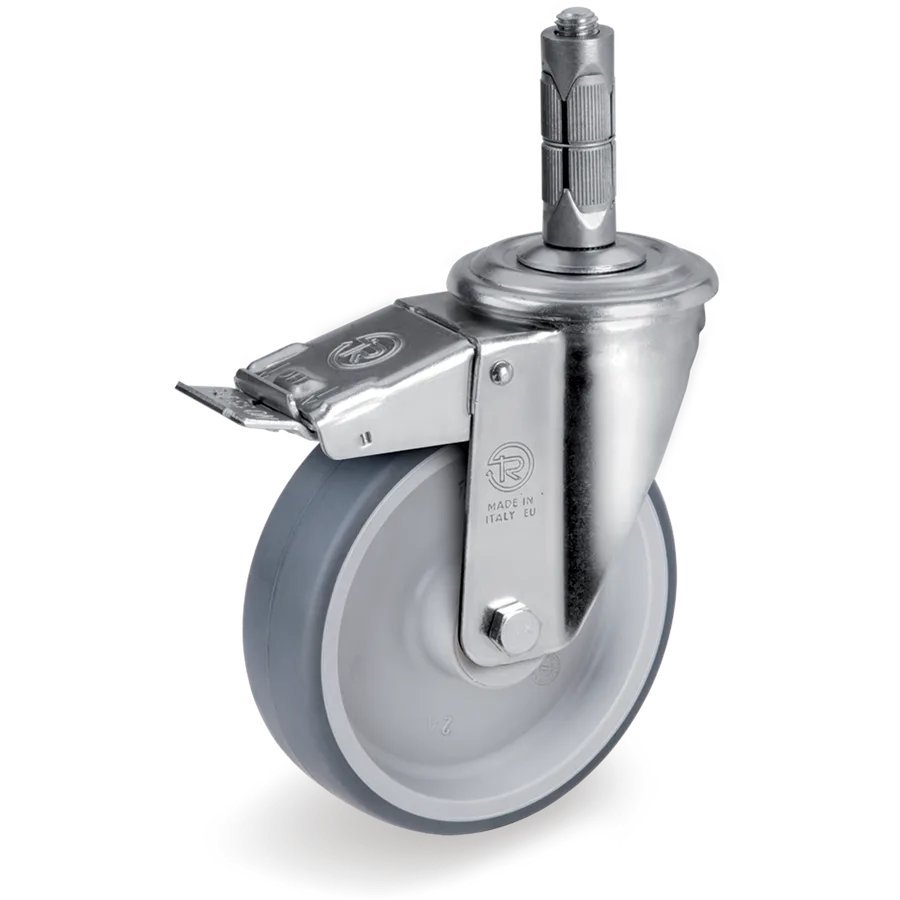

Thermoplastic rubber swivel castor Ø100×30 mm with brake
Thermoplastic rubber wheels, polypropylene centre
Tellure description: 71 100X30 CB SRC/ESP ZAMA NL 20X65+FA
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 100daN
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 719302
- Series
- Tellure Rôta 71
- Tread
- Thermoplastic rubber
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 100 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 130 mm
- Fitting
- Expanding stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
