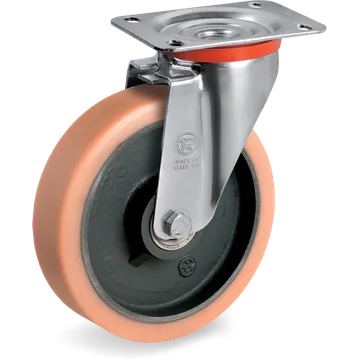

634555Series 63GH
724405Representative image of the familyDrawing dimensions
- DDiameter
- 180 mm
- FWidth
- 50 mm
- HOverall height
- 219 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 56 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

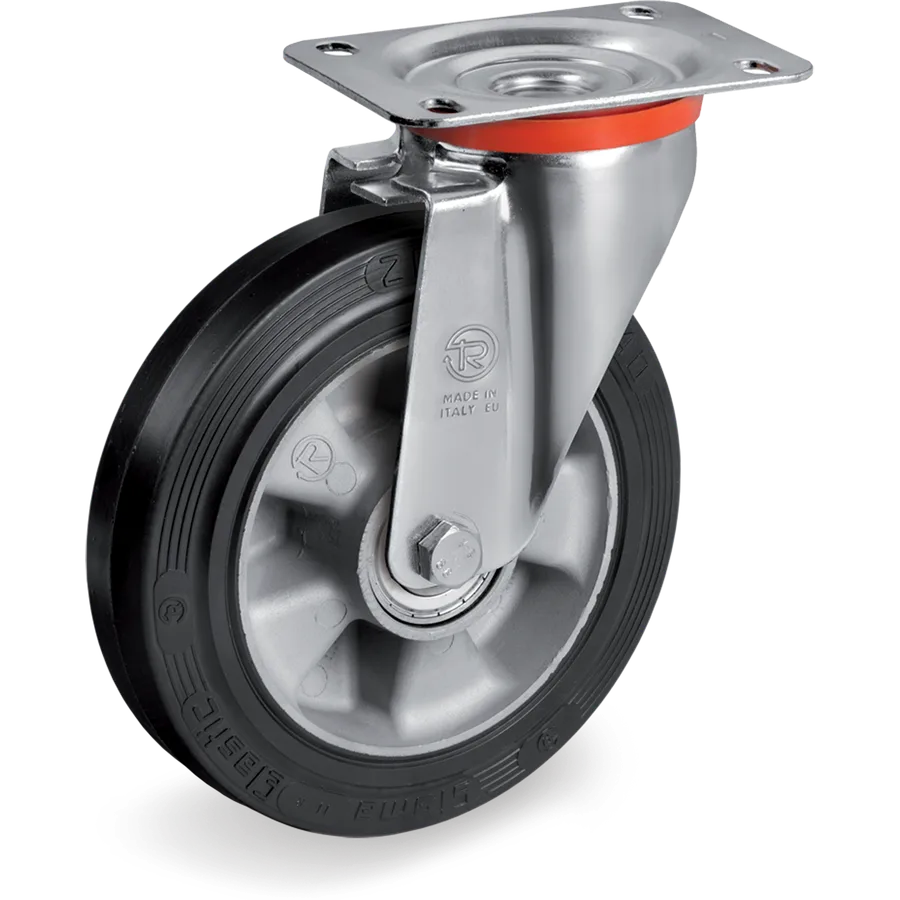

Elastic rubber swivel castor Ø180×50 mm
Sigma Elastic rubber wheels, aluminium centre
Tellure description: 72AL 180X50 CC SRP/NL R2.0
- Diameter (D)
- Ø 180mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 724405
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 180 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 219 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Sigma Elastic rubber wheels, aluminium centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 724402 | Ø100×40 mm | 180 daN | C/C 2Z | No | 72AL 100X40 CC SRP/NL R1.0 |
| 724413 | Ø125×50 mm | 230 daN | C/C 2Z | No | 72AL 125X50 CC SRP/LPG R2.0 |
| 724410 | Ø160×50 mm | 300 daN | C/C 2Z | No | 72AL 160X50 CC SRP/NL R2.0 |
| 724405 | Ø180×50 mm | 300 daN | C/C 2Z | No | This article |
| 724306 | Ø200×50 mm | 300 daN | C/C 2Z | No | 72AL 200X50 CC SRP/NL R2.0 |
Similar alternatives
- 634555Series 63GH
644555Series 64TR polyurethane swivel castor Ø180×50 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 300 daN

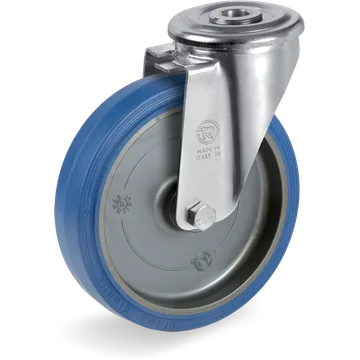

735005Series 73Elastic rubber swivel castor Ø180×50 mm
Sigma Elastic rubber wheels, polyamide 6 centre
Load capacity: 300 daN

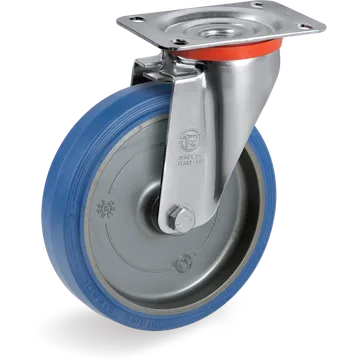

735905Series 73Elastic rubber swivel castor Ø180×50 mm
