584564Series 58TR-PowerHigh polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en hierro fundido mecánico, soporte giratorio pletina NL
Load capacity: 300 daN

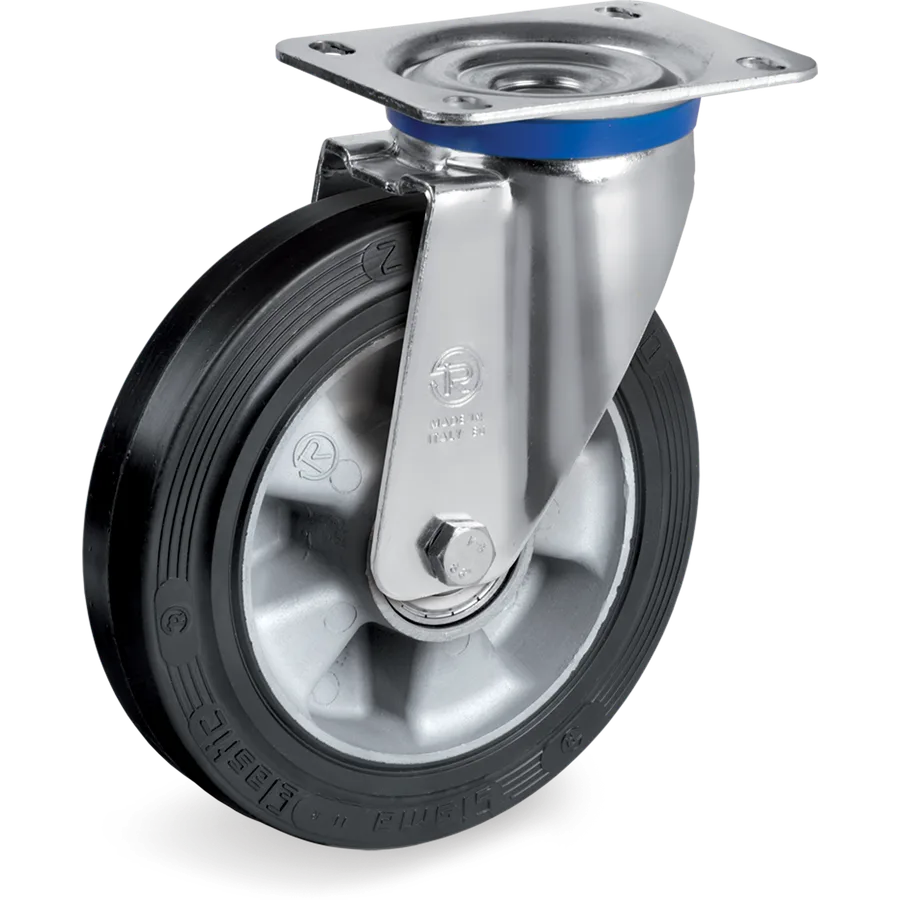

724610Representative image of the familyElastic rubber swivel castor Ø160×50 mm
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina M
Tellure description: 72AL 160X50 CC SRP/M R2.0
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 300daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 724610
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 300 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina M
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 724610 | Ø160×50 mm | 300 daN | C/C 2Z | No | This article |
| 724506 | Ø200×50 mm | 500 daN | C/C 2Z | No | 72AL 200X50 CC SRP/M R2.0 |
Similar alternatives
- 584564Series 58
604310Series 60Thermoplastic polyurethane swivel castor Ø160×50 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio taladro pasador NL
Load capacity: 300 daN
604710Series 60Thermoplastic polyurethane swivel castor Ø160×50 mm
Ruedas en poliuretano inyectado, núcleo en poliamida 6, soporte giratorio pletina NL
Load capacity: 300 daN
624410Series 62ALTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina NL
Load capacity: 300 daN
