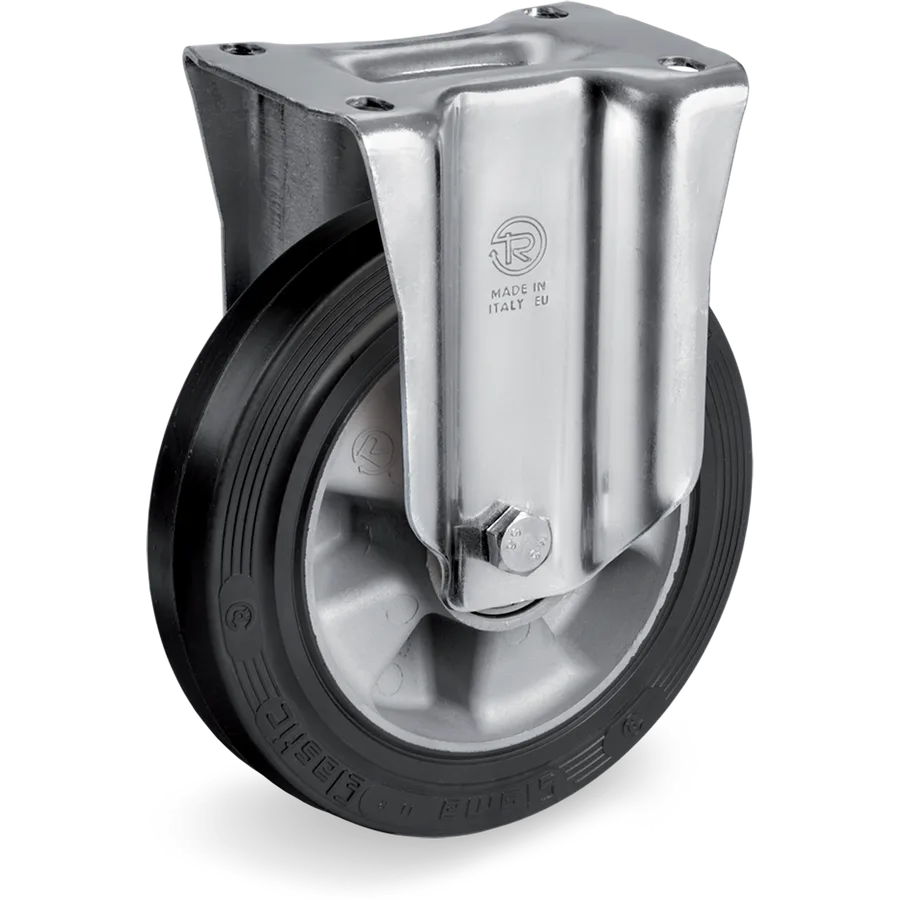

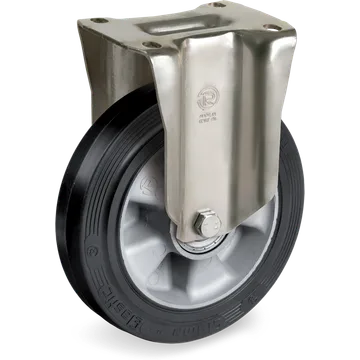

728512Series 72ALElastic rubber fixed castor Ø100×40 mm
Sigma Elastic rubber wheels, aluminium centre
Load capacity: 180 daN
726202Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 40 mm
- HOverall height
- 128 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Elastic rubber fixed castor Ø100×40 mm
Sigma Elastic rubber wheels, aluminium centre
Tellure description: 72AL 100X40 CC SF/NL R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 40mm
- Load at 4 km/h
- 180daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 726202
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 100 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 180 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 128 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Sigma Elastic rubber wheels, aluminium centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 726202 | Ø100×40 mm | 180 daN | C/C 2Z | No | This article |
| 726213 | Ø125×50 mm | 230 daN | C/C 2Z | No | 72AL 125X50 CC SF/LPG R2.0 |
| 726210 | Ø160×50 mm | 300 daN | C/C 2Z | No | 72AL 160X50 CC SF/NL-M R2.0 |
| 726205 | Ø180×50 mm | 350 daN | C/C 2Z | No | 72AL 180X50 CC SF/NL R2.0 |
| 725206 | Ø200×50 mm | 500 daN | C/C 2Z | No | 72AL 200X50 CC SF/NL-M R2.0 |
Similar alternatives
- 728512Series 72AL

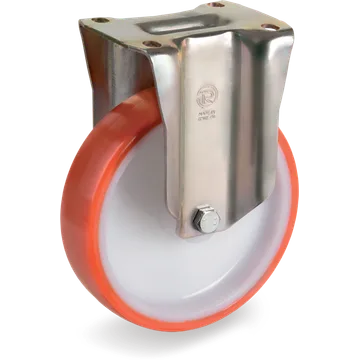

605702Series 60Thermoplastic polyurethane fixed castor Ø100×30 mm
