327302Series 32Polyamide 6 swivel castor Ø50×30 mm with brake
Polyamide 6 castors for catering and light equipment
Load: on request
327202Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 18 + 18 mm
- HOverall height
- 71 mm
- GPlate diameter
- 55 mm
- GGThrough-hole diameter
- 10 mm
- ESwivel offset
- 25.5 mm
- OBrake swing radius
- 83 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

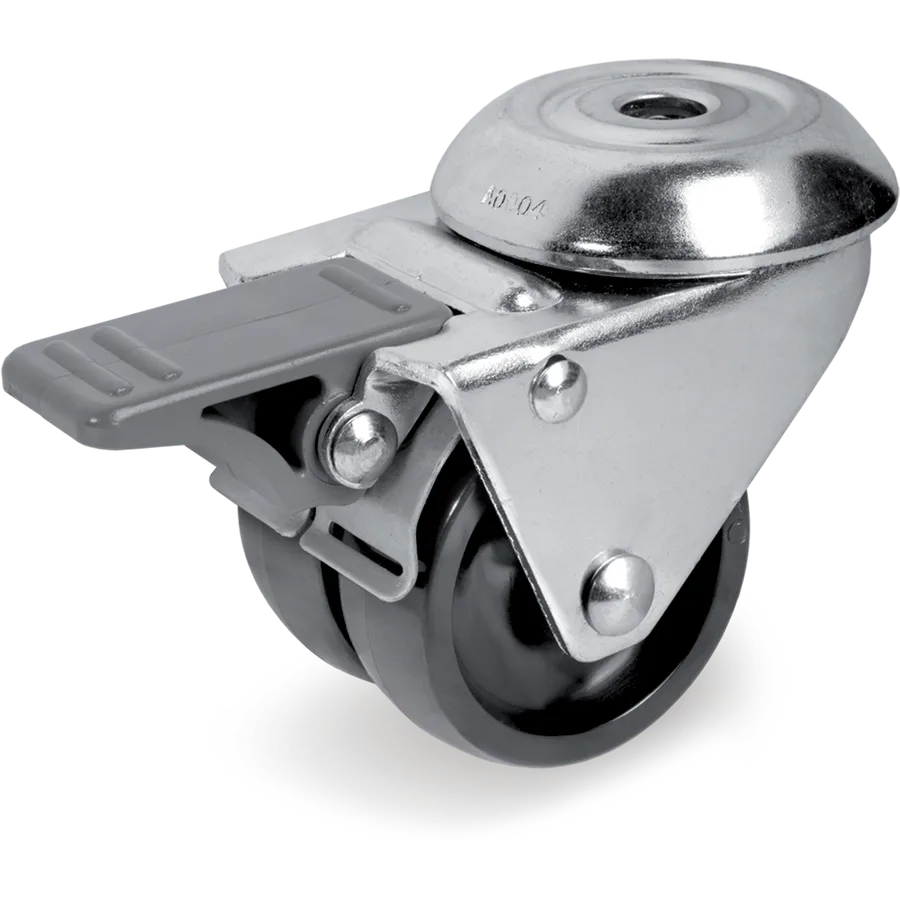

Polyamide 6 swivel castor Ø50 mm with brake
Polyamide 6 castors for catering and light equipment
Tellure description: 32 50X18+18 CB SRF 10+FA
- Diameter (D)
- Ø 50mm
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 327202
- Series
- Tellure Rôta 32
- Tread
- Polyamide 6
- Diameter (D)
- 50 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 71 mm
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
