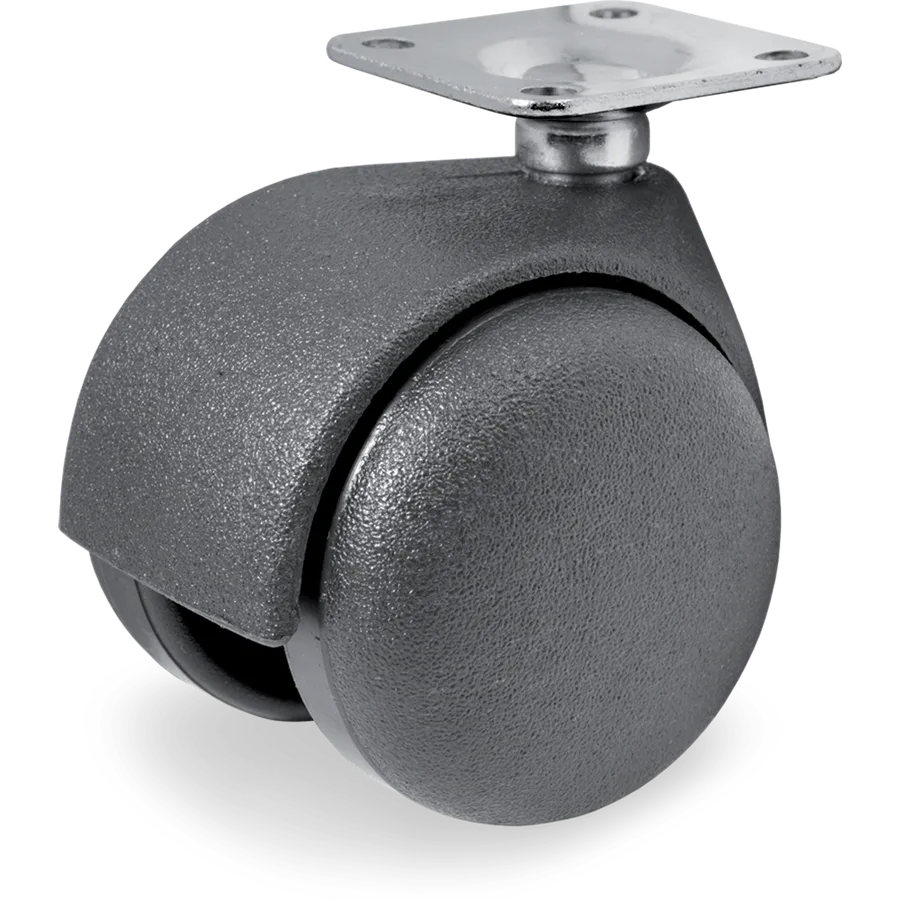

Tellure Rôta 344100 – Polyamide 6 swivel castor Ø35×39 mm344100Representative image of the family

Drawing dimensions

DDiameter
35 mm
FWidth
39 mm
HOverall height
50 mm
A×BTop plate (outside)
28 × 28 mm
AA×BBBolt hole spacing
19 × 19 mm
EEBolt hole diameter
5 mm

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

Tellure RôtaCode 344100Series 34BLK

Polyamide 6 swivel castor Ø35×39 mm

Twin polyamide 6 furniture castors, black

Tellure description: 34BLK 35X39 CB SRP

Diameter (D)
Ø 35mm
Width (F)
39mm
Tread
Polyamide 6

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
344100
Series
Tellure Rôta 34BLK
Tread
Polyamide 6
Diameter (D)
35 mm
Width (F)
39 mm
Bearing
Plain bore

Bracket

Bracket type
Swivel
Overall height (H)
50 mm
Top plate (A × B)
28 × 28 mm
Bolt hole spacing (AA × BB)
19 × 19 mm
Fitting
Top plate
Bracket material
Galvanised steel
Brake
No

Other sizes in this family

Twin polyamide 6 furniture castors, black

8 articles

CodeØ × FLoad capacityBearingBrakeTellure description
344100Ø35×39 mm—C/BNoThis article
344101Ø50×59 mm—C/BNo34BLK 50X57 CB SRP
342103Ø60×42 mm—C/BYes34GRY 60X42 CB SRP+FA
347403Ø60×42 mm—C/BNo34GRY 60X42 CB SRP
342104Ø75×48 mm—C/BYes34GRY 75X48 CB SRP+FA
347404Ø75×48 mm—C/BNo34GRY 75X48 CB SRP
342105Ø100×57 mm—C/BYes34GRY 100X57 CB SRP+FA
347405Ø100×57 mm—C/BNo34GRY 100X57 CB SRP
