323202Series 32Polyamide 6 swivel castor Ø50 mm
Polyamide 6 castors for catering and light equipment
Load: on request
347202Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 54 mm
- HOverall height
- 66 mm
- A×BTop plate (outside)
- 35 × 35 mm
- AA×BBBolt hole spacing
- 26 × 26 mm
- EEBolt hole diameter
- 4 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

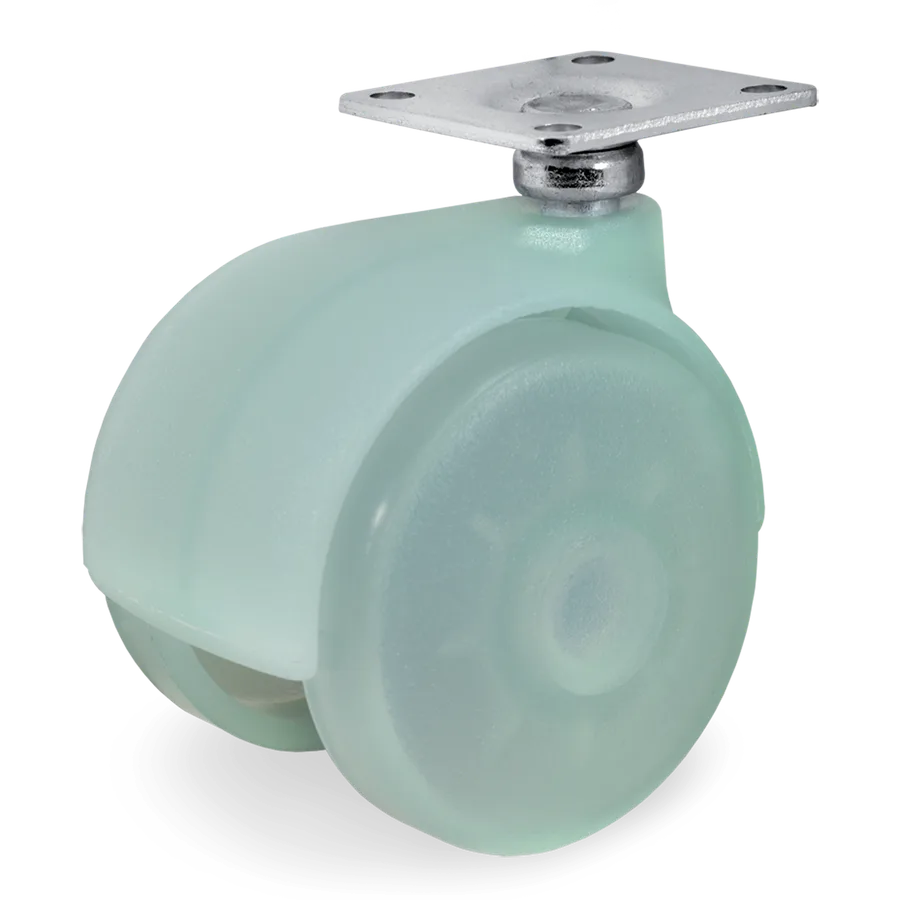

Polypropylene swivel castor Ø50×54 mm
Twin polypropylene castors for domestic use, blue
Tellure description: 34AZZ 50X47 CB SRP
- Diameter (D)
- Ø 50mm
- Width (F)
- 54mm
- Tread
- Polypropylene
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 347202
- Series
- Tellure Rôta 34AZZ
- Tread
- Polypropylene
- Diameter (D)
- 50 mm
- Width (F)
- 54 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 66 mm
- Top plate (A × B)
- 35 × 35 mm
- Bolt hole spacing (AA × BB)
- 26 × 26 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Twin polypropylene castors for domestic use, blue
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 347002 | Ø50×54 mm | — | C/B | No | 34TRP 50X47 CB SRP |
| 347202 | Ø50×54 mm | — | C/B | No | This article |
