324001Series 32Polyamide 6 swivel castor Ø40×17 mm
Polyamide 6 castors for catering and light equipment
Load: on request
363101Representative image of the familyDrawing dimensions
- DDiameter
- 40 mm
- FWidth
- 18 mm
- HOverall height
- 59 mm
- GPlate diameter
- 35 mm
- GGThrough-hole diameter
- 10 mm
- ESwivel offset
- 24 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

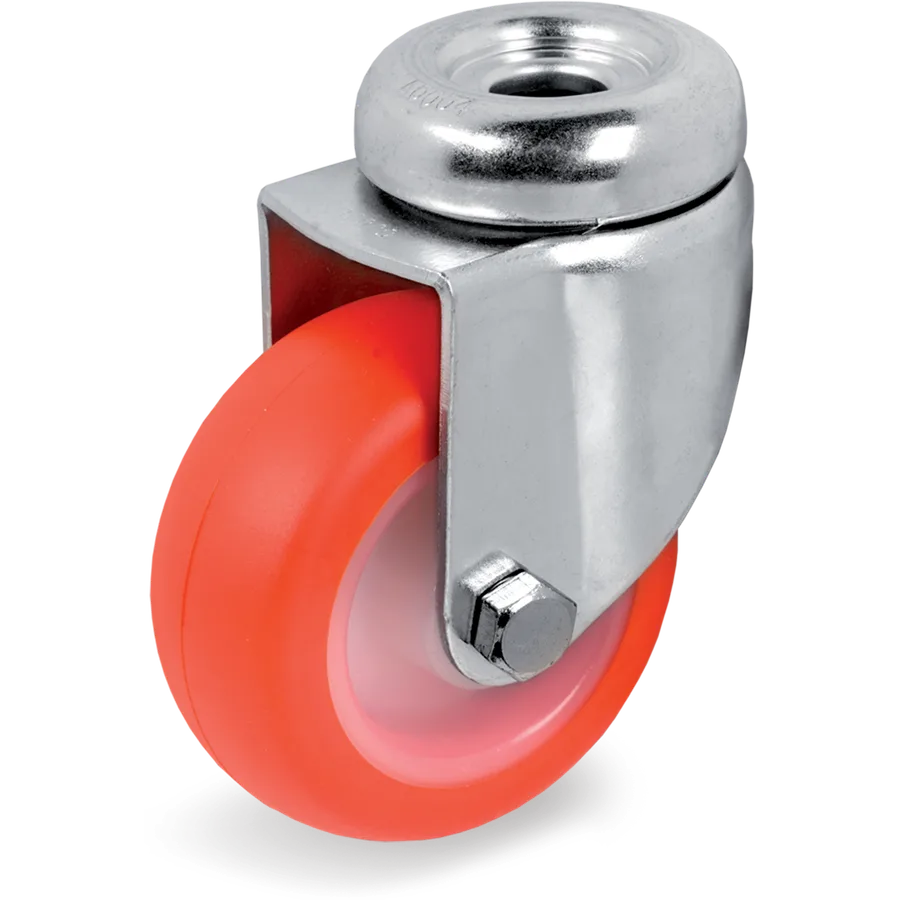

Thermoplastic polyurethane swivel castor Ø40×18 mm
Injected polyurethane castors, polyamide 6 centre, for catering
Tellure description: 36 40X18 CB SRF 10
- Diameter (D)
- Ø 40mm
- Width (F)
- 18mm
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 363101
- Series
- Tellure Rôta 36
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 40 mm
- Width (F)
- 18 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 59 mm
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Injected polyurethane castors, polyamide 6 centre, for catering
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 363100 | Ø30×18 mm | — | C/B | No | 36 30X18 CB SRF 10 |
| 363101 | Ø40×18 mm | — | C/B | No | This article |
| 363102 | Ø50×18 mm | — | C/B | No | 36 50X18 CB SRF 10 |
| 363103 | Ø60×25 mm | — | C/B | No | 36 60X25 CB SRF 12 |
| 363113 | Ø60×25 mm | — | C/B | No | 36 60X25 CB SRF 10 |
| 363104 | Ø75×23 mm | — | C/B | No | 36 75X23 CB SRF 12 |
| 363114 | Ø75×23 mm | — | C/B | No | 36 75X23 CB SRF 10 |
